Automatic Labeling Machine
Customized Bottle Sticker Applicator Machine With 150 Bottles Per Minute Speed
Customized Bottle Sticker Applicator Machine With 150 Bottles Per Minute Speed Product Parameters of Sticker Labeling Machine Model SED-YDT Capacity (pcs/min) 20-230 Driving Mode German Avery Labeling engine Labeling accuracy ±1mm Labeling Speed(m/min) ≤35 Label Specification adhesive sticker, transparent or opaque Suit bottle size Can customized Suit label size Height 20-160mm Length 25-300mm The inner diameter or label roll 76mm(min) The outer diameter of label roll 350mm(max) Power 550w Voltage can customized, 110V/220V/380V Machine size 1800x80x1500mm The Scope of A
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-YDT |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Customized Bottle Sticker Applicator Machine With 150 Bottles Per Minute Speed
- Speed
- 50-230 bottles per minute
- Label accuracy
- ±1 mm
- Driven motor
- Stepping Motor
- Material
- Stainless steel
- Dimension
- 1800(L)×700(W)×1270(H) mm
- Item Name
- Automatic Labeling Machine
- Power Supply
- 220V 50HZ Single phase(Customized)
- key word
- Sticker Labeling Machine
Customized Bottle Sticker Applicator Machine With 150 Bottles Per Minute Speed
Product Parameters of Sticker Labeling Machine
| Model | SED-YDT |
| Capacity (pcs/min) | 20-230 |
| Driving Mode | German Avery Labeling engine |
| Labeling accuracy | ±1mm |
| Labeling Speed(m/min) | ≤35 |
| Label Specification | adhesive sticker, transparent or opaque |
| Suit bottle size | Can customized |
| Suit label size | Height 20-160mm Length 25-300mm |
| The inner diameter or label roll | 76mm(min) |
| The outer diameter of label roll | 350mm(max) |
| Power | 550w |
| Voltage | can customized, 110V/220V/380V |
| Machine size | 1800x80x1500mm |
The Scope of Application
The model SED-YDT Labeling machine suit for differnet size round shape products, such as bottle, jars ,cans in food, medicine, daily chemical and other light industries.
Feature of Sticker Labeling Machine

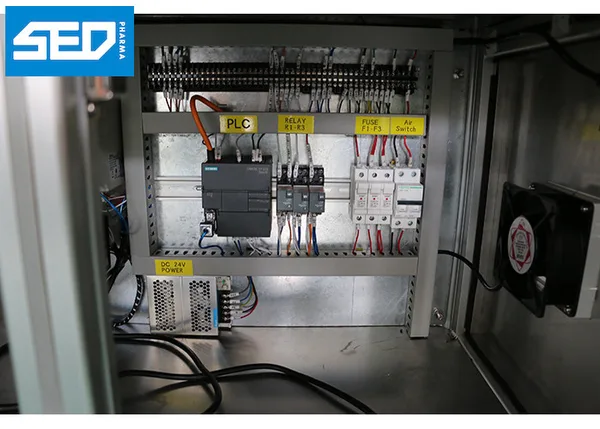

1) Control system: Use SIEMENS brand PLC control system, with high stable operation and extremely low failure rate.
2) Operation system: The man machine control 7 inch touch screen, directly visual interface easy operation, rich with help function and fault display function.
3) Check system: Use German LEUZE check label sensor, automatic check label station, stable and convenient don’t have much higher requirement for worker.
4) Send label system: German Avery labeling engine control system, stable with high speed.

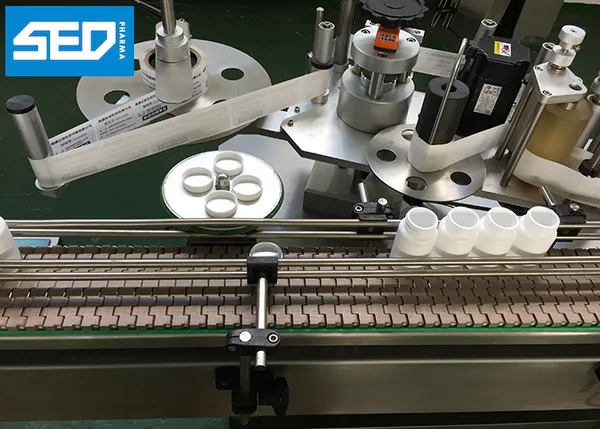

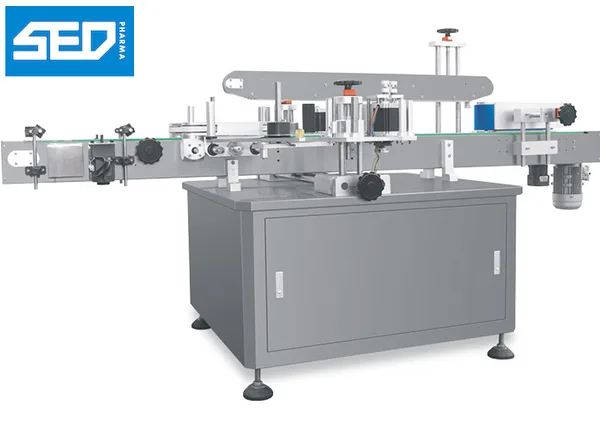

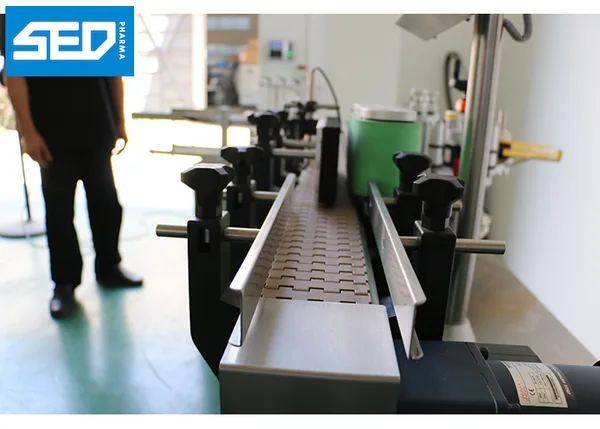

Products Show of Sticker Labeling Machine
Application of Sticker Labeling Machine
