Automatic Cartoning Machine

Continuous Fully Automatic Cartoning Machine With PLC Touch Screen,

Name: Continuous Fully Automatic Cartoning Machine With PLC Touch Screen,
Brand: SED Pharma

Product Description of Auto Cartoner Machine Item Technical parameters Encasing speed 260 boxes/min Box Quality requirement 250-350g/M2[Base on carton size] Dimension range(L×W×H) (70-180)mm×(35-80)mm×(14-50)mm Leaflet Quality requirement 60-70g/M2 Unfolded leaflet specification(L×W) (80-250)mm×(90-170)mm Fold range(L×W) [1-4]Fold Compressed air Working pressure ≥0.6mpa Air consumption 160-200L/min Power supply 380V 50HZ Motor power 5kw Machine dimension(L×W×H) 6800mm×1600mm×1860mm Machine weight 3400kg Feature of Auto Cartoner Machine 1. International famous brand of

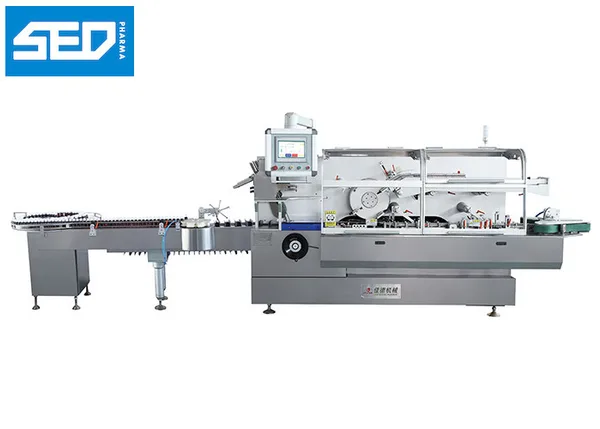

Continuous Fully Automatic Cartoning Machine With PLC Touch Screen,, view 1

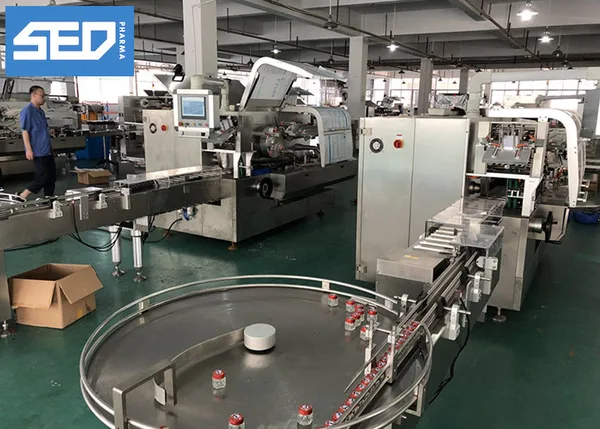

Continuous Fully Automatic Cartoning Machine With PLC Touch Screen,, view 2

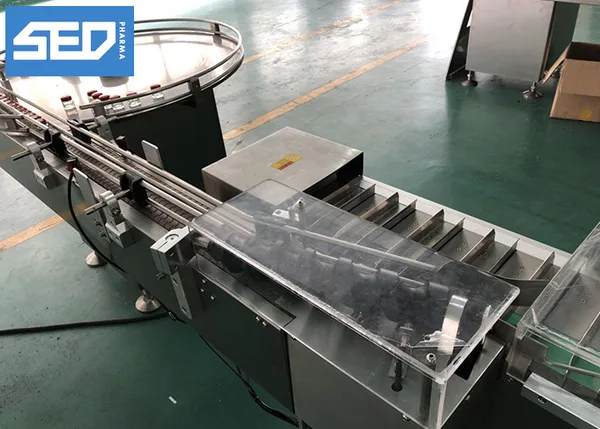

Continuous Fully Automatic Cartoning Machine With PLC Touch Screen,, view 3

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-260GZH

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	40 Days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets Per Month

Request configuration

Configuration and product details

Technical overview

Name: Continuous Fully Automatic Cartoning Machine With PLC Touch Screen,
Condition: New
Packaging Type: Cartons
Application: Medical
Voltage: 380v/50hz
Speed: 260 Boxes Per Minute
Control Mode: Touch Screen And PLC Control
Suitable Carton Size: (65-120)mm×(30-60)mm×(30-60)mm
material: stainless steel
key word: Automatic Cartoning Machine

Product Description of Auto Cartoner Machine

Item		Technical parameters
Encasing speed		260 boxes/min
Box	Quality requirement	250-350g/M2[Base on carton size]
	Dimension range(L×W×H)	(70-180)mm×(35-80)mm×(14-50)mm
Leaflet	Quality requirement	60-70g/M2
	Unfolded leaflet specification(L×W)	(80-250)mm×(90-170)mm
	Fold range(L×W)	[1-4]Fold
Compressed air	Working pressure	≥0.6mpa
	Air consumption	160-200L/min
Power supply		380V 50HZ
Motor power		5kw
Machine dimension(L×W×H)		6800mm×1600mm×1860mm
Machine weight		3400kg

Feature of Auto Cartoner Machine

1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc

2. Adopt human-machine operation system.

3. Automatically displaying device for trouble, speed and finished products counting.

4. Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.

5. No products not suction leaflet, no leaflet not suction carton

Show of Auto Cartoner Machine

Continuous Fully Automatic Cartoning Machine With PLC Touch Screen, product detail

Application of Auto Cartoner Machine

Automatic High speed continuous cartoning machine is new model which innovation design base on bringing in foreign advanced technology, also strictly according to pharmaceutical industry “GMP “standard to manufacture.

With high efficiency, high performance production capacity, leaflet folding and conveying, carton opening and forming, posterior pushing structure and related technology all reach Europe and USA standards.

Continuous Fully Automatic Cartoning Machine With PLC Touch Screen, product detail
