Capsule Filling Machine

Compact User-friendly Automatic Capsule Filling Machine with High Accuracy for 00#-4# Capsules

Name: Compact User-friendly Automatic Capsule Filling Machine with High Accuracy for 00#-4# Capsules
Brand: SED-Pharma

Pharmacy Herbal Powder Capsule Filling Machine Product Description The SED-200J-H Automatic Capsule Filling Machine is an automatic hard capsule filling machine designed for small to medium-scale production, ideal for hospitals, research institutes, labs, and small pharmaceutical factories. Compact and user-friendly, it integrates capsule orientation, separation, filling, rejection, and locking into one efficient process, making it a perfect upgrade from semi-automatic machines. Technical Parameters Model SED-200J-H Capacity 200 capsules/min Filling Material Powder, Granule

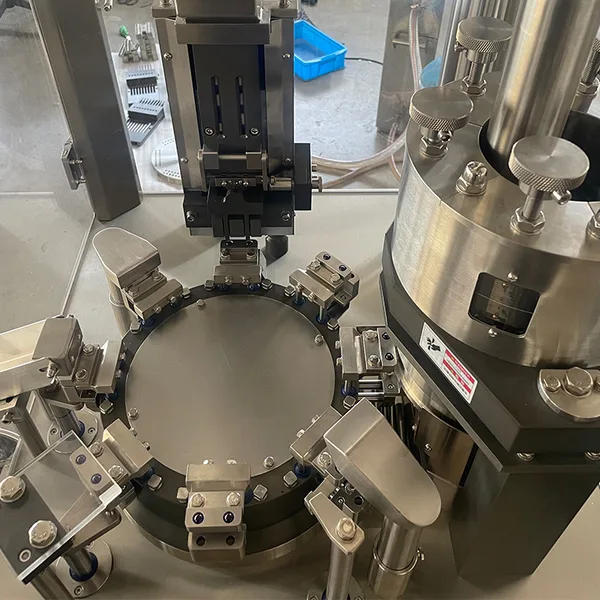

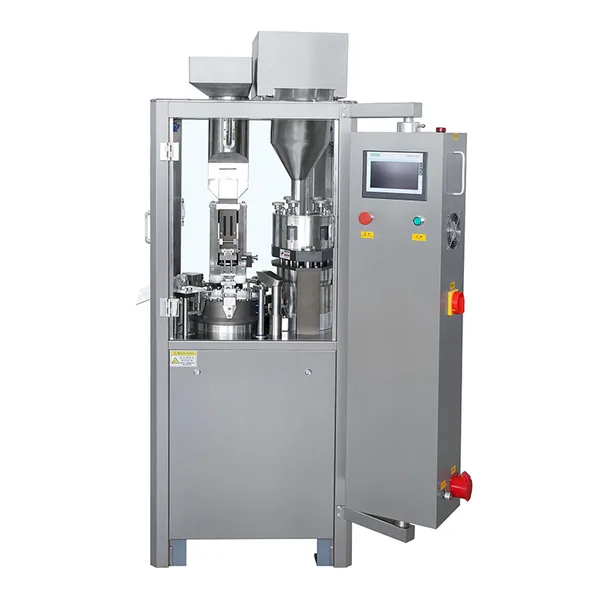

Compact User-friendly Automatic Capsule Filling Machine with High Accuracy for 00#-4# Capsules, view 1

Compact User-friendly Automatic Capsule Filling Machine with High Accuracy for 00#-4# Capsules, view 2

Compact User-friendly Automatic Capsule Filling Machine with High Accuracy for 00#-4# Capsules, view 3

Product Details:

Place of Origin:	China
Brand Name:	SED-Pharma
Certification:	CE
Model Number:	SED-200J-H

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Wooden Case
Delivery Time:	35 Days after receiving the deposit
Payment Terms:	T/T,L/C,,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: Pharmacy Herbal Powder Capsule Filling Machine
Productivity: 200 capsules/min
Size of capsule: 00#-4# capsule
Total power: 3.75KW
Capsule sowing accuracy: ≥99.5%
Mold hole: 2
Overall dimensions: 800mm (L) x 970mm(W) x 1870mm(H)
Weight: 600Kg
material: stainless steel
key word: Powder Capsule Filling Machine Automatic Capsule Filling Machine

Pharmacy Herbal Powder Capsule Filling Machine

Product Description

The SED-200J-H Automatic Capsule Filling Machine is an automatic hard capsule filling machine designed for small to medium-scale production, ideal for hospitals, research institutes, labs, and small pharmaceutical factories. Compact and user-friendly, it integrates capsule orientation, separation, filling, rejection, and locking into one efficient process, making it a perfect upgrade from semi-automatic machines.

Technical Parameters

Model	SED-200J-H
Capacity	200 capsules/min
Filling Material	Powder, Granules
Die Hole Number	2
Power Supply	380V 50Hz 3P
Total Power	3.75KW
Application	00#-4# capsule
Filling Variation	±3% - ±4%
Noise	≤78dB(A)
Qualified Rate	≥99.5%
Overall Dimension	800mm (L) x 970mm(W) x 1870mm(H)
Weight	600kg

Key Features

Small in size, light in weight, energy savings, easy to operate and clean
Opening and locking of capsule can be controlled automatically, which is safe and convenient
Equipped with jog control system for easy cleaning, loading and unloading of upper and lower dies
Gate control security system and mechanical failure security system with automatic alarm and shutdown
Automatic alarm and shutdown when lacking empty capsules or powder
HMI with counting and displaying functions, capable of linking with printer for production information
Plane cams running in double rails mode improves operation accuracy and prevents collision

Operation Instructions

Press the green button in the power switch to turn on the machine
Slowly adjust the vibration intensity adjustment knob clockwise to achieve suitable vibration
Place capsule shells and caps into their respective sorting trays in equal numbers
Ensure capsules fall into round holes with openings facing upwards
Use connecting plates to properly position capsule shells and caps

Usage Precautions

Frequently check and tighten all screws to prevent failure and damage
Protect plexiglass parts from direct sunlight, high temperature, and heavy objects
Ensure proper grounding of electrical enclosure and body for safety
Clean residual medicine daily and maintain machine hygiene
