Carton Top Surface Automatic Labeling Machine , 220V 50HZ Label Sticking Machine



Carton Top Surface Automatic Labeling Machine , 220V 50HZ Label Sticking Machine



Product Parameters of Labeling Machine

Model	SED-PT
Capacity (pcs/min)	20-200
Driving Mode	Servo motor
Labeling accuracy	±1mm
Labeling Speed(m/min)	≤35
Label Specification	adhesive sticker, transparent or opaque
Suit bottle size	Can customized
Suit label size	Height 20-160mm Length 25-300mm
The inner diameter or label roll	76mm(min)
The outer diameter of label roll	350mm(max)
Power	550w
Voltage	can customized, 110V/220V/380V
Machine size	1800x80x1500mm
voltage	110v/220v/380v

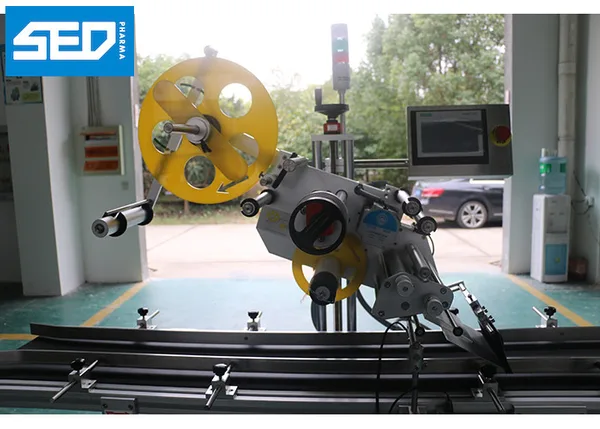

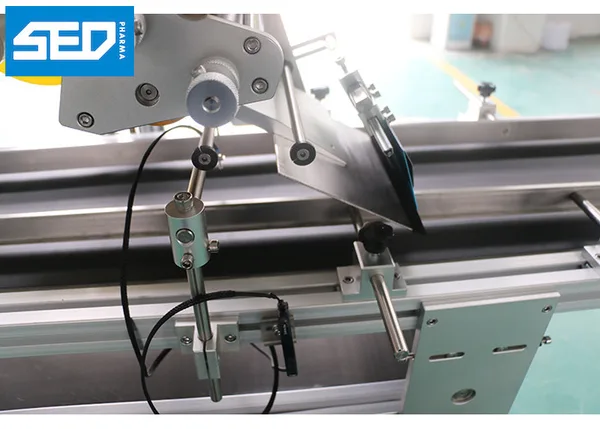

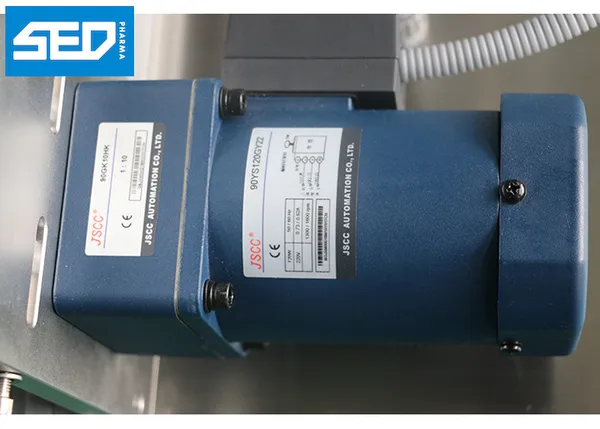

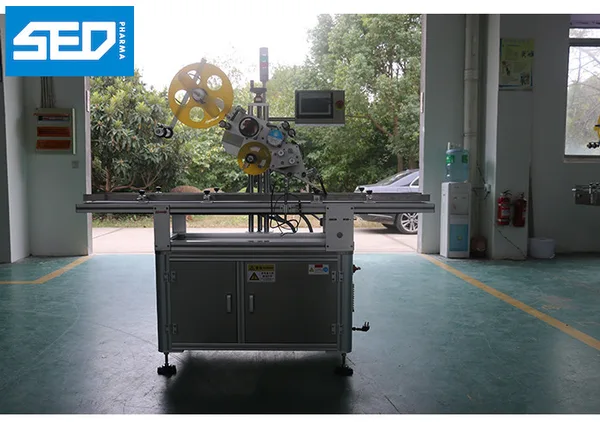

Products Show of Labeling Machine



 Characteristics of Labeling Machine

1) Control system: Use SIEMENS brand PLC control system, with high stable operation and extremely low failure rate.



2) Operation system: The man machine control 7 inch touch screen, directly visual interface easy operation, rich with help function and fault display function.



3) Check system: Use German LEUZE check label sensor, automatic check label station, stable and convenient don't have much higher requirement for worker.



4) Send label system: German Avery labeling engine control system, stable with high speed.



5) Alarm function: Such as label spill, label broken or other malfunction during machine working all will alarm and stop working.



6) Machine Material: Machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.



7) Low voltage circuit all use the German Schneider brand.



The Scope of Application:



Top Surface Labeling Machine suit for different kind products that need labeling on top surface or on the corner, such as box, carton, bags and so on.
