Capsule Filling Machine
Automatic Production Type Capsule Filling Machine
Automatic Production Type Capsule Filling Machine Product Overview of Capsule Filling Machine SED-1200J adopt PLC control system, human-machine interface, when running malfunction or lack of stuff, automatic alarm, malfunction display, automatic dismiss alarm. And with functions of password setup, touching screen display, automatic parameter setup, data printing, reset, etc. The jump-start axed, cam and other main damageable parts all adopt imported materials. And the machine is suitable for Powder, Granular and Pellet filling, one hour for 12,000 capsules, special fo
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-1200J |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 40 Working days after receiving advanced payment or original L/C |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets Per Month |
Configuration and product details
Technical overview- Name
- Automatic Production Type Capsule Filling Machine
- Speed
- 1200 Capsules Per Minute
- Power
- 5.5KW
- Suitable Capsules Range
- 00,0,1,2,3,4,5
- Noise
- ≤75dB(A)
- Mould Bores Quantity
- 9 pcs
- Dimension
- 1020×870×1980mm
- key word
- Powder Capsule Filling Machine Automatic Capsule Filling Machine
Automatic Production Type Capsule Filling Machine
Product Overview of Capsule Filling Machine
SED-1200J adopt PLC control system, human-machine interface, when running malfunction or lack of stuff, automatic alarm, malfunction display, automatic dismiss alarm. And with functions of password setup, touching screen display, automatic parameter setup, data printing, reset, etc.
The jump-start axed, cam and other main damageable parts all adopt imported materials. And the machine is suitable for Powder, Granular and Pellet filling, one hour for 12,000 capsules, special for Capsule size from00# to 5#.
Detailed Parameters of Capsule Filling Machine
| Model: | SED-1200J |
| Capacity | 1200capsules/minute |
| Manchine suitable for: | Capsule Size#00 to 5 |
| Power supply: | 380V 50Hz (it can be changed depend on your requirement) |
| Power consume: | 5.5kw |
| Noise standard: | ≤75dB(A) |
| Weight: | 1100kgs |
| Overail dimension: | 1020×870×1980mm |
Main Features of Capsule Filling Machine
1. It has been improved the inner design turret, and imports beeline bearings for each machine from Japan directly, so that it can be sure a longer usage-life and precision of machine.
2. The working station cam runs under the good lubricating condition, and maintains the inner lubrication of cam slot to a full extent, increasing the pressure pulverization oil pump, thus extends the operation life of the spare parts.

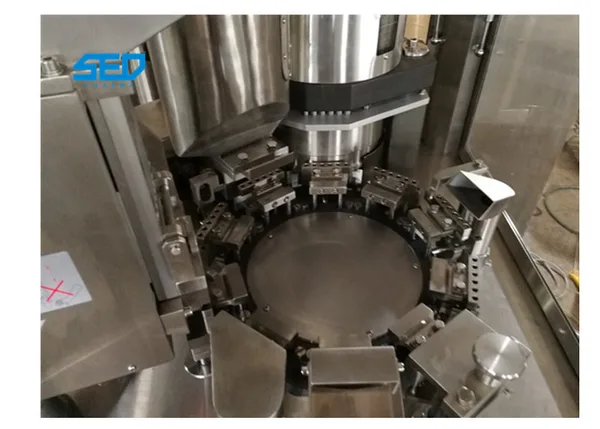

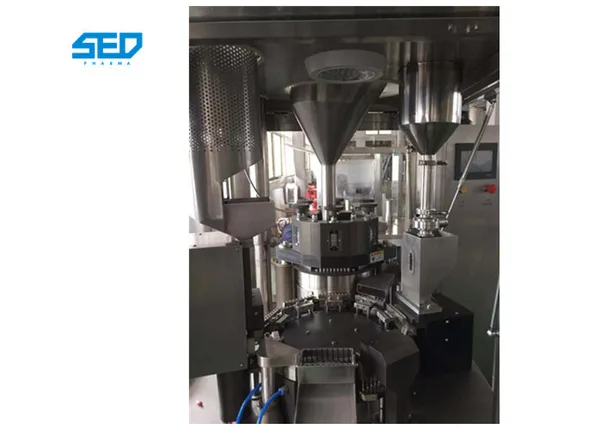

Product Show of Capsule Filling Machine
Application of Capsule Filling Machine
