Automatic Labeling Machine For Plastic Round Bottle



Product Overview of Labeling Machine



This automatic labeling machine is equipped with a PLC control panel which helps you to easily adjust the job data. Can be used for single- or double-sided labelling of round bottles. It is made with high quality materials and imported machine parts. This machine is widely used in food, beverage, cosmetics, daily chemical and other industries.



Product Parameters of Labeling Machine

Product Name	Fully automatic Round bottle labeling
Product model	SED-YDT-2
Labeling accuracy	±1mm
Labeling speed	50-120 bottles / min
Applicable bottle type	Round bottle: height 40-180mm, width < 100mm
Tag range	Width 15-100mm, length 20-320mm
Rated voltage	220V 50HZ
Rated power	0.9KW
Host weight	300kg

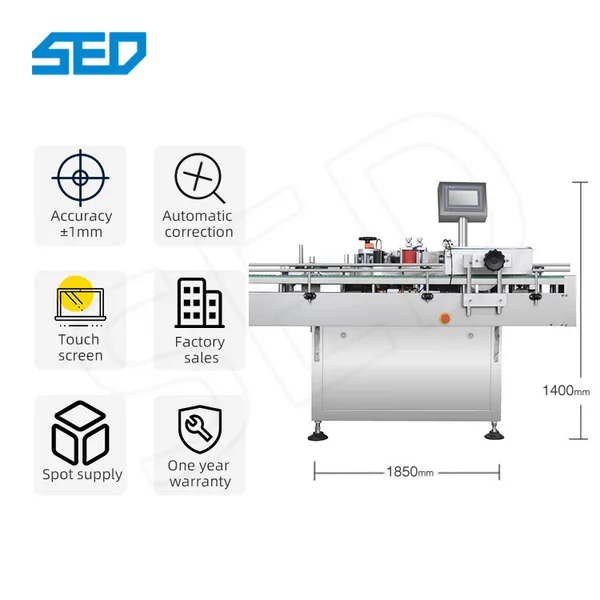

Outline size	1850×730×1400mm
Certification	CE



Feature of Labeling Machine



1. All labeling machines are made of SUS304 stainless steel

2. The labeling machine can deliver the bottle table

3. The labeling machine avoids many problems such as manual labeling, crooked sticking, bubbles, wrinkling, and irregular labeling.

4. The labeling machine is equipped with an electric eye, which improves the cutting accuracy of label materials.

5. The labeling machine is controlled by equivalent PLC, positioning module, stepper motor and sensor electrical control system.

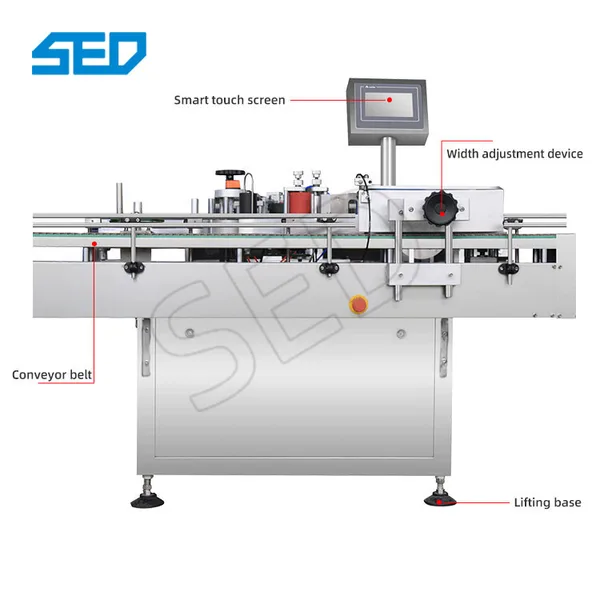

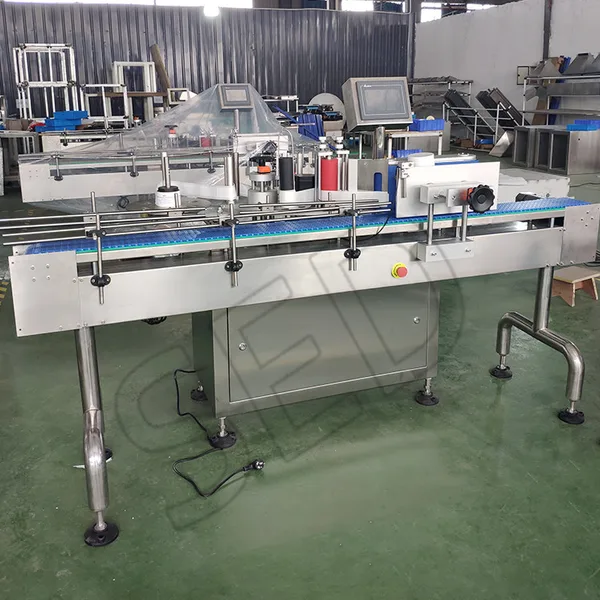

Show of Labeling Machine





Application of Labeling Machine

1. Used for labels: self-adhesive labels, self-adhesive films, electronic supervision codes, bar codes, etc.

2. Applicable products: labeling on the side plane, side sweep surface and peripheral surface is required.

3. Industry: widely used in cosmetics, daily chemicals, electronics, medicine, metal, plastics and other industries.

4. Application examples: Labeling of flat bottles of Head & Shoulders shampoo, labeling of flat bottles of Shell lubricating oil, labeling of fresh wine.
