Automatic Cartoning Machine
Automatic Cookies Cartoning Machine Chocolate Chip Cookies Box Packing Machine Cookies Carton Packing Machine
Product Parameters of Auto Cartoner Machine Item Parameters Encasing speed 30-100 boxes /min Box Quality requirement 250-350g/m2[Base on carton size] Dimension range(L×W×H) (70-180)mm×(35-85)mm×(14-50)mm Leafle Quality requirement 60-70g/m2 Unfolded leaflet specification (80-250)mm×(90-170)mm Fold range [1-4]Fold Compressed air Working pressure ≥0.6mpa Air consumption 120-160L/min Power supply 220V 50HZ Main motor power 0.75kw Machine dimension(L×W×H) 3100mm×1100mm×1550mm Machine weight 1400kg Feature of Auto Cartoner Machine 1. International famous brand of electric
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-100WZH |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 40 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets Per Month |
Configuration and product details
Technical overview- Name
- Automatic Cookies Cartoning Machine Chocolate Chip Cookies Box Packing Machine Cookies Carton Packing Machine
- Carton Quality Requirement
- 300-350g/m2
- Suitable Carton Size
- (65-120)mm×(30-60)mm×(30-60)mm
- Unfolded leaflet specification
- (80-250)mm×(90-170)mm
- Folded leaflet specification
- (90-170)mm×(25-40)mm
- Working pressure
- ≥0.6Mpa
- Air consumption
- 120-160L/min
- Weight
- 1200KGS
- material
- stainless steel
- key word
- Automatic Cartoning Machine
Product Parameters of Auto Cartoner Machine
| Item | Parameters | |
| Encasing speed | 30-100 boxes /min | |
| Box | Quality requirement | 250-350g/m2[Base on carton size] |
| Dimension range(L×W×H) | (70-180)mm×(35-85)mm×(14-50)mm | |
| Leafle | Quality requirement | 60-70g/m2 |
| Unfolded leaflet specification | (80-250)mm×(90-170)mm | |
| Fold range | [1-4]Fold | |
| Compressed air | Working pressure | ≥0.6mpa |
| Air consumption | 120-160L/min | |
| Power supply | 220V 50HZ | |
| Main motor power | 0.75kw | |
| Machine dimension(L×W×H) | 3100mm×1100mm×1550mm | |
| Machine weight |
1400kg |
|
Feature of Auto Cartoner Machine
2. Adopt human-machine operation system.
3. Automatically stop when machine is overload.
4. Automatically reject lacking of package product and leaflet.
5. Automatically display trouble, Alarm and count finished products.
6. Stable performance,operation is easy.

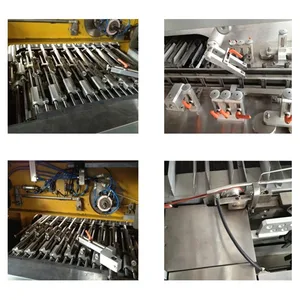

Show of Automatic Cartoner
Application of Auto Cartoner Machine
This equipment is new model developping base on integrated domestic and foreign vanguard technology .
It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.
