Automatic Coffee Capsule Filling Packing Machine

Automatic Coffee Capsule Filling Packing Machine

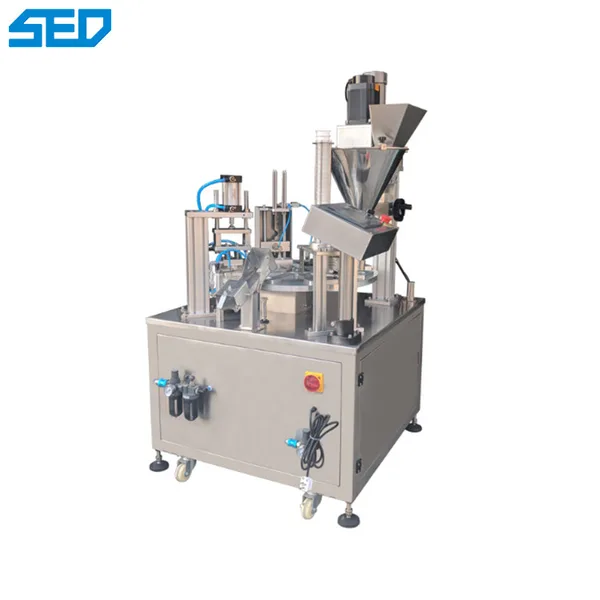

Product Description of Coffee Capsule Filling Machine



Coffee capsule filling machine is a full automatic packaging production line. This machine adopts stainless steel fuselage, accords with hygienic requirements and cleanliness.

And it is specialized for producing coffee capsule to be filled and sealed.

It can be applied to nespresso, k cup from automatic lift cups, quantitative filling, heat sealing system, and a series of processes can be automatically completed.

We possess more than ten years experience of production in this line. The advanced technology and equipment in the industry adopt the famous brand control system and pneumatic components in Japan, Taiwan and China, which has the characteristics of low failure rate, stable operation and long service life.



Product Parameters of Coffee Capsule Filling Machine

Model:	SED-1KJ-G
Capacity	1000-1200 cups per hour(2cups)
Power Supply	1.1kw
Overall Dimensions:	120*120*180 cm
Net Weight:	380Kg



Application of Coffee Capsule Filling Machine

Main function and structure

Illustration	Description
	Auto load cup station   Composed the aluminum and ss to make sure the cup will load to the mold hole correctly.
	[Screw powder filling system]:   Screw powder filling, with fast filling speed and can set up the measure weight on the touch screen
	[Automatic pre-cut or lid loading system]: Using the starting device to load the lid or cover automatically. Position can be adjusted and controlled automatically.
	[Sealing system]:   Including heating, thermostat control parts, temperature sensors, sealing devices, heat sealing plates, pneumatic seals and motion execution parts
	[Electric control system]: Composed of control circuit, power supply circuit, electrical protection, safety emergency stop device and so on. PLC programmable control
