Capsule Filling Machine

Automatic Capsule Filling Machine with Touch-Screen and PLC Control for Powder and Pallet Filling CE Certified

Name: Automatic Capsule Filling Machine with Touch-Screen and PLC Control for Powder and Pallet Filling CE Certified
Brand: SED-pharma

Automatic Capsule Filling Machine for Pharma Health Product Product Description A fully automatic capsule filling machine is professional equipment designed for pharmaceutical, health product, and hospital preparation applications. It utilizes hole-type filling with intermittent operation to automatically complete capsule separation, filling, waste capsule removal, locking, and finished product output. This machine offers safe, hygienic operation with high precision, strong sealing, low noise levels, and high output capacity to meet modern production requirements. Technical

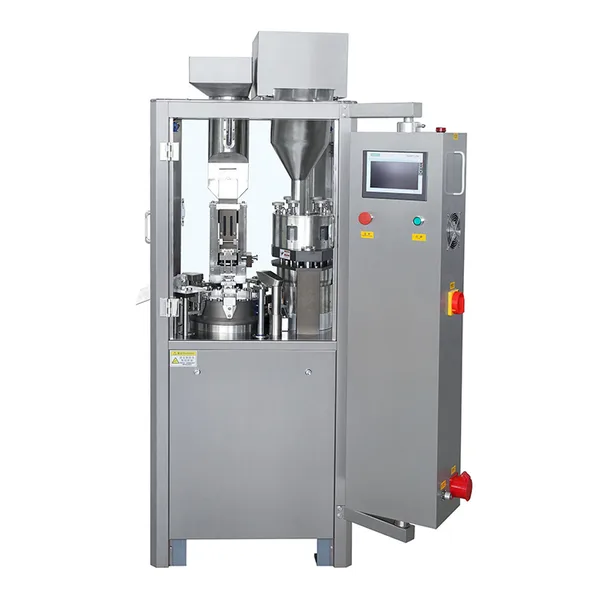

Automatic Capsule Filling Machine with Touch-Screen and PLC Control for Powder and Pallet Filling CE Certified, view 1

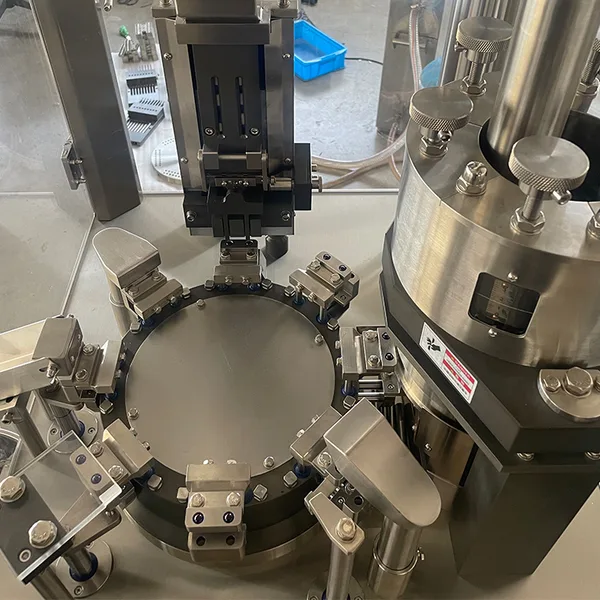

Automatic Capsule Filling Machine with Touch-Screen and PLC Control for Powder and Pallet Filling CE Certified, view 2

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	SED-pharma
Certification:	CE
Model Number:	SED-200J-H

Payment & Shipping Terms:

Minimum Order Quantity:	>=1 Pieces
Packaging Details:	Export standard packing
Delivery Time:	Est. Time(days)-15-To be negotiated
Payment Terms:	T/T,L/C,,Cash
Supply Ability:	30 Piece/Pieces per Month

Request configuration

Configuration and product details

Technical overview

Name: Automatic Capsule Filling Machine for Pharma Health Product
Capacity: 200 capsules/min
Power Consumption: 3.75Kw
Material: stainless steel
Filling type: Powder, Pallet
No. of Dose/holes of each mold: 2
Suitable for Capsule: 00#, 0#, 1#, 2#, 3#, 4#
key word: Powder Capsule Filling Machine Automatic Capsule Filling Machine

Automatic Capsule Filling Machine for Pharma Health Product

Product Description

A fully automatic capsule filling machine is professional equipment designed for pharmaceutical, health product, and hospital preparation applications. It utilizes hole-type filling with intermittent operation to automatically complete capsule separation, filling, waste capsule removal, locking, and finished product output.

This machine offers safe, hygienic operation with high precision, strong sealing, low noise levels, and high output capacity to meet modern production requirements.

Technical Specifications

Parameter	Specification
Model No.	SED-200J-H
Capacity	200 capsules/min
Filling type	Powder, Pallet
No. of Dose/holes of each mold	2
Suitable for Capsule	00#, 0#, 1#, 2#, 3#, 4#
Filling error	±3%-±4%
Noise	≤75dB(A)
Voltage	380V 50Hz 3P
Total Power	3.75Kw
Overall Weight	600Kg
Gross Weight	650Kg
Machine Dimension	750mm (L) x 680mm(W) x 1700mm(H)
Packing Dimension	1600mm (L) x 1050mm(W) x 1900mm(H)

Key Features

Touch-Screen PLC program control panel with LCD display
Capsule vacuum positioning mechanism ensures over 99% capsule qualification rate
Removable powder hopper for easy cleaning and auger adjustment
Simple speed selection and capsule length adjustment
CE-compliant electrical appliance control system
Quick-change part setup with easy rotary table and ring carrier removal
Fully enclosed dosing stations and rotating table for integrated operation
Large cam mechanism ensures balanced operation with highest precision

Applications

The automatic capsule filling machine is primarily used for filling powder or pellet capsule medicines in pharmaceutical, hospital preparation, and health care product industries.
