Capsule Filling Machine

Automatic Capsule Filling Machine with 1200 capsules/min Output, 380V 50Hz 3P Power, and ≤75dB(A) Noise Level

Name: Automatic Capsule Filling Machine with 1200 capsules/min Output, 380V 50Hz 3P Power, and ≤75dB(A) Noise Level
Brand: SED-Pharma

Automatic Capsule Filling Machine For Pharmaceutical And Nutraceutical Industries Product Description The SED-1200J-H Automatic Capsule Filling Machine is an efficient and stable automatic hard capsule filling machine utilizing an intermittent operation and disc-type filling principle. Designed for pharmaceutical and nutraceutical industries, it integrates capsule orientation, separation, filling, rejection, and locking into one seamless process. Compact and reliable, it ensures precise dosing and full compliance with GMP standards. Technical Parameters Model SED-1200J-H Ca

Product Details:

Place of Origin:	China
Brand Name:	SED-Pharma
Certification:	CE
Model Number:	SED-NJP-1200

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Wooden Case
Delivery Time:	35 Days after receiving the deposit
Payment Terms:	T/T,L/C,,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: Automatic Capsule Filling Machine For Pharmaceutical And Nutraceutical Industries
Model: SED-1200J-H
Filling Dosage: Powder, Granules
Capsule Size: 00#-4# capsule
Max Output: 1200 capsules/min
Power: 380V 50Hz 3P
Noise Index: ≤75dB(A)
Overall Dimension (mm): 1020mm (L) x 860mm(W) x 1970mm(H)

Automatic Capsule Filling Machine For Pharmaceutical And Nutraceutical Industries

Product Description

The SED-1200J-H Automatic Capsule Filling Machine is an efficient and stable automatic hard capsule filling machine utilizing an intermittent operation and disc-type filling principle. Designed for pharmaceutical and nutraceutical industries, it integrates capsule orientation, separation, filling, rejection, and locking into one seamless process. Compact and reliable, it ensures precise dosing and full compliance with GMP standards.

Technical Parameters

Model	SED-1200J-H
Capacity	1200 capsules/min
Filling Material	Powder, Granules
Die Hole Number	9
Power Supply	380V 50Hz 3P
Total Power	5.57KW
Application	00#-4# capsule
Filling Variation	±3% - ±4%
Noise	≤75dB(A)
Qualified Rate	≥99.5%
Overall Dimension	1020mm (L) x 860mm(W) x 1970mm(H)
Weight	900kg

Main Features

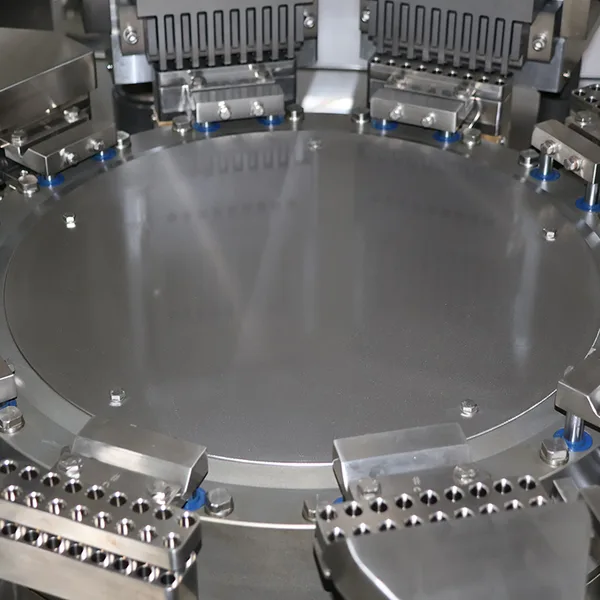

Precision Engineering: Enhanced mold turntable with original Japanese linear bearings ensures accuracy and longevity.
Stable Feeding System: Integrated column and chassis design prevents shift for stable and accurate filling.

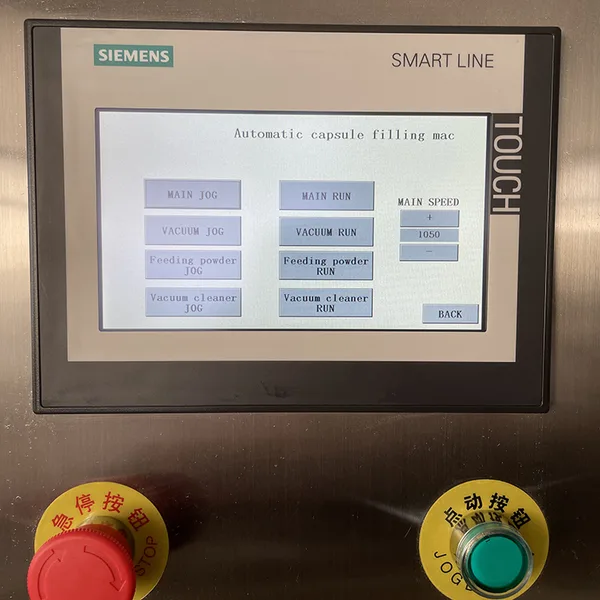

Intelligent Control: Siemens HMI and PLC provide real-time monitoring, auto-alarm, and stop functions for material/capsule shortage.

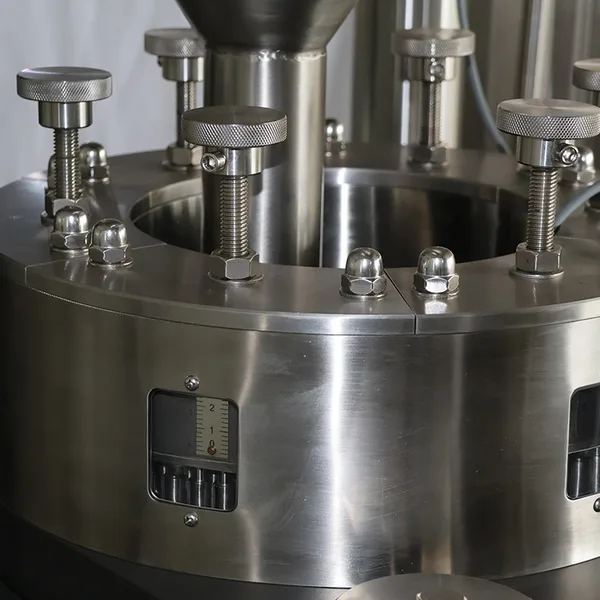

Accurate Dosing: 3D adjustment based on the dosage plate lower plane guarantees uniform clearance and consistent fill weight.
Durable & Quiet: Underslung cam design with pressure atomizing oil pump reduces wear and noise (≤75dB).
