Product Description of Capsule Filling Machine ​

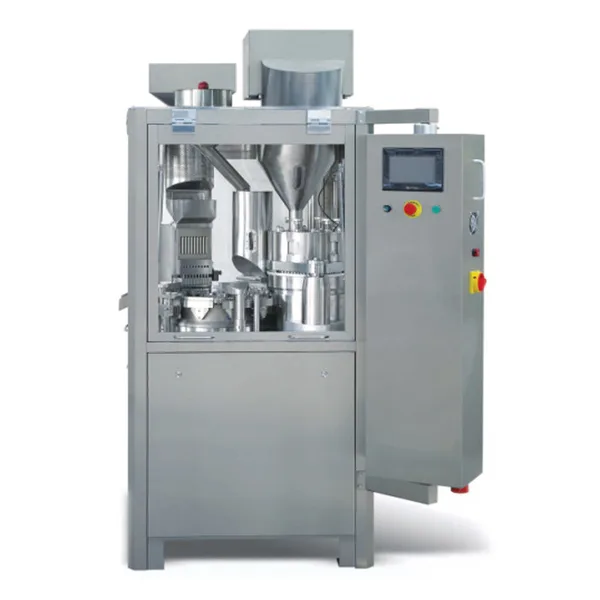

SED-1200J-C Automatic Capsule Filling Machine is commonly used in the pharmaceutical, nutraceutical industries to fill empty hard gelatin capsule of various sizes with powders and pellets (optional). The capsule filler automatically orientates, opens the empty hard gelatin capsule, properly fills the capsule with powder, and automatically closes the capsules.



Technical Parameters of Capsule Filling Machine

Model	SED-1200J-C
Machine Weight	900kg
Overall Dimension	1020×860×1970mm
Motor Power	5.75KW
Power Supply	AC380V 50Hz 3P4W
Capacity	1200 capsules/min
Application	00#-5# capsule, safety capsule A-E
Qualified Rate	≥99.5％
Working Noise	≤75dBA
Filling Error	≤±3％ (filling more than 300mg of 40-80 mesh granules)
Compressed Air	0.06m3/min 0.3Mpa
Water Source	Water ring vacuum pump with water tank or connected to external water source
Water Flow	250L/h
Diameter of Water Inlet	20mm
Diameter of Drain Pipe	27mm
Vacuum Degree	-0.02～-0.06 MPa
Working Environment	Temperature: 21℃±3℃
	Relative Humidity: 40～55％
Working Height	Manual feeding≥2.6m
	Vacuum feeding≥2.8m
Exhaust Volume	300m3/h



Features of Capsule Filler



Working Principle of Capsule Filling Machine

The working principle of the automatic capsule filling machine is divided into two parts, which are the movement of the capsule and the filling of the medicine:


1. Movement of the capsule
During the filling process of the intermittent capsule filling machine, the movement of the capsule depends on the indexing box for intermittent and discontinuous rotation. The filling volume of the capsule is mainly determined by the volume of the metering



disc hole. The hollow capsule is in the capsule hopper, the main board moves up and down, the capsule enters the capsule guide groove by its own gravity, and then the horizontal fork and the vertical plug make the capsule cap upward and the



capsule body downward into the upper and lower modules. The capsule body and capsule cap are separated under the action of the device, and then the module enters the powder filling station.


2. Drug filling
The sensor in the powder holding ring controls the screw feeding rod above it, and the medicine is continuously added to make the height of the powder in the powder holding ring constant. position, push the drug column into the capsule body. After that, it



enters into the capsule rejection, capsule locking, finished capsule discharge, module cleaning station in turn, and then enters a new round of station cycle, and the cycle begins again and again.



Application of Capsule Filling Machine

Optional Additions

	Change Parts The machine can be configured for all capsule sizes with a range of change parts available.
	Pellet Filling Device The pellet filling device is designed to fill pellets into hard gelatin capsules.
	Empty Capsule Feeder Designed to gently elevate the capsules to prevent capsule separation and crushed capsules during loading.
	Powder Feeder Vacuum transfer system supplies the powder automatically to the main powder hopper of the machine.
	Capsule Polisher Removes external dust from the finished capsules and transports them upward for discharge into the capsule storage barrel.
	Semi-Automatic Capsule Counter Capsules are counted and discharged, and the capsules can be packed in bottles or other containers.
	Empty Gelatin/HPMC Capsule Empty capsules of various colors and specifications are also available.
