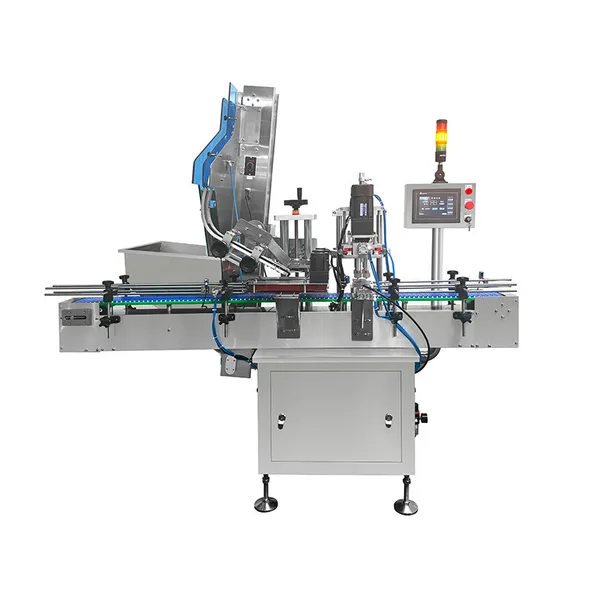

Automatic Capper Simple Capping Machine For Pharmaceutical


Working principle

SED-SXL automatic simple capping machine is suitable for various parts in daily chemical, pharmaceutical and food industries, such as spray heads, pump heads, round bottle caps, duckbill caps, and so on. The cap locking mechanism adopts electric and gas combination to control the movement. It has the function of locking caps of different shapes and specifications and adjusting the tightness of different caps, so that the stability is high and the speed adjustment is flexible. This machine is simple to operate and easy to use. It is a good machine to replace the manual capping. It is automatic packaging equipment designed by our company in strict accordance with national GMP standards and process requirements. The design and manufacturing principle of this machine is to provide the best, most accurate and most efficient capping work under the highest operating efficiency.


Main Technical Data:

Model Name	SED-SXL
Application	Ordinary cover Cover with protective ring Double cover Flip, etc.
Production speed	20-40 bottles/min
Power	220V/50HZ 0.6KW
Gas consumption	0.6Mpa 3L/min
Machine Size L × W × H (mm)	1360*850*1500mm
Weight	150KG



Feature:

• Reliable operation: stable operation and low noise.
• Anti-high dust: A unique anti-high dust photoelectric sensor is adopted.
• Convenient maintenance: Operators can disassemble, clean, and replace components with simple training, without additional tools.

Product Maintenance and Cleaning:

1. Because the capping machine is an automated machine, the sizes of bottles and caps are required to be uniform.

2. Before starting the machine, you must use the crank handle to turn the machine to see if there is any abnormality in the rotation, and it is indeed normal before you can drive.

3. When adjusting the capping machine, use proper tools. It is strictly forbidden to use excessive tools or excessive force to disassemble parts to avoid damage to the machine parts or affect the performance of the machine.

4. After the capping machine is adjusted, be sure to tighten the loose screws, and turn the machine with the shake handle to check whether the action meets the requirements before starting the machine.

5. The capping machine must be kept clean. It is strictly forbidden to have oil stains and material debris on the machine to avoid damage to the machine. Therefore, it must:

(1) During the production process of the machine, remove the liquid medicine or glass fragments in time.

(2) Clean the surface of the machine once before the shift, and add clean lubricating oil to each activity department.

(3) It should be scrubbed once a week, especially the places that are not easy to be cleaned in normal use or blown with compressed air.
