Liquid Filling Machine
50mm 0.31kw 0.5mpa Water Bottle Filling And Capping Machine
50mm 0.31kw 0.5mpa Water Bottle Filling And Capping Machine Product Description of Filling And Capping Machine The product is mainly designed to all kinds of PET plastic, iron, aluminum and paper cans and other round-bottle sealing applications. With an advanced design, reasonable structure and easy operation, it is the ideal packaging equipment in food, pharmaceutical, tea and chemical industries. 1. The can is designed as not rotating during the sealing process which will provide better protection to the product inside cans. 2. The operation panel design reasonably si
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-100FG |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- 50mm 0.31kw 0.5mpa Water Bottle Filling And Capping Machine
- Sealing adjustable height
- 50-200mm
- Total Power
- 0.31KW
- Suitable can dia :
- 50-120mm (can use more than one DIA by changing module)
- Voltage:
- 220V/380V
- Weight:
- 300KG
- Size:
- 1500（L）*800（W）*1500（H）mm (1.5m conveyor)
- key word
- Water Bottle Filling Machine
50mm 0.31kw 0.5mpa Water Bottle Filling And Capping Machine
Product Description of Filling And Capping Machine
The product is mainly designed to all kinds of PET plastic, iron, aluminum and paper cans and other round-bottle sealing applications. With an advanced design, reasonable structure and easy operation, it is the ideal packaging equipment in food, pharmaceutical, tea and chemical industries.
1. The can is designed as not rotating during the sealing process which will provide better protection to the product inside cans.
2. The operation panel design reasonably simple, easy adjustment and maintenance
3. The whole was made of stainless steel material, SS304 sealing roller, have good sealing performance, meet the requirement of most standard workshop design requirements
4. It automatically feed caps down when detected it, safe and reasonable electric control design
5. Cutter and turret raise and down by mechanical cam control, stable and reliable
6. For a variety of tin cans, aluminum cans, paper, cans, and other specifications circular sealing cans, easy to learn, is the ideal equipment for the food, beverage, pharmaceutical and other industries
Product Parameters of Filling And Capping Machine
|
Material
|
Stainless Steel
|
|
Sealing speed
|
15- 20 cans / min
|
|
Sealing adjustable height
|
50-200mm
|
|
Total Power
|
0.31KW
|
|
Suitable can dia :
|
50-120mm (can use more than one DIA by changing module)
|
|
Voltage:
|
220V/380V
|
|
Air pressure
|
0.5MPa
|
|
Weight:
|
300KG
|
|
Size:
|
1500(L)*800(W)*1500(H)mm (1.5m conveyor)
|
Advantages of Filling And Capping Machine
1. Use screw measurement for powder type materials, with screw feeder to achieve feeding, metering.
2. High precision, high quality, high high speed and long life.
3. Easy to operate and easy to clean.
4. Be made of stainless steel, good shape and nice appearance.

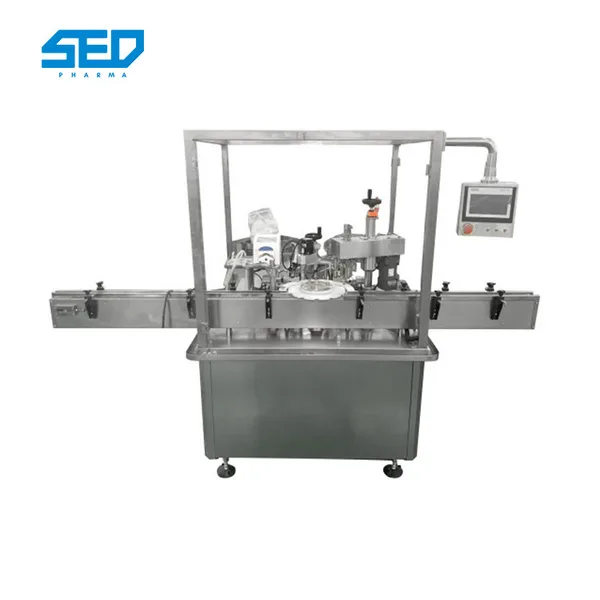

Products Show of Filling And Capping Machine
