500Kgs Per Batch Large Capacity Industrial Freeze Dry Machine Horizontal Cylinder Type CE Approved


500Kgs Per Batch Large Capacity Industrial Freeze Dry Machine Horizontal Cylinder Type CE Approved

Feature of Freeze Dry Machine​
1. Compliance with the Montreal Convention, with environmentally friendly refrigerants

2. Screw compressor is use Germany Bitzer , more stable performance, reliable, easy to maintain

3. Temperature and pressure of compressor has multiple protection features

4. According to the characteristics of freeze-dried fruit, use rotary vane vacuum pump + roots pump unit, the pumping speed is larger and more efficient

5. Stainless steel wide nozzle, defrosting water saving, high efficiency.



Product Parameters of Freeze Dry Machine​



SED-50DG Vacuum Freeze Dryer
	Product structure		Technical parameters	Remarks
Design Standard:
Public distribution
	Power		167Kw, 380V±10%,50HZ,3Phase,5Wire
	Vacuum function		19.8kw
	Refrigeration function		92kw
	Heating function		55.5kw
	Compressed air		≥40L/min(P=0.5~0.8Mpa)
	Cooling water Quantity		≥50m3/h(T≤30℃,P=0.2-0.3Mpa)
	Defrost water Quantity		≥4000kg(T≥30℃,P=0.1-0.2Mpa)
	Whole volume(L×W×H)		Dry chamber and Condenser: D=φ2100mmL=6650mm Freeze system vacuum system control system: L=2600mm W=2200mm H=2000mm Final dimension based on design
	Structure		Split
	Total weight		15T(Approx.)
Drying body
	Parameters
			Design and manufacturing standards	Vacuum vessel design standards
			Chamber design pressure	-0.1Mpa
			Chamber design temperature	100℃
	Main components
	Chamber material		SUS304
	Chamber type		Horizontal cylinder
	Lock type		Manually tighten
	Direction of opening door		Open right (user can choose)
	Opening angle		>110°
	Door materials		SUS304
	Chamber external decoration		SUS304
	The roughness of chamber		Ra≤0.8μm
	Chamber insulation material		Rubber insulation board/δ100mm
	Door observation window		Φ200mm	1 piece
	Chamber observation window		Φ200mm with LED Light	1 piece
	Door seal		Silicon rubber	1 piece
	Technical Features
	1	Stainless steel is polished with excellent brand to ensure surface roughness to ensure sterility requirements
	2	Cabinet, board level,and hose are tested after multiple procedures to ensure without leakage

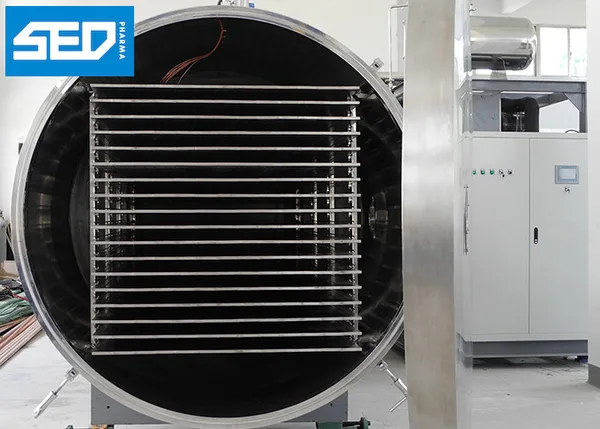

Shelf
	Performance parameters
			Total usable area of shelves	50M2
			Maximum water capacity	≥1000Kg/batch
			Lowest temperature of shelf	≤-50℃±3℃
			Highest temperature of shelf	90℃
	Main components
	Shelf material		Stainless steel rectangular tube splicing
	Surface roughness		Ra≤0.8μm
	The number of shelf		16+1 (Compensation Board)
	Shelf spacing		65mm
	Shelf dimensions		1300*2400
	ShelfFence		SUS304
	Product temperature sensor		Thermocouple	4 pieces
	Technical Features
	1	Shelf has high strength and can withstand long-term use;
	2	Shelf through a dedicated machining, can guarantee high demand flatness;
Condenser
	Performance parameters
			Design Standard	Vacuum vessel design standards
			Condenser design pressure	-0.1Mpa
			Condenser design temperature	100℃
			Condenser lowest temperature(no load)	≤-55℃±3℃

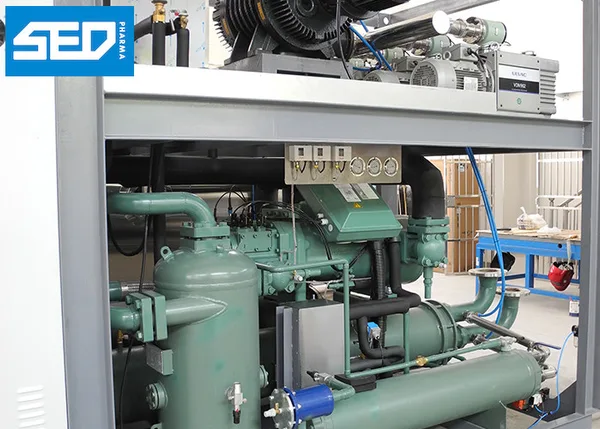

Refrigeration System
	Performance parameters
			Shelf cooling rate (no load)	20℃→-40℃≤90min
			Condenser cooling rate (no load)	20℃→-40℃≤30min

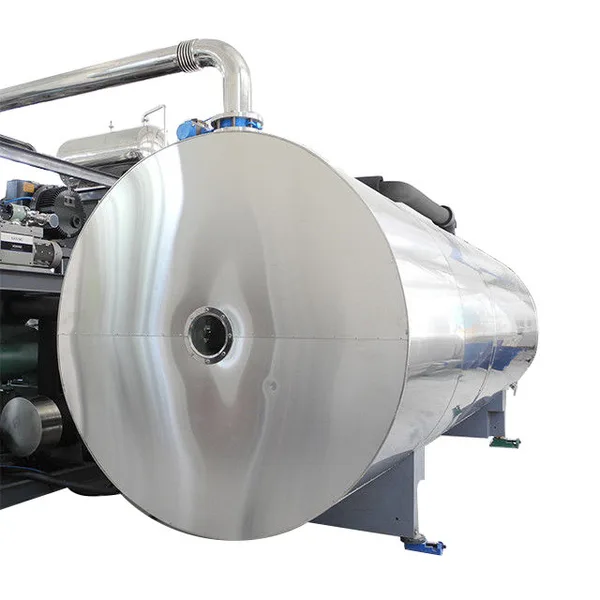

Show of Freeze Dry Machine



Application of Freeze Dry Machine

Suitable for heating, curing and drying of materials and products in pharmaceutical, chemical, food, light industry and other fields: raw materials, APIs, traditional Chinese medicines, powders, crude drugs, packaging bottles, pigments, dyes, dehydrated vegetables, food, plastic resins, components Parts, paint, wool, salt, catalyst, etc.
