3 Square Meters Vegetables Vacuum Freeze Dry Machine PLC Automatic Control System Power 380V/50HZ/100A

3 Square Meters Vegetables Vacuum Freeze Dry Machine PLC Automatic Control System Power 380V/50HZ/100A



Product introduction of Freeze Drying Machine



Freeze-drying machine is suitable for laboratory or pilot scale freeze-drying experiments.This series of products are the patent products of our company.



The series of drying machines are equipped with electric heating rack, and the freeze-drying process is completed in the same place.It changes the traditional complex operation and prevents product contamination.



It is not only suitable for the freeze drying of the conventional materials in bulk (liquid, pasty and solid), but also for the drying of the vials.



When the products are ready for freeze-drying, the materials are packed in vials as needed, Dry, dry after the end of the operation Gland device compact cap, to avoid secondary pollution, re-adsorption of water, easy long-term preservation.



Main Parameter of Freeze Drying Machine​

model	3 square meters
Power	380V/50HZ/100A
Power consumption	19Kw
Cooling water qty	≥3m3/h(T≤28℃) ≥2m3/h(T≤20℃)
Compressed air	≥40L/Min(P=0.4-0.5Mpa)
Defrost water consumption	60Kg/Batch(T=80℃/P≥0.2-0.3MPa)
Chamber design temperature	90℃
Shelf total usable area	3.24M2
3-5ml vials capacity	13000 bottles
Structure	Integral
Total weight	2000kg
Whole volume	3500X1200X2100mm



Main Features of Freeze Drying Machine​



1. With electric heating shelf and PID control standard,with programmable function

2. 16 programs can be stored, each program can be set up 32 segments

3. LCD display and record drying curves

4. Stopper by hand is available, vacuum sealing for vials can be completed.

5. RS232 interface is optional, computer connected to display freeze-drying curve

6. Air-let-in valve with nitrogen is optional

7. Eutecticpoint test device is optional

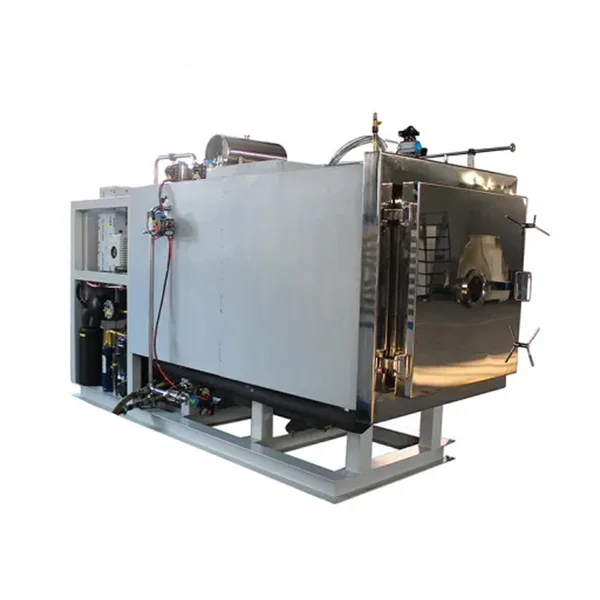

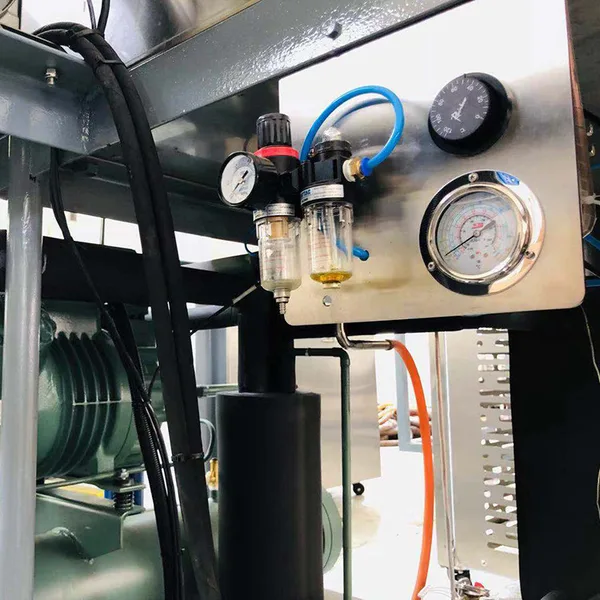

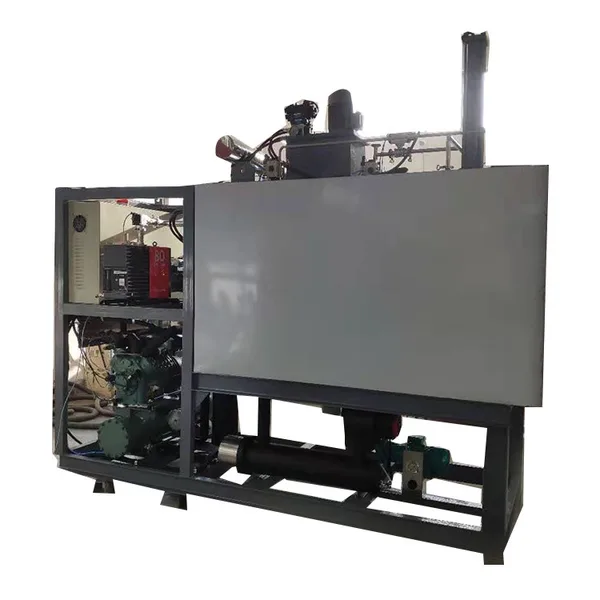

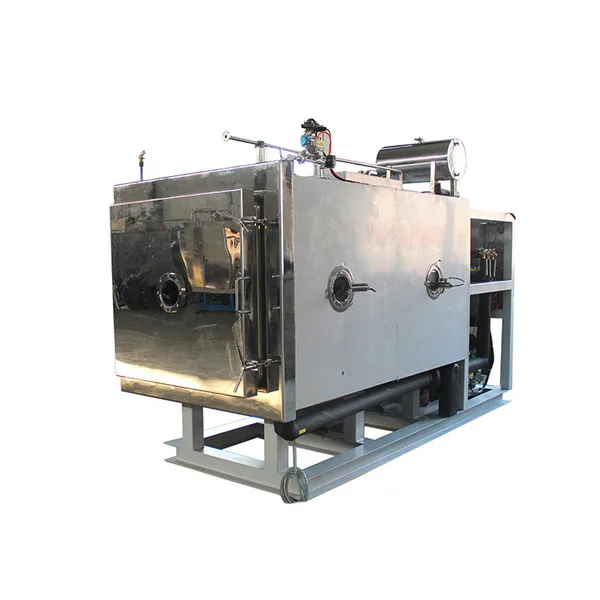

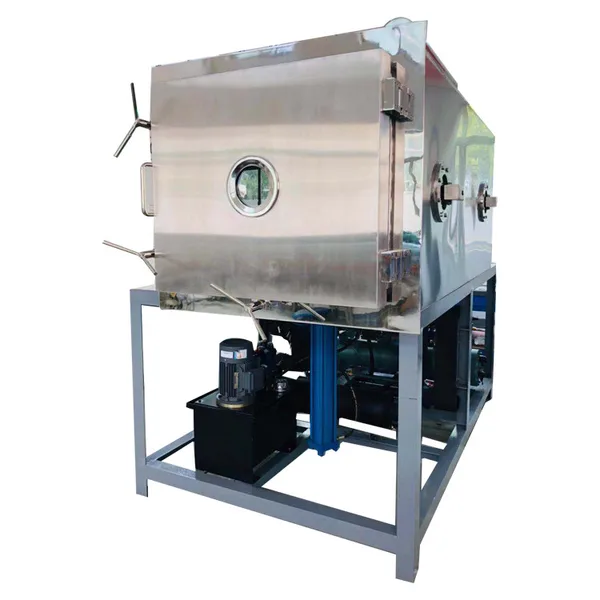

Product Show of Freeze Drying Machine
