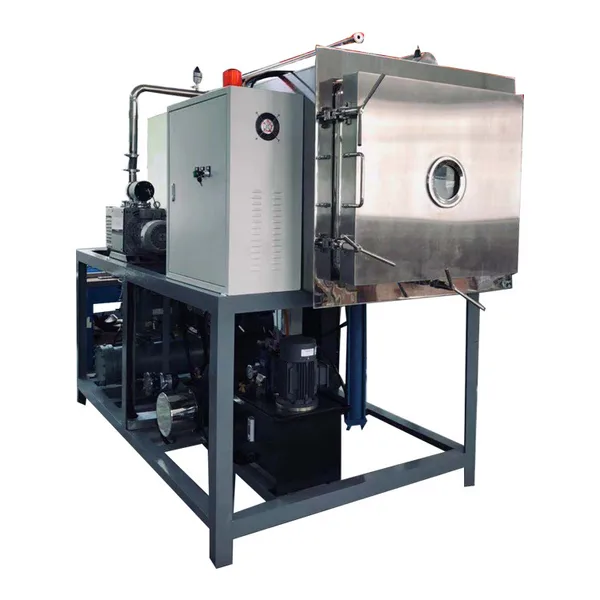

3 Square Meters Ss Vacuum Industrial Freeze Dry Machine Customizable Simple Operation Power 380V/50HZ/100A

3 Square Meters Ss Vacuum Industrial Freeze Dry Machine Customizable Simple Operation Power 380V/50HZ/100A



Product Overview of Freeze Dry Machine​

Freeze dryer is mainly used in pharmaceutical and biological fields.Accept fluid, bulk type and raw material in vials.



We scientifically design and provide freeze dryer capacity ranging from 0.1 square meters for small test models to 200 square meters for large industrial models.Please contact us to provide the best solution for your freeze-drying project.



Product Parameters of Freeze Dry Machine​

model	lyophilizer price
Power	380V/50HZ/100A
Power consumption	19Kw
Cooling water qty	≥3m3/h(T≤28℃) ≥2m3/h(T≤20℃)
Compressed air	≥40L/Min(P=0.4-0.5Mpa)
Defrost water consumption	60Kg/Batch(T=80℃/P≥0.2-0.3MPa)
Chamber design temperature	90℃
Shelf total usable area	3.24M2
3-5ml vials capacity	13000 bottles
Structure	Integral
Total weight	2000kg
Whole volume	3500X1200X2100mm



Feature of Freeze Dry Machine​

> Integrated structure design.

> Cylindrical or rectangular freeze dryer chamber optional.

> AISI 304 material make sure the dried product quality. Stainless steel 316L is optional.

> CFC-free, semi-hermetic, piston compressor could cool ice condenser to -80ºC and shelves -50ºC.

> Hollow shelves with fluid filled, temperature raise by electric heater, During sublimation shelf temperature could programming from -50ºC to +70ºC with accuracy of ±1ºC.

> 4pcs high sensitive temperature probe to monitor raw material temperature data.

> Edwards or Leybold vacuum pump optional, System final vacuum <1Pa.

> Inert gas charge function.

> Full Color touch screen controller with LYO-CONTROL:

1, Full Automatic Working and manual working select.

2, Real time display of shelf/ material/ condenser temperature and vacuum level.

3, Real time display parts working status. System total working time and each freeze drying step working time.

4, Creation and storage 32 recipes with up to 36 steps for each recipe. Each step ability to set shelf temperature/ time, ability to set primary and secondary drying vacuum level.

5, Real time display freeze drying curve, history drying curve/data, USB port is available for data export to U-disk.

6, Sound alarm if any failure happen, failure parts display on screen.

7, PID algorithm combined in PLC module, provide up to 30% energy saving in drying process.

> Pneumatic system for valves(vacuum pumping/condenser defrosting/vacuum release/inert gas charge) quick action.

> Patent vapor guidance technology and ice condenser design, strong guarantee ice condenser icing efficient and capacity.

> Hydraulic stoppering system.

> CIP, SIP, PC/Mobile phone connective, data recorder is optional.

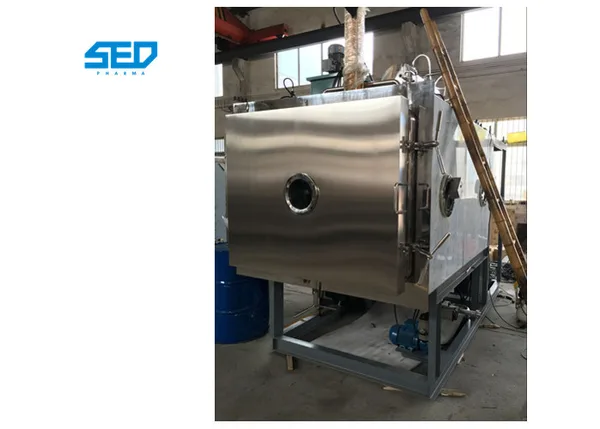

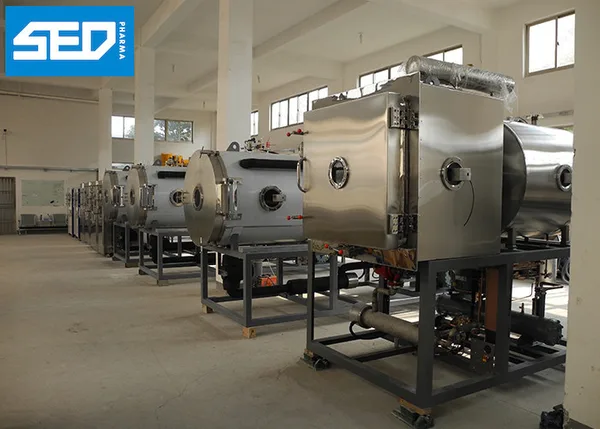

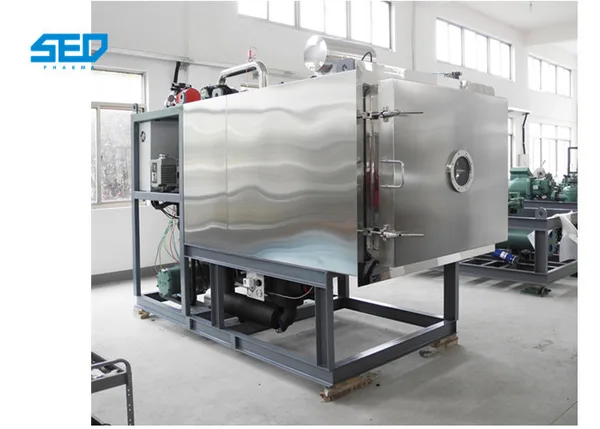

Show of Freeze Dry Machine



Application of Freeze Dry Machine

Food industry: dried vegetables, meat, fish, condiments, convenience foods and specialty products, etc. Preserves the original fresh look, smell, taste, shape of food. Freeze-dried products fully restore moisture, can be stored for longer periods more easily, and are less expensive to ship.

Nutrition and health care industry:
Vacuum freeze-dried products such as royal jelly, ginseng, soft-shelled turtle and rain worm make the final product more natural and authentic.

Pharmaceutical industry:
Vacuum freeze-drying can be used for the drying of Chinese and Western leeches such as serum, plasma, bacteria, enzymes, antibiotics, hormones, etc.

Biomedical Research:
Vacuum freeze-drying can store blood, bacteria, arteries, bones, skin, cornea, nerve tissue and organs for a long time, and can fully restore moisture and regeneration.
