3 Square Meters Low Temperature Food Small Freeze Dry Machine 380V / 50HZ / 100A Power



3 Square Meters Low Temperature Food Small Freeze Dry Machine 380V / 50HZ / 100A Power



Product Overview of Freeze Dry Machine

Freeze-dry (brief named Freeze-dry) is a stable process of material dried which will put the material contained with water to freeze to solid first, then make among them of the water sublimate from solid to air condition, removing water to preserve materials

Products at solution stage are frozen through sublimation and desorption, then the solvent reduce to a certain extent, thereby preventing the formation of micro-organisms or chemical reaction between the solute and solvent that products can be preserved for a long time and maintained its nature.

Vacuum freeze-drying method is a liquid → solid → gaseous process. In freeze-drying process, "liquid bridge" between the solution particles has been frozen into "solid bridge". The relative position of particles has been fixed and does not exist surface tension on gas-liquid interface between the two particles.



With the continuous distillation of solvent, "solid bridge" continuously decrease, but the the relative position between two particles will not longer change until the "solid bridge" completely disappear.



Feature of Freeze Dry Machine​

1. With electric heating shelf and PID control standard,with programmable function

2. 16 programs can be stored, each program can be set up 32 segments

3. LCD display and record drying curves

4. Stopper by hand is available, vacuum sealing for vials can be completed.

5. RS232 interface is optional, computer connected to display freeze-drying curve

6. Air-let-in valve with nitrogen is optional

7. Eutecticpoint test device is optional



Product Parameters of Freeze Dry Machine​

model	3 square meters
Power	380V/50HZ/100A
Power consumption	19Kw
Cooling water qty	≥3m3/h(T≤28℃) ≥2m3/h(T≤20℃)
Compressed air	≥40L/Min(P=0.4-0.5Mpa)
Defrost water consumption	60Kg/Batch(T=80℃/P≥0.2-0.3MPa)
Chamber design temperature	90℃
Shelf total usable area	3.24M2
3-5ml vials capacity	13000 bottles
Structure	Integral
Total weight	2000kg
Whole volume	3500X1200X2100mm

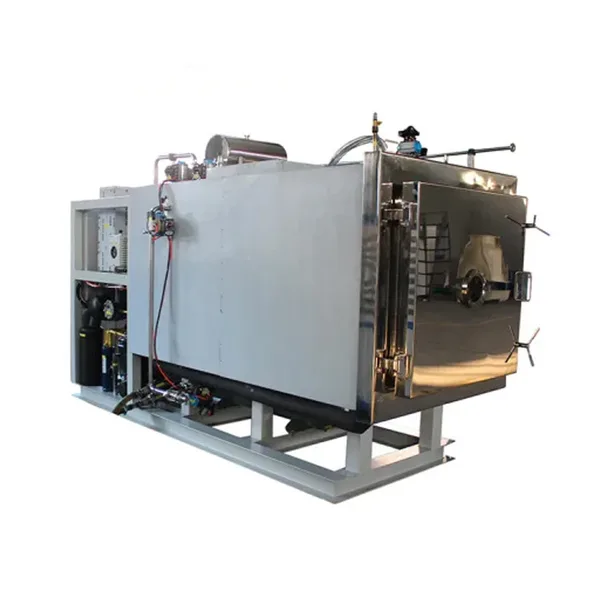

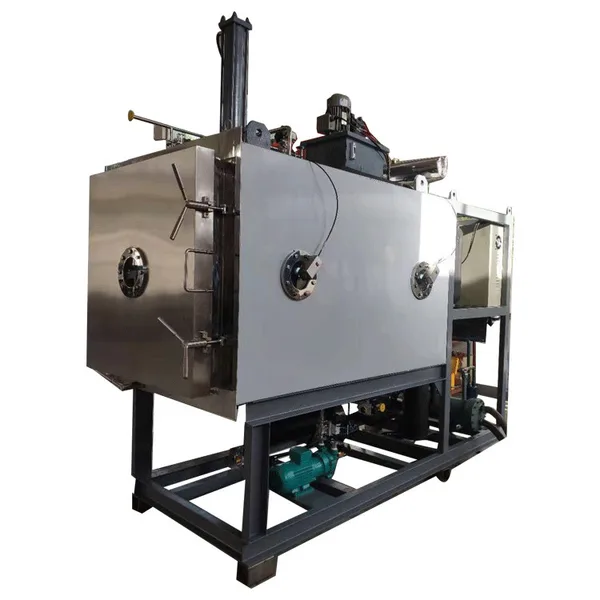

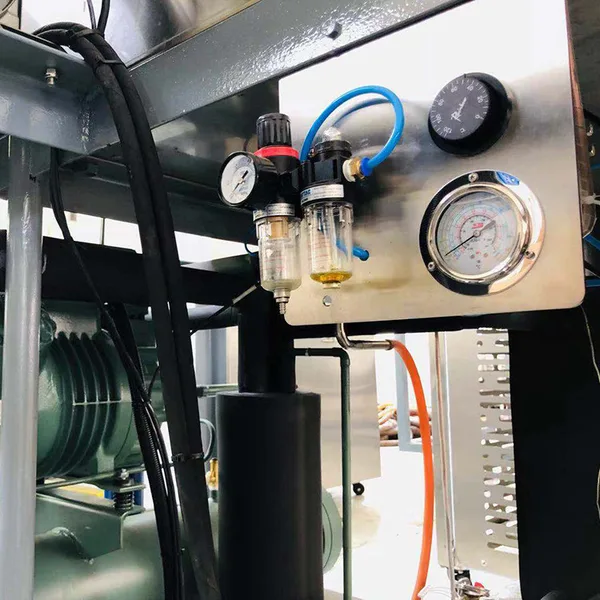

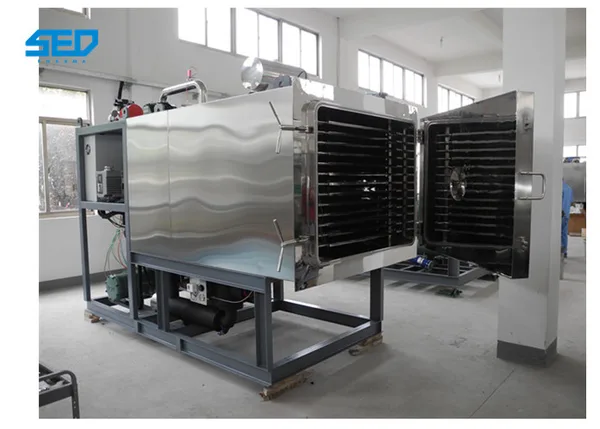

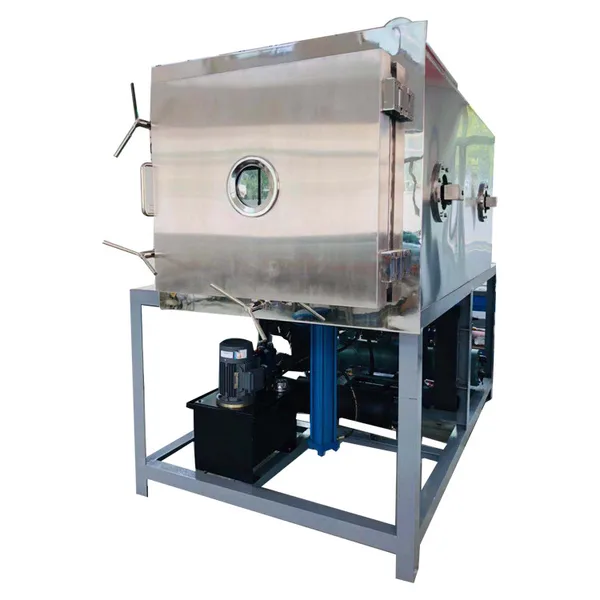

Show of Freeze Dry Machine​





Application of Freeze Dry Machine

Freeze Drying Machine is widely used in food, fruit, vegetable, fish, sea cucumer, shrimp, meat drying indstury, chemical and biological industry etc. the dried product dried by freeze dryer is with good taste, beautiful color and good shape.
