3 square meters Fruits And Vegetables Small Industrial Freeze Drying Machine Box Type Customizable

Name: 3 square meters Fruits And Vegetables Small Industrial Freeze Drying Machine Box Type Customizable
Brand: SED Pharma

3 square meters Fruits And Vegetables Small Industrial Freeze Drying Machine Box Type Customizable Product Description of Freeze Dryer Freeze-drying machine is mainly used in pharmaceutical and biological fields.Accept fluid or bulk type raw materials. The available shelf space is 3.5 square meters and provides fast steam collection in 24 hours. During sublimation, the bizzar piston compressor cools the ice condenser directly through refrigerant expansion to -80c (-112f) and the plate heat exchanger's indirect cooling rack to -50c (-58f). Professional and multi-funct

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-3M

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	90-120 days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	10 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: 3 square meters Fruits And Vegetables Small Industrial Freeze Drying Machine Box Type Customizable
model: 3 square meters
Power: 380V/50HZ/100A
Chamber design temperature: 90℃
Total weight: 2000kg
Whole volume: 3500X1200X2100mm
material: stainless steel
key word: Freeze Dry Machine

3 square meters Fruits And Vegetables Small Industrial Freeze Drying Machine Box Type Customizable

Product Description of Freeze Dryer

Freeze-drying machine is mainly used in pharmaceutical and biological fields.Accept fluid or bulk type raw materials.

The available shelf space is 3.5 square meters and provides fast steam collection in 24 hours. During sublimation, the bizzar piston compressor cools the ice condenser directly through refrigerant expansion to -80c (-112f) and the plate heat exchanger's indirect cooling rack to -50c (-58f).

Professional and multi-functional industrial lyo-control system provides the controller with the most advanced PLC and 7 "full-color touch screen system, PC and mobile phone connection function/software optional.

Product Parameters of Freeze Dryer

model	3 square meters
Power	380V/50HZ/100A
Power consumption	19Kw
Cooling water qty	≥3m3/h(T≤28℃) ≥2m3/h(T≤20℃)
Compressed air	≥40L/Min(P=0.4-0.5Mpa)
Defrost water consumption	60Kg/Batch(T=80℃/P≥0.2-0.3MPa)
Chamber design temperature	90℃
Shelf total usable area	3.24M2
3-5ml vials capacity	13000 bottles
Structure	Integral
Total weight	2000kg
Whole volume	3500X1200X2100mm

main Feature of Freeze Dryer

• Integrated structure design.
• Rectangular chamber provide very high energy efficient.
• AISI 304 material for standard configuration. Stainless steel 316L is optional.
• Piston compressor,double stage, Bitzer brand, could cool ice condenser to -80ºC and shelves -50ºC.
• Shelf temperature -50ºC to +70ºC with accuracy of ±1ºC.
• 4pcs high sensitive temperature probe to monitor raw material temperature data.
• Edwards or Leybold vacuum pump optional, System final vacuum <1Pa.
• Inert gas charge function.
• Full Color touch screen controller with LYO-CONTROL.
• Pneumatic system for valves(vacuum pumping/condenser defrosting/vacuum release/inert gas charge) quick action.
• Patent vapor guidance technology and ice condenser design, strong guarantee ice condenser icing efficient and capacity.
• CIP, SIP, stoppering, PC/Mobile phone connective, data recorder is optional.

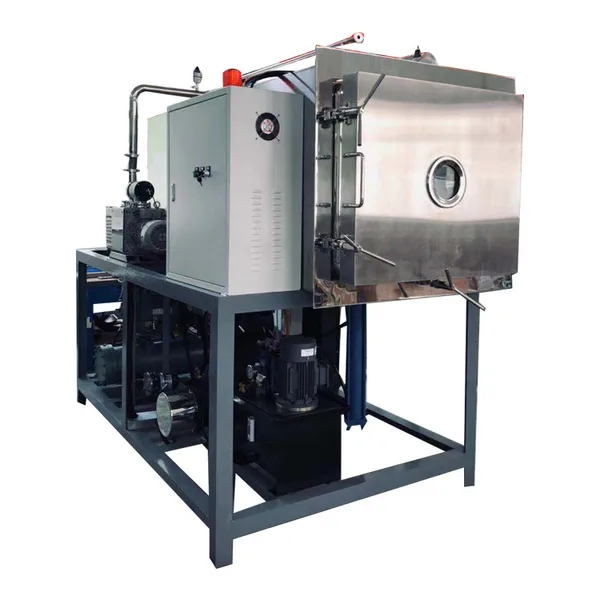

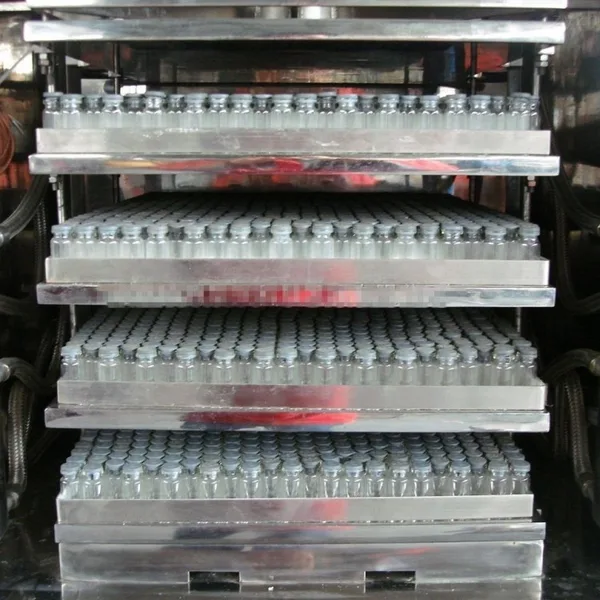

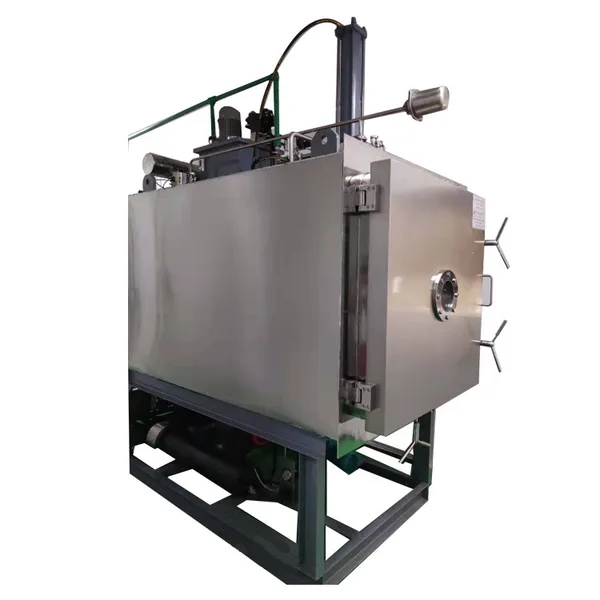

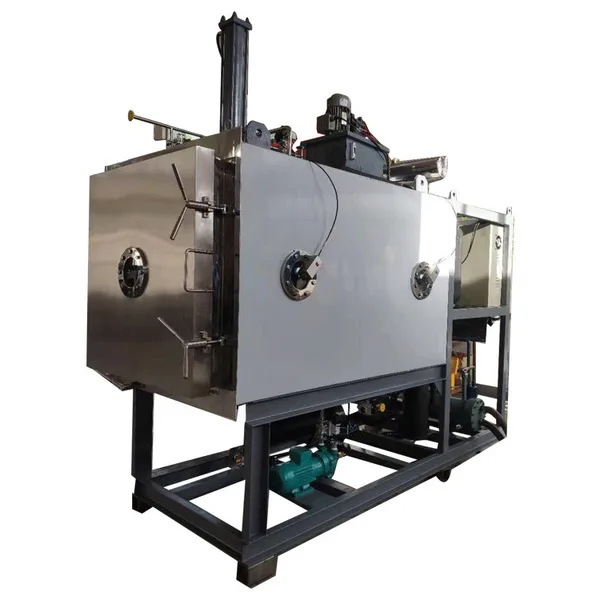

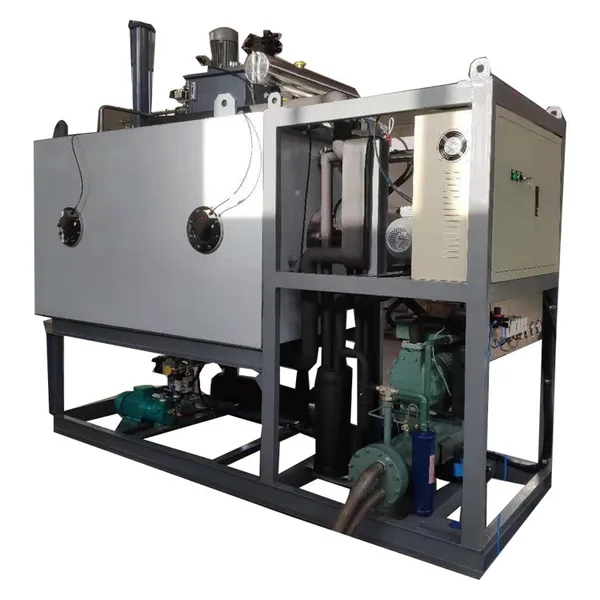

Show of Freeze Dryer

3 square meters Fruits And Vegetables Small Industrial Freeze Drying Machine Box Type Customizable product detail
