220V/50HZ Stainless Steel Pharma Machinery Eye Drop Filling Stoppering Capping Machine
220V/50HZ Stainless Steel Pharma Machinery Eye Drop Filling Stoppering Capping Machine Product Overview of Filling Stoppering Capping Machine This machine is an automatic liquid filling device composed of PLC, man-machine interface, photoelectric sensor and pneumatic components. Combine filling, stopper, capping and screwing in one. It has a high reputation for its high precision, stable performance, and greater versatility under extreme working conditions. It has been widely used in the pharmaceutical industry, especially for small volume bottles such as eye drops fill
| Place of Origin: | China |
|---|---|
| Brand Name: | SED-Pharma |
| Certification: | CE |
| Model Number: | SED-18-18-6GXS |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- 220V/50HZ Stainless Steel Pharma Machinery Eye Drop Filling Stoppering Capping Machine
- After-sales service provided
- Engineers available to service machinery overseas
- Voltage
- 220V/50HZ
- Condition
- New
- Weight
- 1200kg
- Automatic grade
- Automatic
- Driven type
- Electric
- Labelling accuracy
- ±1%
- material
- stainless steel
- key word
- Eye Drop Filling Stoppering Capping Machine
220V/50HZ Stainless Steel Pharma Machinery Eye Drop Filling Stoppering Capping Machine
Product Overview of Filling Stoppering Capping Machine
This machine is an automatic liquid filling device composed of PLC, man-machine interface, photoelectric sensor and pneumatic components. Combine filling, stopper, capping and screwing in one. It has a high reputation for its high precision, stable performance, and greater versatility under extreme working conditions.
It has been widely used in the pharmaceutical industry, especially for small volume bottles such as eye drops filling and capping.
Product Parameters of Filling Stoppering Capping Machine
| Filling volume | 5-100ml |
| Speed | 30-40bottle/min |
| Filling accuracy | ±1% |
| Plug feeding rate | ≥99% |
| Lid feeding rate | ≥99% |
| Capping rate | ≥99% |
| Labelling accuracy | ±1% |
| Main motor power | 2KW 220V |
Feature of Filling Stoppering Capping Machine
1)This eye drop bottle filling and capping production line packaging machine includes the following equipment:the turn table feeding bottle,automatic filling,automatic feeding dropper,automatic feeding caps,capping,labelling and bottle collections table.
2)This operation consists of bottle feeding table,peristaltic pump filling,Mechanical hand feeding dropper,Mechanical hand feeding cap and servo pre-capping,final servo capping,labelling and bottle collection.

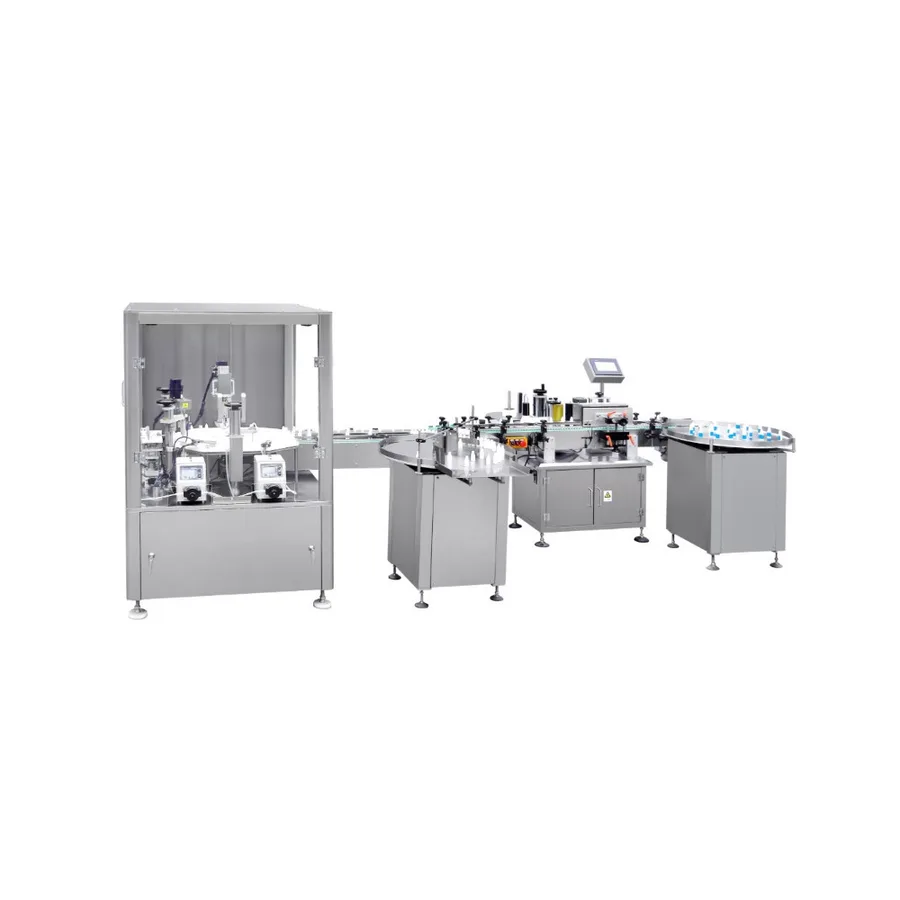

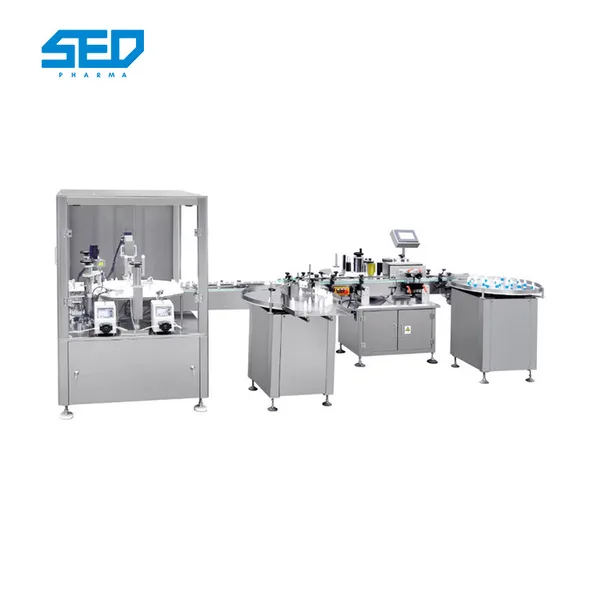

Show of Filling Stoppering Capping Machine
Application of Filling Stoppering Capping Machine
This machine is a fully automatic eye drop equipment, suitable for automatic filling, plugging and capping machines for 5ml, 10ml, 15ml round and flat plastic eye drop bottles. All capping and filling are aseptically produced under Class A laminar flow.
