Automatic Labeling Machine

2.0KW Sleeving And Shrinking Labeling 150BPM Pharma Machinery

Name: 2.0KW Sleeving And Shrinking Labeling 150BPM Pharma Machinery
Brand: SED Pharma

2.0KW Sleeving And Shrinking Labeling 150BPM Pharma Machinery Product Description of Labeling Machine Automatic sleeving labeling machine is suitable for kinds of bottle types, for example: round bottle, square bottle, flat bottle, curve bottle and cup-shaped. Product Parameters of Labeling Machine Overall Dimension 2200x850x2000mm Power Supply 220V/50HZ Total Weight 600kgs Total power 2kw Model SED- TB Capacity 100-150BPM Eligibility percent ≥99.5% Materials PVC,PET,OPS Advantages of Labeling Machine Driving unit: Synchronized transmission and drive by gear with one

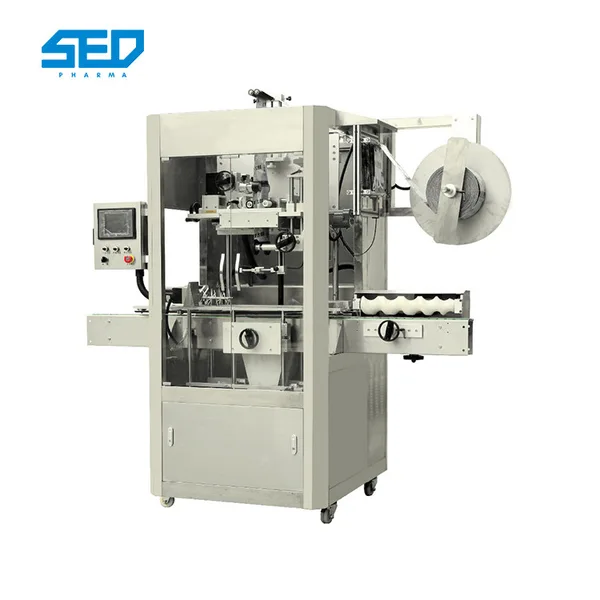

2.0KW Sleeving And Shrinking Labeling 150BPM Pharma Machinery, view 1

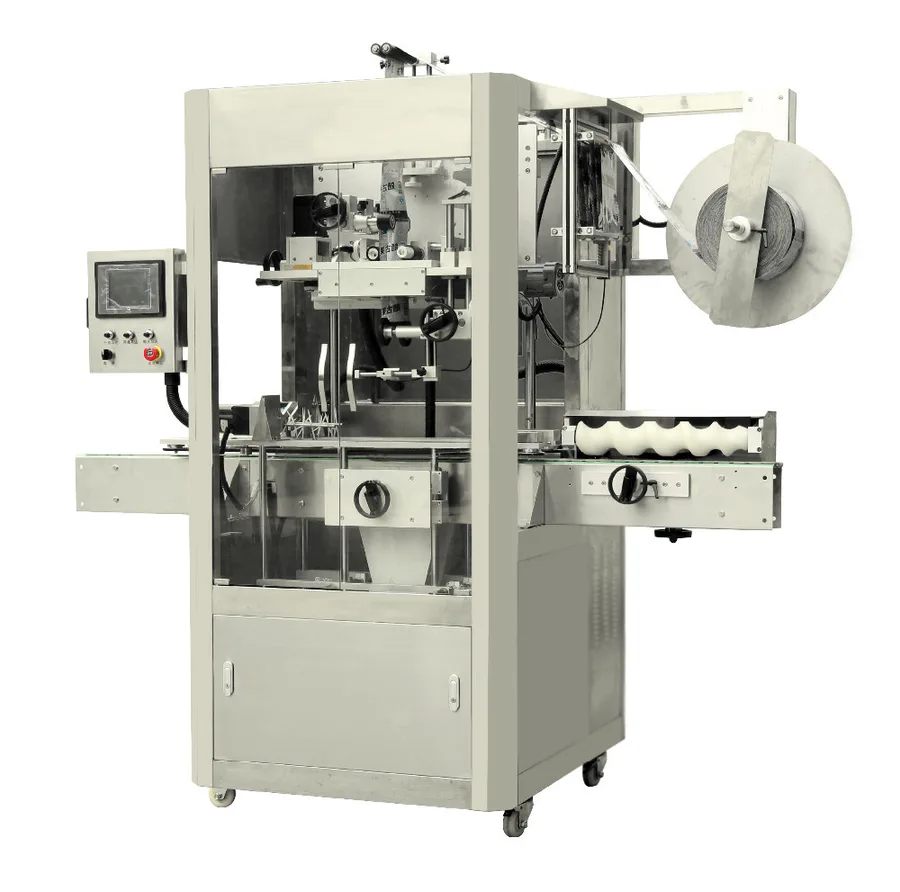

2.0KW Sleeving And Shrinking Labeling 150BPM Pharma Machinery, view 2

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED- TB

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	50-60 Days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: 2.0KW Sleeving And Shrinking Labeling 150BPM Pharma Machinery
Machine model: SED-TB
Capacity: 100-150BPM
weight: 600Kgs
Powder supply: 208V, 60Hz
Eligibility percent: ≥99.5%
Total powder: 2.0KW
Flat width: Max200mm
material: stainless steel
key word: Sleeving And Shrinking Labeling

2.0KW Sleeving And Shrinking Labeling 150BPM Pharma Machinery

Product Description of Labeling Machine
Automatic sleeving labeling machine is suitable for kinds of bottle types, for example: round bottle, square bottle, flat bottle, curve bottle and cup-shaped.

Product Parameters of Labeling Machine

Overall Dimension	2200x850x2000mm
Power Supply	220V/50HZ
Total Weight	600kgs
Total power	2kw
Model	SED- TB
Capacity	100-150BPM
Eligibility percent	≥99.5%
Materials	PVC,PET,OPS

Advantages of Labeling Machine
Driving unit:
Synchronized transmission and drive by gear with one belt. The change of transmission belt will be finished quickly. Compared to the type of traditional multilayer whose change and maintain need more than six hours, its maintenance is easy and maintain is simple, so it doesn't influence production.

Cutter head unit:
The new style cutting knife droved by servo motor, with high speed, more stable and precise, shrinks perfectively.Synchronous locating device enables the tolerable error to1mm.Unit cutter head plane design in China which applies to the container of D30mm-D130mm.You never need to change or debug it. Cutter head original transducer is inside the cutter head and when you take down cutter head, you do not need to correct the synchronous belt. It also has unique light touch human-machine screen, that means, auto search original location as well as safety and convenience which is ahead of other congener products.

Label feeding unit:
Single material shelf with reasonable height in order to make it convenient to install label. It adopts rotary potentiometer which enable the label feeding stable and fluent and avoid the error label length, label block and other problem when label feeding servo convey the label. It will stop automatically and give alarm light and also display on the touch screen.

Clean down unit:
Adopt with motor coordinating with double circular arc synchronous belt makes clean down plastic core-rubber-tires synchronously and ensures the label casting stably.

Bottle carrying system:
Adopted with mechanical transmission to drive the positioning belt on both sides. While changing the whole bottle carrying unit, the down and up, width are all controlled by one hand wheel aiming to synchronously and swiftly adjust.

Machine head up and down unit:
It adopts motor to up and down which enable the operation more convenient.

Electrical Configuration
It adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer; also, it adopts the positioning module to ensure the casting label precise, rapid and stable.

Products Show of Labeling Machine

Application of Labeling Machine
