Freeze Dry Machine

12m3/H 5Wire Freeze Dry Machine For Tomato Cassava Drying

Name: 12m3/H 5Wire Freeze Dry Machine For Tomato Cassava Drying
Brand: SED Pharma

12m3/H 5Wire Freeze Dry Machine For Tomato Cassava Drying Product Description of Freeze Dry Machine Freeze-dry (brief named Freeze-dry) is a stable process of material dried which will put the material contained with water to freeze to solid first, then make among them of the water sublimate from solid to air condition, removing water to preserve materials Vacuum freeze-drying method is a liquid → solid → gaseous process. In freeze-drying process, "liquid bridge" between the solution particles has been frozen into "solid bridge". The relative position of particles has bee

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-10DG

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	50-60 Days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: 12m3/H 5Wire Freeze Dry Machine For Tomato Cassava Drying
Description: SED-10DG Vacuum Freeze Drying Machine
Machine suitable for: food and vegetable drying
Power supply: 43Kw, 380V±10%,50HZ,3Phase,5Wire
Compressed air: ≥40L/min(P=0.5~0.8Mpa)
Cooling water Quantity: ≥12m3/h(T≤30℃,P=0.2-0.3Mpa)
Structure: Integral
Whole volume(L×W×H): 4500mm×2000mm×2000mm
material: stainless steel
key word: Freeze Dry Machine

12m3/H 5Wire Freeze Dry Machine For Tomato Cassava Drying

Product Description of Freeze Dry Machine

Freeze-dry (brief named Freeze-dry) is a stable process of material dried which will put the material contained with water to freeze to solid first, then make among them of the water sublimate from solid to air condition, removing water to preserve materials

Vacuum freeze-drying method is a liquid → solid → gaseous process. In freeze-drying process, "liquid bridge" between the solution particles has been frozen into "solid bridge". The relative position of particles has been fixed and does not exist surface tension on gas-liquid interface between the two particles.

With the continuous distillation of solvent, "solid bridge" continuously decrease, but the the relative position between two particles will not longer change until the "solid bridge" completely disappear.

Product parameters of Freeze Dry Machine

Description	SED-10DG Vacuum Freeze Drying Machine
Machine suitable for	food and vegetable drying
Power supply	43Kw, 380V±10%,50HZ,3Phase,5Wire
Compressed air	≥40L/min(P=0.5~0.8Mpa)
Cooling water Quantity	≥12m3/h(T≤30℃,P=0.2-0.3Mpa)
Structure	Integral
Whole volume(L×W×H)	4500mm×2000mm×2000mm
	Final dimension based on design
Weight	4T (Approx)

Feature of Freeze Dry Machine

1 Screw compressor is used Blitzer refrigeration compressor, more stable performance, reliable, easy to maintain

2 Temperature and pressure of compressor has multiple protection features

3 Suction filter settings, prevent degeneration of stolen goods and acid materials into the compressor chamber , corrosion internal parts and refrigeration oil.

4 Exhaust temperature protection set to avoid oil degeneration in extreme conditions , to reduce the exhaust temperature by cooling motor

5 Compliance with the Montreal Convention, with environmentally friendly refrigerants;

Working Principle of Freeze Dry Machine

Freeze dryer is a technology that uses the principle of sublimation for drying. The dried raw materials are quickly frozen at low temperature, and then in an appropriate vacuum environment, the frozen water molecules are directly sublimated into water

vapor to escape, and freeze-dried products are obtained. dry matter.

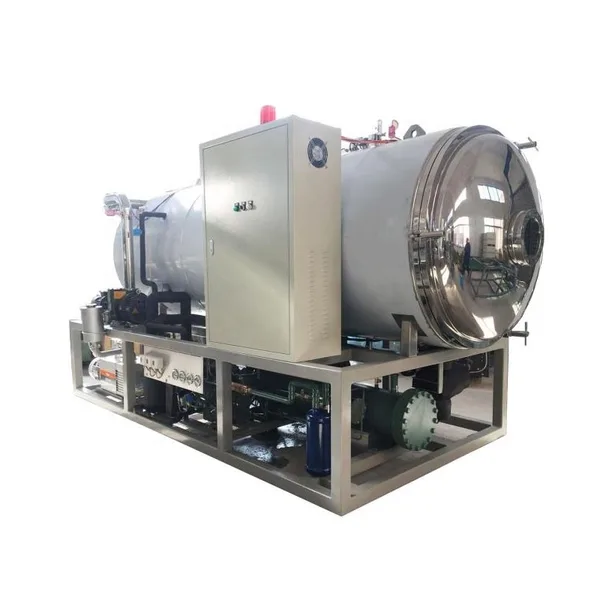

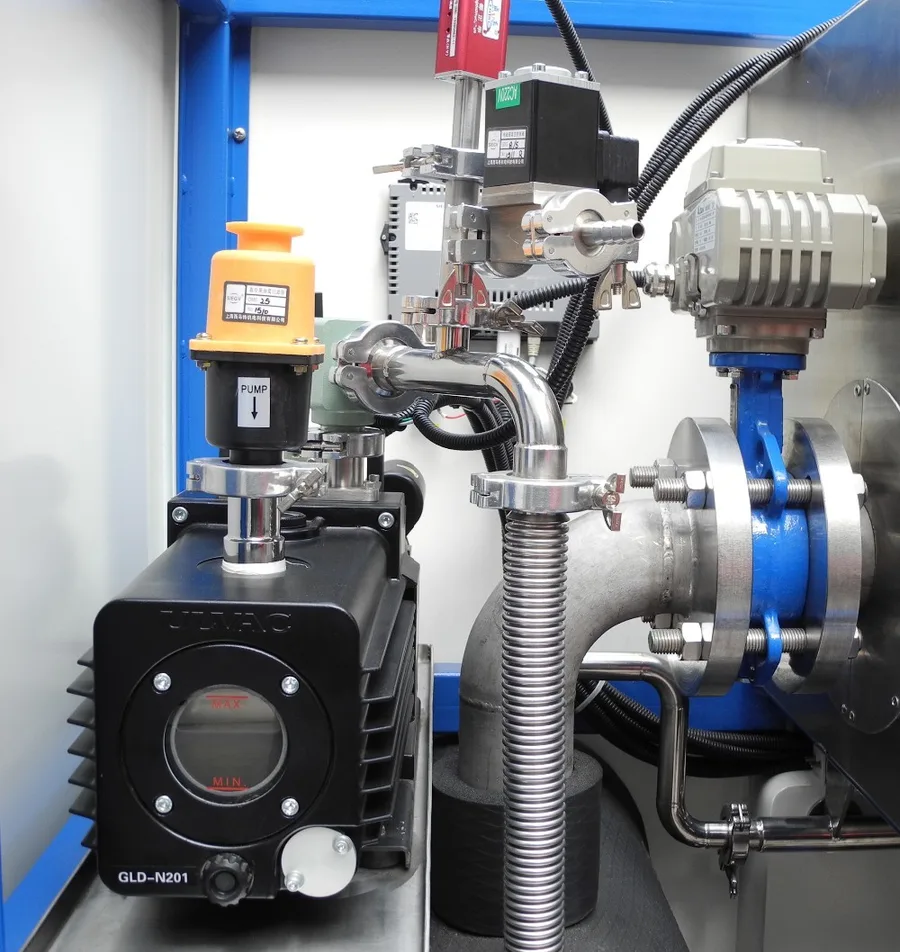

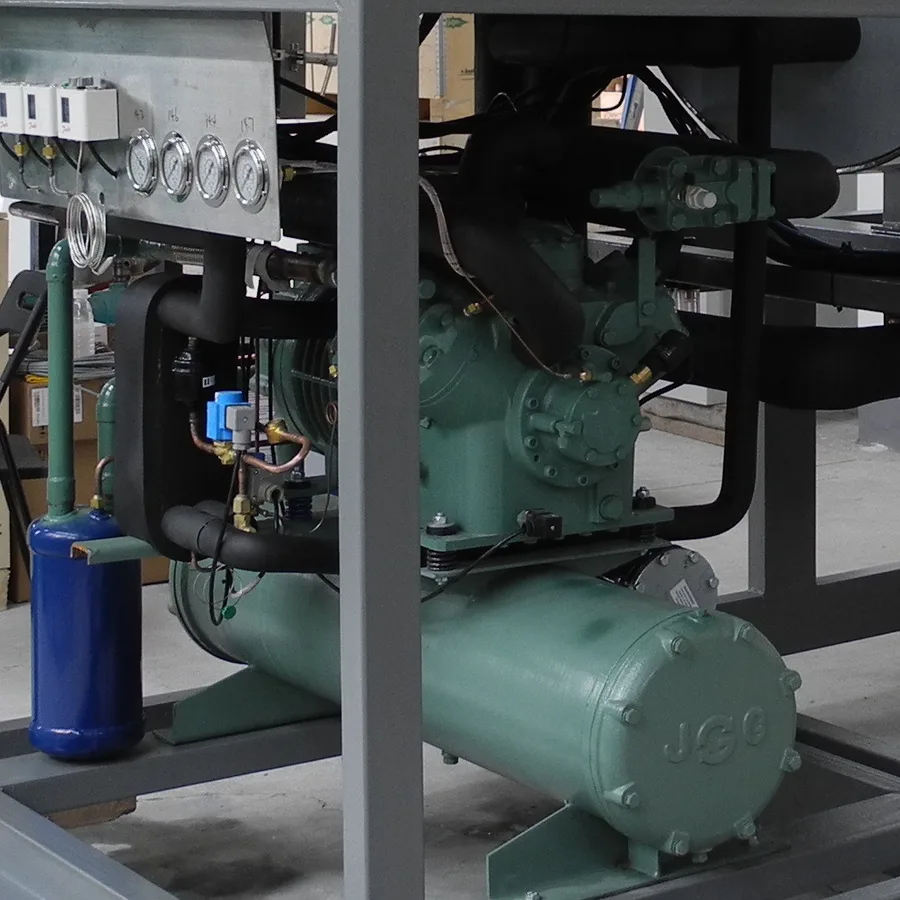

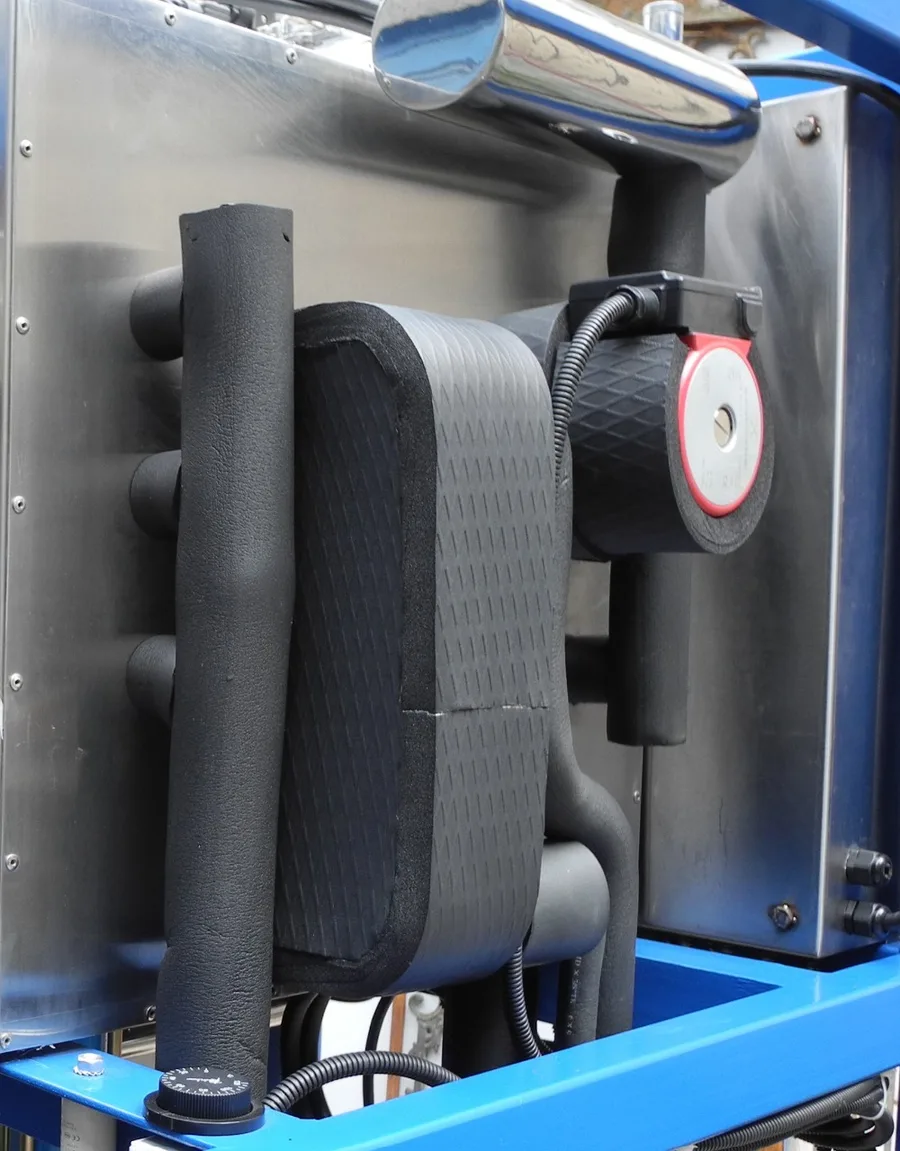

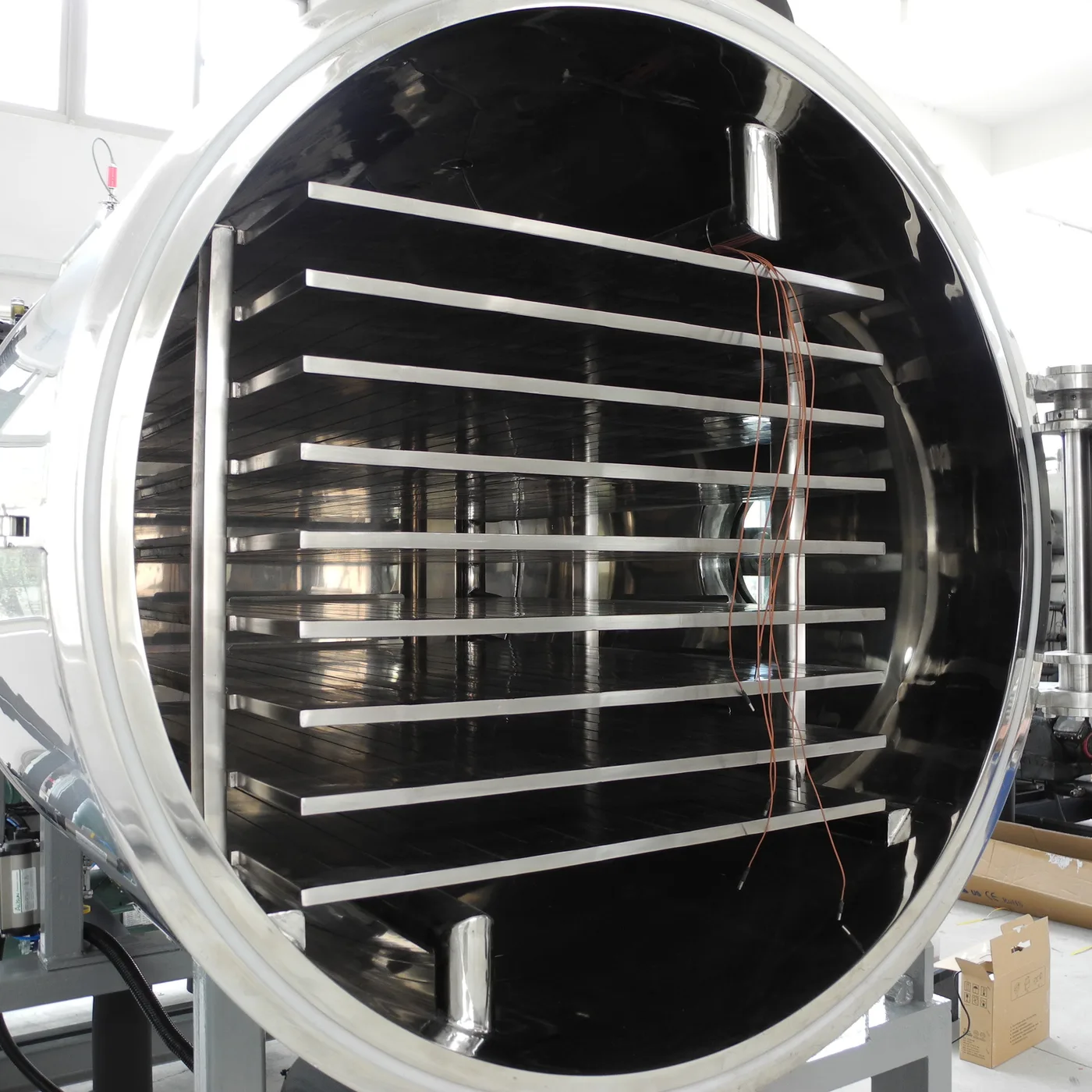

Product Show of Freeze Dry Machine

Application of Freeze Dry Machine

Vacuum freeze-drying technology has a wide range of applications in the fields of bioengineering, pharmaceutical industry, food industry, material science and deep processing of agricultural and sideline products.
