100ml Automatic Liquid Filling Machine High Safety Level

Name: 100ml Automatic Liquid Filling Machine High Safety Level
Brand: SED Pharma

100ml Automatic Liquid Filling Machine High Safety Level Machine Parameters of Liquid Filling Machine Range 5ml-100ml Speed 30-40bottles/minute Measurement ±1% Rated power 1.5KW Working voltage 220V Working air pressure 6-7kg/cm² Air-consuming amount 0.5m³/minute Net weight 700kg Contour Sizes 2400×1640×1580mm Product Description of Liquid Filling Machine This machine comes with 2 nozzles of filling head and two nozzles of capping heads. The machine can automatically fill 5-100ml glass and plastic bottle with aluminum cap. The machine adopts PLC control with touch scree

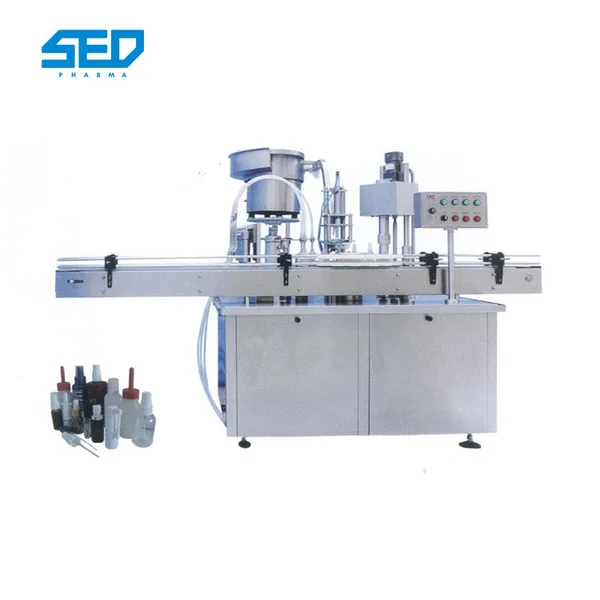

100ml Automatic Liquid Filling Machine High Safety Level, view 1

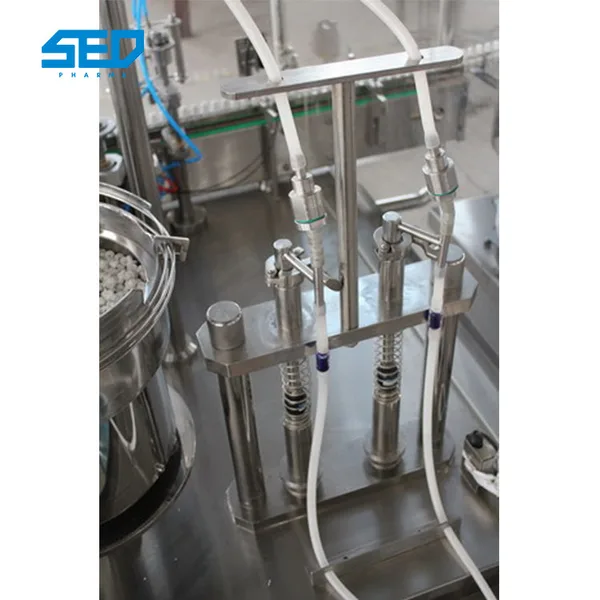

100ml Automatic Liquid Filling Machine High Safety Level, view 2

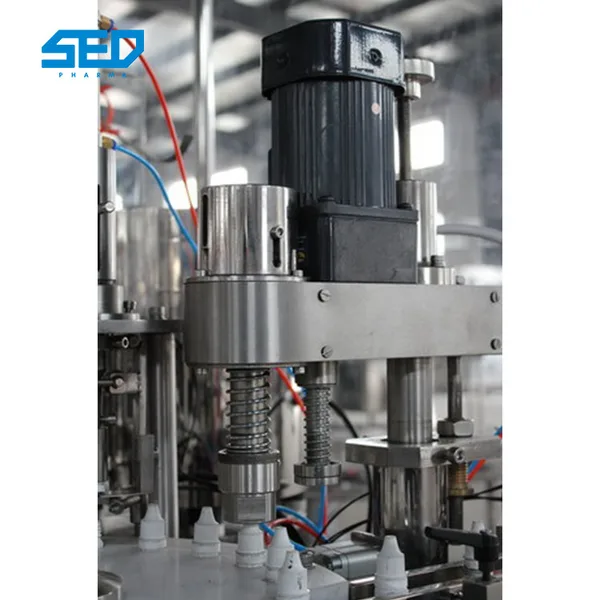

100ml Automatic Liquid Filling Machine High Safety Level, view 3

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-2/2GX

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	50-60 Days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: 100ml Automatic Liquid Filling Machine High Safety Level
Range: 5ml-100ml
Speed: 30-40bottles/minute
Rated power: 1.5KW
Working voltage: 220V
Working air pressure: 6-7kg/cm²
Air-consuming amount: 0.5m³/minute
Contour Sizes: 2400×1640×1580mm

100ml Automatic Liquid Filling Machine High Safety Level

Machine Parameters of Liquid Filling Machine

Range	5ml-100ml
Speed	30-40bottles/minute
Measurement	±1%
Rated power	1.5KW
Working voltage	220V
Working air pressure	6-7kg/cm²
Air-consuming amount	0.5m³/minute
Net weight	700kg
Contour Sizes	2400×1640×1580mm

Product Description of Liquid Filling Machine
This machine comes with 2 nozzles of filling head and two nozzles of capping heads. The machine can automatically fill 5-100ml glass and plastic bottle with aluminum cap.
The machine adopts PLC control with touch screen operation which is easily input and display any production parameter while the machine running, such as production speed, filling volume, capping speed, etc.
All machines parts are made of Stainless steel 304 with Organic Glass cover which meets the requirement of GMP.

Advantages of Liquid Filling Machine
1. Easy to install, simple to operate and require minimum maintenance for maximum performance and long machine lifetime.

2. Integrated digital control with PLC and touch screen controls for easy operation. All actions are controlled by high technology Panasonic servo system.

3. Protected with safety shield meet strict safety restriction.

4. Sturdy conveyor system driven by high quality motor. Adjustable conveyor guide rails to accommodate with different products.

5. Anti-dripping design to enable the clean conveyor surface and perfect finished product

6. No bottle-no fill system.

7. Bottle jammed detection.

8. Positioned by star wheel. It will automatic stop when no bottle or position is not accurately.

9. Fully adjustable for different bottle with different star wheel and capping head.

10. Adjustable electronic torque values to eliminate damage to caps and reduce insert wear.

11. While changing volume set, all pistons can be controlled by the servo system.Gentle touch on the touch screen can easily change the volume set.There's no need to adjust the piston one by one and mechanically.

12. Adjustable speed while fling process, for example filling slowly at the beginning, then accelerate to fast speed and at the end slow down once again which is the best insurance for the foamy product and avoid liquid dipping out from the bottle.

Products Show of Liquid Filling Machine
100ml Automatic Liquid Filling Machine High Safety Level product detail
Application of Liquid Filling Machine
