1.5KW 100bpm Flat Labeling Machine For Round Bottle

1.5KW 100bpm Flat Labeling Machine For Round Bottle



Product Description of Labeling Machine

​

Special stainless steel: full-illuminated design, exquisite shape, safe operation Single shrink label for the tray, touch screen automatic control, easy to operate Label control electric eye holder: original tail and electric eye combination, automatic detection, automatic positioning; improve membrane cutting accuracy.Change the standard fast, effort .



Product Parameters of Labeling Machine

Machine model	SED-TB
Capacity	100-150BPM
Size L*W*H	2100*850*2000mm
weight	600Kgs
Powder supply	220V, 60Hz
Eligibility percent	≥99.5%
Total powder	1.5 KW
Materials	PVC,PET,OPS
Thickness	0.03~0.13mm
Labels Length	40~220mm
Flat width	Max200mm
Inner Dia. Of Labels roll	3"-10" adjustable
Height	Max320mm
Diameter	Ø25- Ø134mm
Material	Glass,Metal ,Plastic
Shapes	Round , square, flat , curved cup-shaped bottles

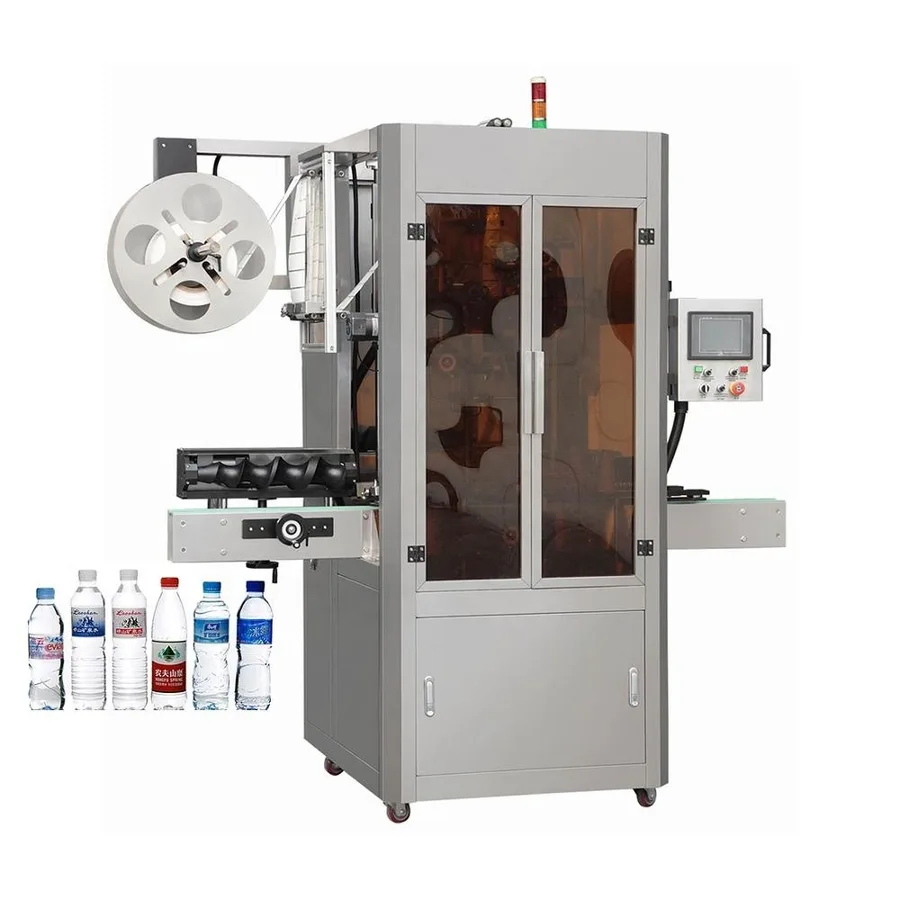

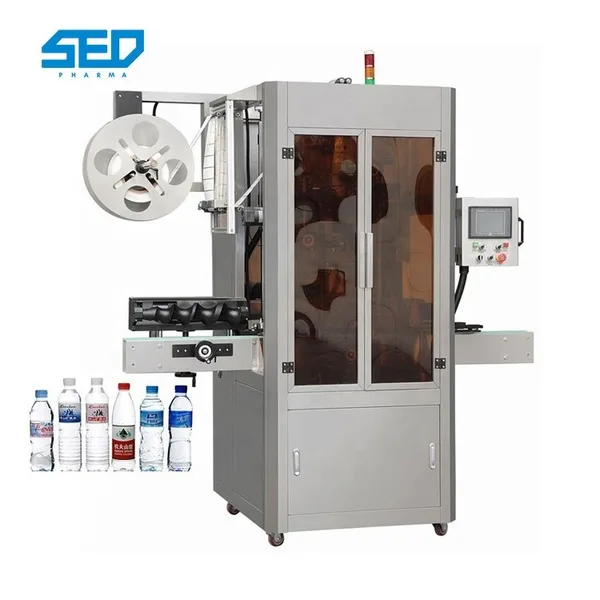

Products Show of Labeling Machine

Advantages of Labeling Machine



Driving unit:

Synchronized transmission and drive by gear with one belt. The change of transmission belt will be finished quickly. Compared to the type of traditional multilayer whose change and maintain need more than six hours, its maintenance is easy and maintain is simple, so it doesn't influence production.



Cutter head unit:

The new style cutting knife droved by servo motor, with high speed, more stable and precise, shrinks perfectively.Synchronous locating device enables the tolerable error to1mm.Unit cutter head plane design in China which applies to the container of D30mm-D130mm.You never need to change or debug it. Cutter head original transducer is inside the cutter head and when you take down cutter head, you do not need to correct the synchronous belt. It also has unique light touch human-machine screen, that means, auto search original location as well as safety and convenience which is ahead of other congener products.



Label feeding unit:

Single material shelf with reasonable height in order to make it convenient to install label. It adopts rotary potentiometer which enable the label feeding stable and fluent and avoid the error label length, label block and other problem when label feeding servo convey the label. It will stop automatically and give alarm light and also display on the touch screen.



Clean down unit:

Adopt with motor coordinating with double circular arc synchronous belt makes clean down plastic core-rubber-tires synchronously and ensures the label casting stably.



Bottle carrying system:

Adopted with mechanical transmission to drive the positioning belt on both sides. While changing the whole bottle carrying unit, the down and up, width are all controlled by one hand wheel aiming to synchronously and swiftly adjust.



Machine head up and down unit:

It adopts motor to up and down which enable the operation more convenient.



Electrical Configuration

It adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer; also, it adopts the positioning module to ensure the casting label precise, rapid and stable.
