Capsule Counting Machine

Vision Counting Machine 40-80 Bottles/min 220V for Pharmaceuticals

Automatic Mini Tablet Counter Vision Counting and Packaging Machine The visual counting machine integrates advanced image processing technology with automation control technology, primarily designed for accurate counting of granular materials. This equipment is widely used in pharmaceutical, food, and chemical industries to ensure precise formulation and product packaging. Introduction The vision counting machine is an automatic equipment that utilizes a high-precision camera to capture images and identify granular materials through sophisticated image processing algorithms

Product Details:

Model Number:	SED-8SJ

Request configuration

Configuration and product details

Technical overview

Production Capacity: 40 ～ 80 bottles/min
Power: 220V,50HZ
Goods Name: Vision counting machine
Counting Accuracy: ≥99.5%
Size Of Bottles: 20-300ml
Application: Pharmaceutical, Nutraceutical, and Food Industries
Filling Quantity: 2-9999pcs/bottle (adjustable)

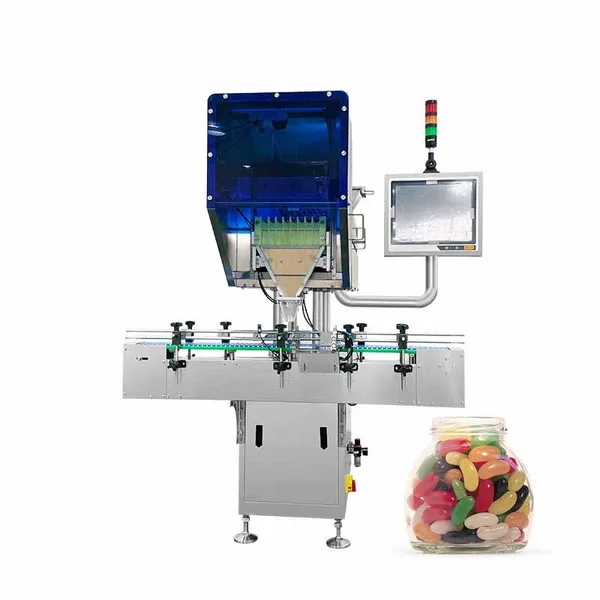

Automatic Mini Tablet Counter Vision Counting and Packaging Machine

The visual counting machine integrates advanced image processing technology with automation control technology, primarily designed for accurate counting of granular materials. This equipment is widely used in pharmaceutical, food, and chemical industries to ensure precise formulation and product packaging.

Introduction

The vision counting machine is an automatic equipment that utilizes a high-precision camera to capture images and identify granular materials through sophisticated image processing algorithms. It efficiently counts various shapes and sizes of particles including tablets, capsules, seeds, and candies.

Working Principle

Material conveying: Granular materials are uniformly fed into the counting area via vibrator bowl or conveyor belt.
Image capture: High-resolution camera captures materials in real-time as they pass through the counting area.
Image processing: Advanced algorithms analyze and count particles in the captured images.
Counting and output: Accurate counts are displayed on the operation interface or transmitted to control systems.

Major Components

Material supply system: Includes vibrator bowl and conveyor belt for uniform material dispersion.
Image collection system: High-resolution camera with lighting system for clear imaging.
Image processing system: Specialized software for rapid image analysis and counting.
Control system: Touch screen interface for parameter setting and operation control.
Output system: Transmits counting results to downstream equipment.
Intelligent detection system: Includes foreign material detection, alarm functions, and removal mechanisms.

Technical Parameters

Parameter	Specification
Counting range	Several granules to over 10,000 (model dependent)
Counting accuracy	±1% or better
Processing speed	Varies by material characteristics and configuration
Applicable materials	Various shapes including round, oval, and irregular
Power requirements	220V/50Hz (adjustable to regional standards)
Dimensions/weight	Varies by model and configuration

Applications

Pharmaceutical industry: Tablet and capsule counting and packaging
Food industry: Candy and chocolate bean counting
Chemical industry: Precise proportioning of chemical reagent particles
Agricultural sector: Seed counting and packaging

Features & Advantages

High accuracy with sub-millimeter counting precision using image processing technology

High efficiency with automated operation for improved productivity

Versatile design adaptable to various material types

User-friendly touch screen interface for easy operation

Comprehensive data recording for traceability and quality control

Removable components for easy maintenance and cleaning

Operation and Maintenance

Operator training required before initial use
Regular inspection of cameras, lighting, and mechanical components
Periodic cleaning and lubrication per manufacturer guidelines
Refer to manual for troubleshooting or contact technical support

Case Presentation

Pharmaceutical company: Implemented vision counting machine for accurate tablet counting and packaging, significantly improving production efficiency and product quality.

Food processing: Customized counting solution for candy manufacturer achieved high precision counting and fast packaging requirements.

Conclusion

The vision counting machine has become essential in modern production lines due to its precision, efficiency, and versatility. Continuous technological advancements will further enhance counting solutions across multiple industries.
