Powder Mixer Machine
Two Dimensional Dry Powder Mixer Machine For Food Chemical Pharmaceutical Use
Two Dimensional Dry Powder Mixer Machine For Food Chemical Pharmaceutical Use Parameter of Mixer Machine Number Item Unit Model/specification 1 Loading capacity L 7500 2 Max Loading Weight Kg/batch 4500 3 Total motor power kw 33.5 4 Overall size mm 5100×2500×3400 Product Description of Mixer Machine 1. For mixing dry powders or small granules in Food,Chemical and Pharmaceutical industry ; 2. Particularly good at mixing materials with quite different bulk density 3. Mixing vessel volume: 4500KG/Batch; 4. GMP design 5. Vacuum feeder can be equipped t
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-4500EH |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 Days after receiving the advanced payment |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per Month |
Configuration and product details
Technical overview- Name
- Two Dimensional Dry Powder Mixer Machine For Food Chemical Pharmaceutical Use
- Item Name
- Powder Mixing Machine
- Working Volume
- 1000 KG/Batch
- Motor power
- 33.5kw
- Dimension
- 5100×2500 ×3400mm
- Max Loading Weight
- 4500Kg/batch
- material
- stainless steel
- key word
- Mixer Machine
Two Dimensional Dry Powder Mixer Machine For Food Chemical Pharmaceutical Use
Parameter of Mixer Machine
| Number | Item | Unit | Model/specification |
| 1 |
Loading capacity |
L | 7500 |
| 2 | Max Loading Weight | Kg/batch | 4500 |
| 3 | Total motor power | kw | 33.5 |
| 4 | Overall size | mm |
5100×2500×3400
|
Product Description of Mixer Machine
1. For mixing dry powders or small granules in Food,Chemical and Pharmaceutical industry ;
Working principle of of Mixer Machine
SED-4500EH two dimensional motion dry powder mixing machine is a novel material mixer extensively used in phamaceutical, chemical, metallurgical, food, light and agricultical industries This machine can carry out highly even mixing of powders or granules, so that the mixe materials can reach their best effectiveness.

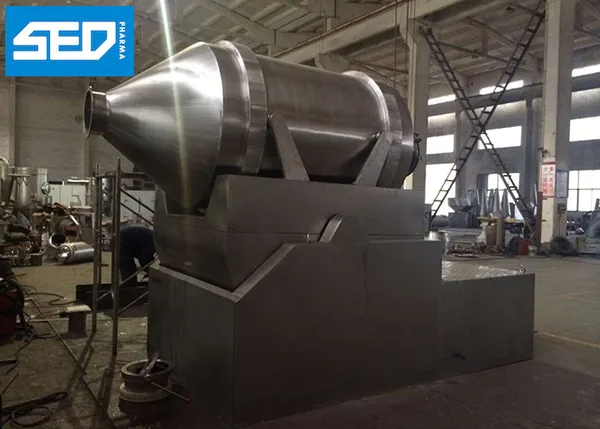

This mixer consists of mixing barrel, swing frame and support frame. The Double cone mixing barrel is mounted on support frame by four rollers which makes the mixing barrel rotate axially.
Meanwhile, the crank arm pushed and pulls the mixing barrel back and forth. So the mixing barrel will rock back and forth. Axial rotation and rock back and forth happens in a solid two dimensional space. Materials will be evenly mixed during rolling and rocking in a very short time.
2. No blind angle in the V-shells, no accumulation of materials, high speed-bar, efficient and shor mixing time.
4. Rotating valve is equipped for discharging.
5. Fully integrated motors and controls.
6. Can work with vacuum feeding system to create dust-free working condition.
Application of Mixer Machine
