Stainless Steel Double Cone Blender 50L Dry Powder Mixing Equipment



Stainless Steel Double Cone Blender 50L Dry Powder Mixing Equipment



It is suitable for mixing the powder and grain state materials in pharmacy, chemical, food, building materials and other industries.

Through the vacuum conveyor for the machine, send the powder or grain state materials into the double - taper container, or send the materials into the container manually.

As the container rotates continuously, the materials moves complexly in the container so as to get the uniform mixing.



Feature of Powder Mixing Machine

1. The powder material adopts the pneumatic large door structure, which has the advantages of fast discharge and no residue;

2. Manual butterfly valve or pneumatic butterfly valve is used for high-fineness materials or semi-fluid materials, and heating or cooling jackets can be configured;

3. There are two heating methods: electric heating and heat transfer oil heating;

4. The cooling process can directly inject cooling water into the jacket, the jacket heat exchange area is large, and the cooling speed is fast;

5. The ribbon-shaped blade is generally made into two layers or three layers. The outer helix gathers the material from both sides to the center, and the inner helix conveys the material from the center to the two sides, so that the material can form more eddy currents in the flow. , thereby speeding up the mixing speed and improving the mixing uniformity.



Main Parameter of Powder Mixing Machine ​



Volume	50(L)
Charge volume	≤10(L)
Barrel pressure	-0.1～0.15(MPa)
Jacket pressure	≤0.3(MPa)
Power	0.75kw
Inverter	0.75kw
Wall thickness	2(mm)
Weight	100(kg)

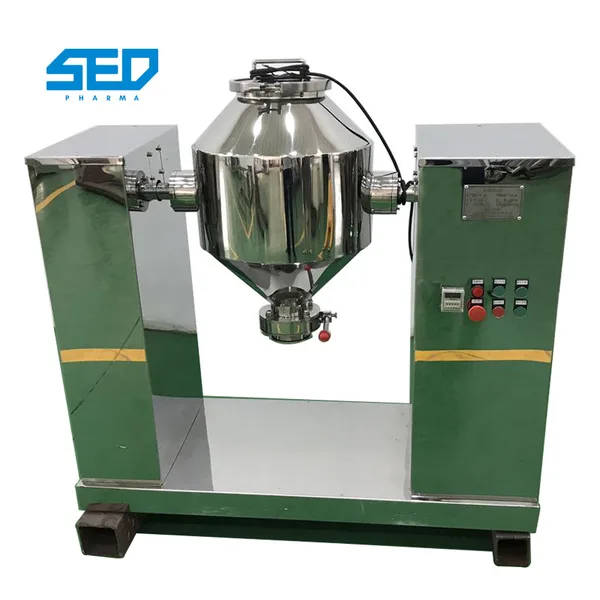

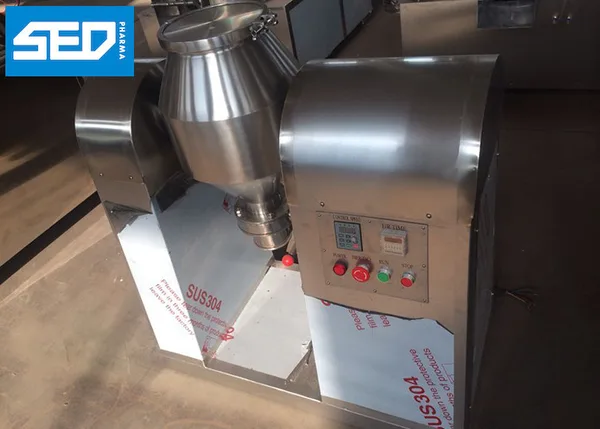

Product Show of Powder Mixing Machine ​

Application of Powder Mixing Machine
