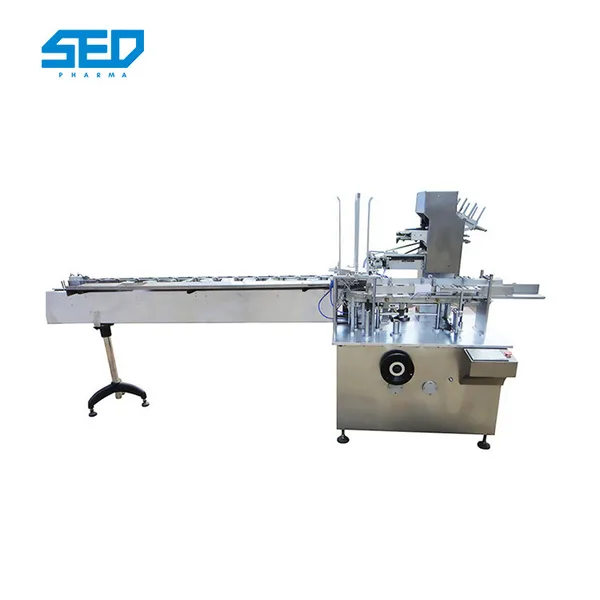

Tooth Paste Soap Horizontal Automatic Cartoning Machine

Product Description of Cartoner Packaging Machine​

This equipment is new model developping base on integrated domestic and foreign vanguard technology. It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.

This machine is suitable for blister package product, adjust automatic feeding structure conveniently, setup quantity of blisters on touch screen randomly.



On line product feeding and detecting, leaflet fold(1-4folds) and feeding, leaflet detecting, Canton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or prodcut and finished product out.



Product  Parameters of Cartoner Packaging Machine​

Item		Parameters
Encasing speed		30-100 boxes /min
Box	Quality requirement	250-350g/m*m[Base on carton size]
	Dimension range(L× W× H)	(70-180)mm× (35-85)mm× (14-50)mm
Leafle	Quality requirement	60-70g/m*m
	Unfolded leaflet specification	(80-250)mm× (90-170)mm
	Fold range	[1-4]Fold
Compressed air	Working pressure	≥ 0.6mpa
	Air consumption	120-160L/min
Power supply		220V 50HZ
Main motor power		0.75kw
Machine dimension(L× W× H)		3100mm× 1100mm× 1550mm
Machine weight		1400kg



Main Feature of Cartoner Packaging Machine



1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.

2. Adopt human-machine operation system.

3. Automatically stop when machine is overload.

4. Automatically reject lacking of package product and leaflet.

5. Automatically display trouble, Alarm and count finished products.

6. Stable performance, operation is easy.

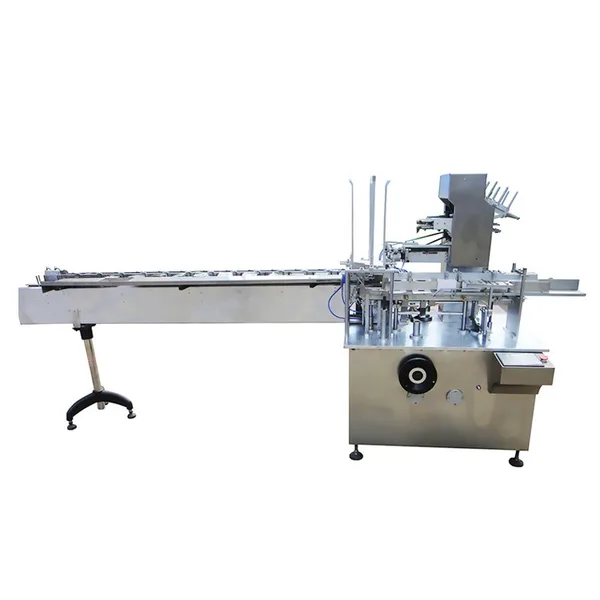

Show of Cartoner Packaging Machine

Application of Cartoner Packaging Machine
