Tablet Capsule Counting Machine Pharma Packing Machinery



Product Description of Capsule Counting Machine​



The equipment is patent capsule intelligent high precision automatic capsule capsule counting machine, model counting device can automatically achieve any number (odd, even, a precise number of tablets) bottle filling work.



The structure of small size low noise and smooth operation, small and medium-sized pharmaceutical companies, health care products factory, hospital preparation room, the ideal number of grain automatic bottling equipment.



Technical Parameters of Capsule Counting Machine​

Mould Changing Time	5 mins
Working Capaticy	20,000--40,000 capsules/hour
Counting Accuracy	100%
Suitable Capsule Size	000#, 00L#, 00#, 0L#, 0#, 1#, 2#, 3#, 4#, 5#
Bottle Diameter	130mm
Power Supply	220V 50HZ 1.2kw
Compressed Air	0.03 m³/min 0.7Mpa
Overall Dimension	1200*500*1400mm
Machine Weight	90kg



Trait of Capsule Counting Machine



1) Vertical orbit compensation count (patented technology), the number of grain accuracy can reach 99.9%, to avoid the traditional vibration or rotation of a large number of errors in the precision of the error.

2) Vertical orbit compensation count (patented technology),to achieve the number of bottling capsules quickly set all the figures in the same type of capsule,not need to replace the mold is very fast and convenient.

3) Host uses frequency conversion speed regulation can be soft start speed regulation sensitive, reliable and stable, and can bear large start-up torque.

4) The bottle conveyor is a conveyor belt type, for customers late connection reserved interface can be quickly connected to the auxiliary equipment (bottle machine, capping machine, etc.).

5) Control the use of touch screen man-machine interface PLC programmable controller technology can quickly set various parameters.

6) Light control technology automatic detection of no bottle or bottle will automatic alarm,reduce the capsule waste to the lowest.

7) All the mould using cylindrical pin positioning design to replace the mold can only take 5 minutes to install in place convenient and quick.

8) The contact parts of the drug use 304 stainless steel, in accordance with the GMP standard.

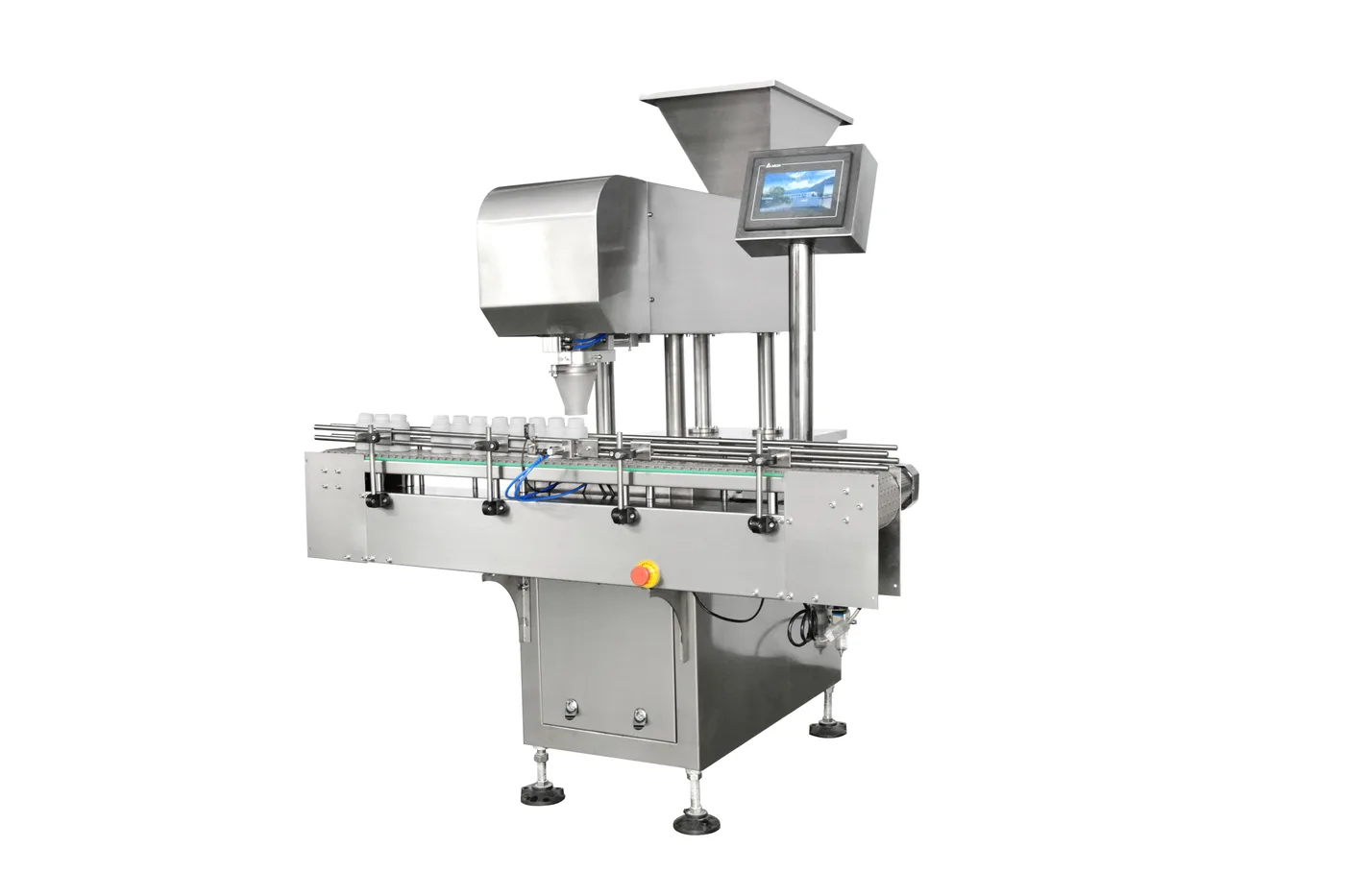

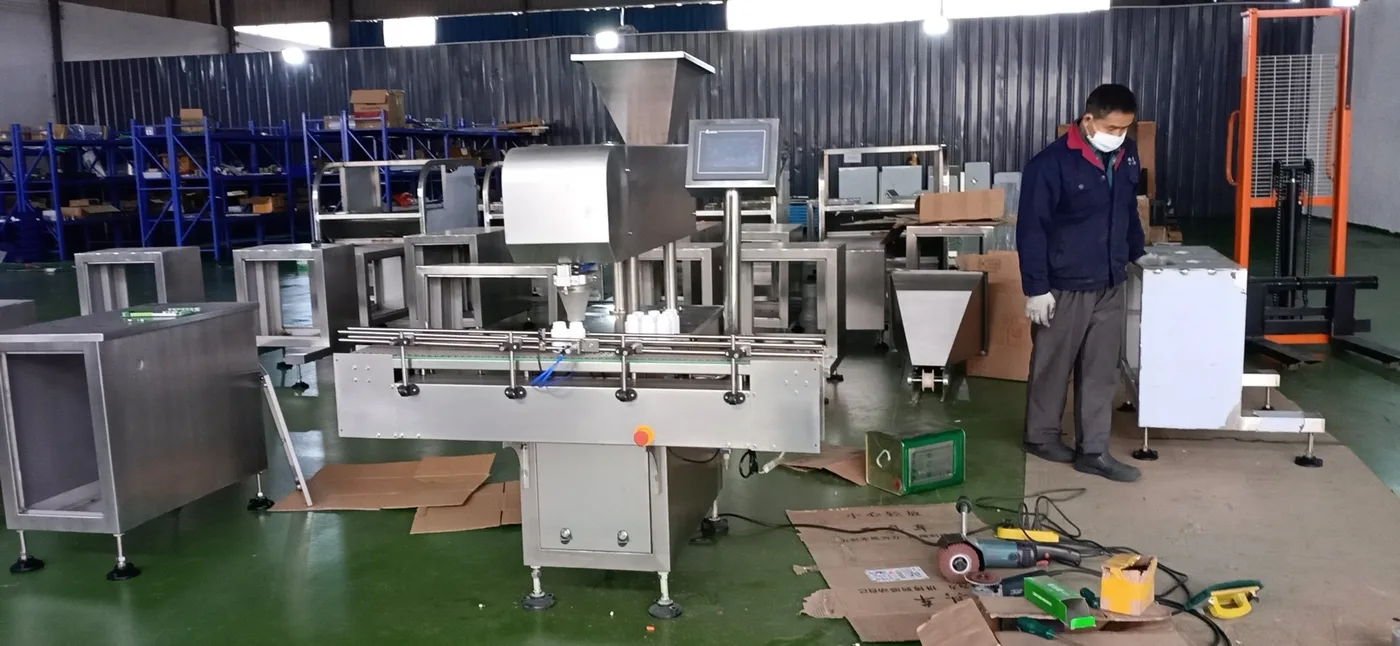

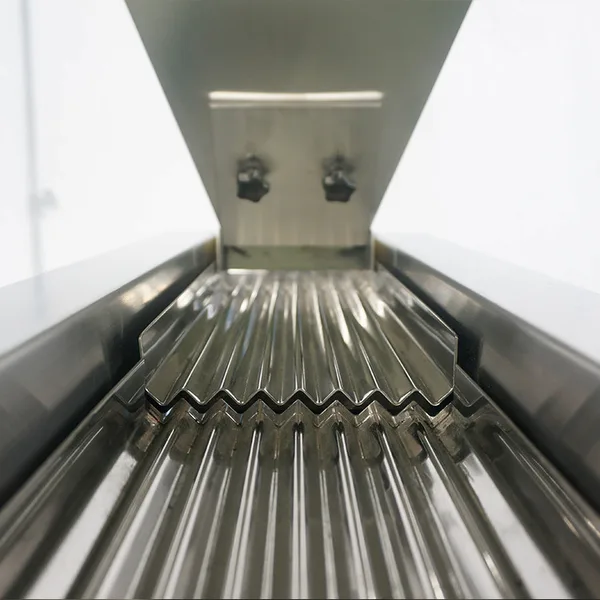

Product Show of Capsule Counting Machine



Application of Capsule Counting Machine



The electronic counting machine is mainly used in medicine, industry, chemical industry, food and other industries. It can be widely used in the counting and bottling of solid preparations, such as pills, sugar-coated tablets, plain tablets, soft and hard capsules and other granules of various shapes.
