Automatic Labeling Machine

Single Side Automatic Labeling Machine Round Bottle Use Servo Motor Driven Type

Name: Single Side Automatic Labeling Machine Round Bottle Use Servo Motor Driven Type
Brand: SED Pharma

Single Side Automatic Labeling Machine Round Bottle Use Servo Motor Driven Type Function characteristics of Sticker Labeling Machine 1) Control system: Use SIEMENS brand PLC control system, with high stable operation and extremely low failure rate. 2) Operation system: The man machine control 7 inch touch screen, directly visual interface easy operation, rich with help function and fault display function. 3) Check system: Use German LEUZE check label sensor, automatic check label station, stable and convenient don’t have much higher requirement for worker. 4) Send label s

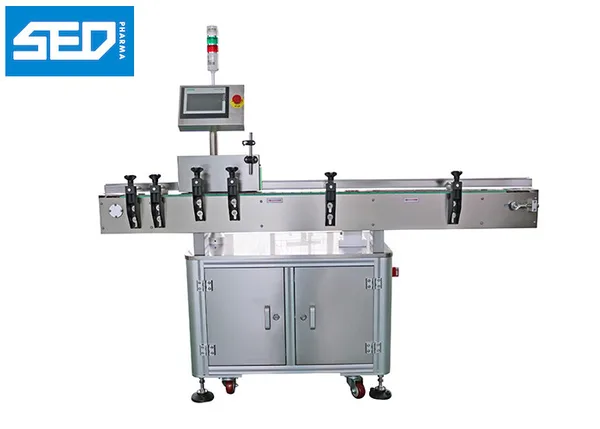

Single Side Automatic Labeling Machine Round Bottle Use Servo Motor Driven Type, view 1

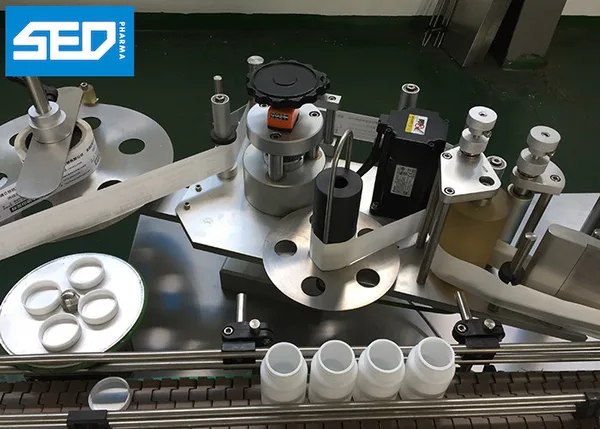

Single Side Automatic Labeling Machine Round Bottle Use Servo Motor Driven Type, view 2

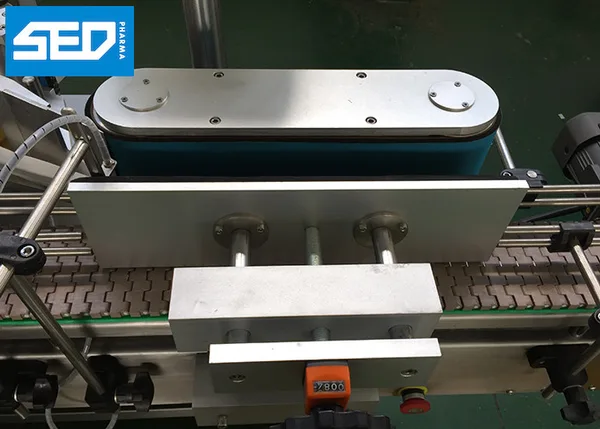

Single Side Automatic Labeling Machine Round Bottle Use Servo Motor Driven Type, view 3

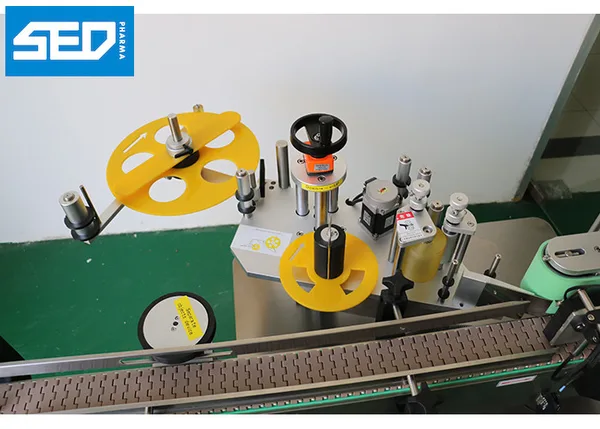

Single Side Automatic Labeling Machine Round Bottle Use Servo Motor Driven Type, view 4

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-YDT

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	30 days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: Single Side Automatic Labeling Machine Round Bottle Use Servo Motor Driven Type
Speed: 50-230 bottles per minute
Label accuracy: ±1 mm
Driven motor: Stepping Motor
Material: Stainless steel
Dimension: 1800(L)×700(W)×1270(H) mm
Item Name: Automatic Labeling Machine
Power Supply: 220V 50HZ Single phase(Customized)
key word: Automatic Labeling Machine

Single Side Automatic Labeling Machine Round Bottle Use Servo Motor Driven Type

Function characteristics of Sticker Labeling Machine

1) Control system: Use SIEMENS brand PLC control system, with high stable operation and extremely low failure rate.

2) Operation system: The man machine control 7 inch touch screen, directly visual interface easy operation, rich with help function and fault display function.

3) Check system: Use German LEUZE check label sensor, automatic check label station, stable and convenient don’t have much higher requirement for worker.

4) Send label system: German Avery labeling engine control system, stable with high speed.

Product Parameters of Sticker Labeling Machine

Model	SED-YDT
Capacity (pcs/min)	20-230
Driving Mode	German Avery Labeling engine
Labeling accuracy	±1mm
Labeling Speed(m/min)	≤35
Label Specification	adhesive sticker, transparent or opaque
Suit bottle size	Can customized
Suit label size	Height 20-160mm Length 25-300mm
The inner diameter or label roll	76mm(min)
The outer diameter of label roll	350mm(max)
Power	550w
Voltage	can customized, 110V/220V/380V
Machine size	1800x80x1500mm

The Scope of Application
The model SED-YDT Labeling machine suit for differnet size round shape products, such as bottle, jars ,cans in food, medicine, daily chemical and other light industries.

Products Show of Sticker Labeling Machine

Single Side Automatic Labeling Machine Round Bottle Use Servo Motor Driven Type product detail
