Single Phase Pill Capsule Counting Machine Using Shake Approach 70-90b/minute



Single Phase Pill Capsule Counting Machine Using Shake Approach 70-90b/minute



Product Description of Capsule Counting Machine​



This high-speed tablet and capsule counter combines 16-channel counting heads over a dual-track conveyor on a single frame to double the productivity without doubling the floor space. It is suitable for various kinds of tablets, caplets and capsules with



different shapes, sizes and properties.



Technical Parameters of Capsule Counting Machine​

Counting Speed	70-90b/minute for 50 pieces per bottle
Hopper capacity	Approx. 27 liters
Container height range	40mm-240mm(customized)
Container opening	customized based on the requirements
Container size	customized based on the requirements
Power source & consumption	1.5KW, 220v, single phase, 50-60HZ(Optional)
Compressed air pressure	87 Psi (6 Kgs/ cm2)
Dimensions	2160*1530*1700mm
Weight	710kg
Working direction	Left → Right (or Right → Left)



Working Principle of Counting Machine



When working, pour the medicine particles into the top hopper, and by properly adjusting the primary, intermediate and final stage vibrating feeders, the piled medicine particles in the hopper gradually slide down to the blanking port along the vibrating groove plate into a continuous strip. .



Then the drop detection channel one by one adopts the principle of photoelectric effect to input the working signal generated by the infrared dynamic scanning sensor when the medicine particles fall into the high-speed microprocessor, and realizes the counting function through the cooperation of the circuit and the program.



Trait of Capsule Counting Machine:

1. Suitable all standard and irregular shapes and all sizes of tablets, capsules, caplets etc.



2. Counting discrepancies is less than 1%



3. Operation stable and lower noise



4. full-set protecting device keep operation steady and reliable

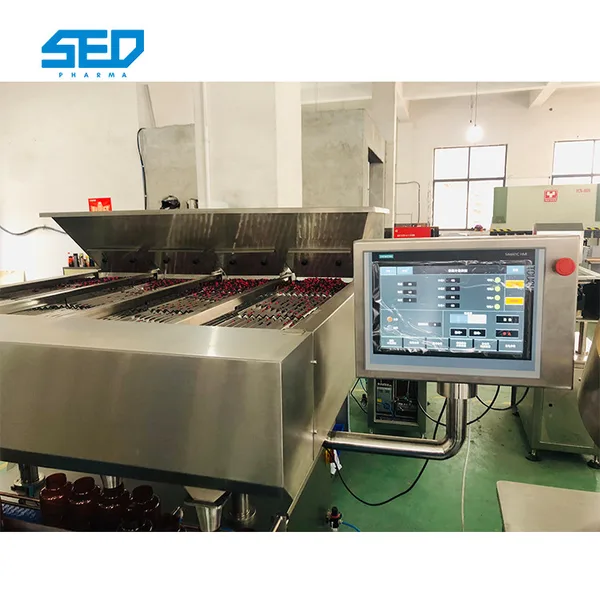

5. Touch screen Control System which is easy to control



6. Simple Straight Forward Operator Controls



7. On-Screen trouble description which is easy to solve



8. Stainless Frame

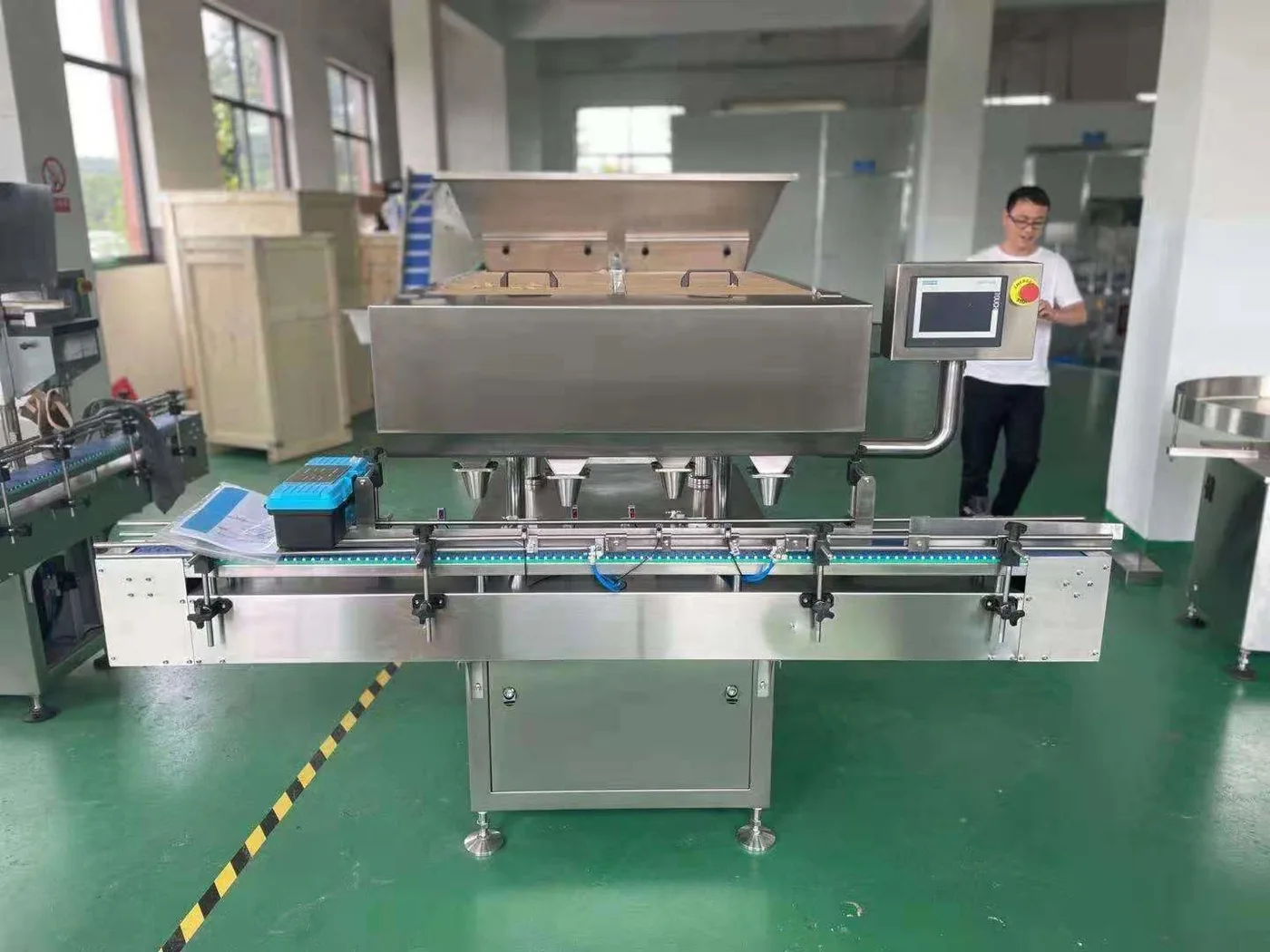

Machine Show of Capsule Counting Machine

Application of Capsule Counting Machine



SED-32S automatic counting machine is specially designed for counting tablets, hard capsules, softgel and chewing gums, etc. Widely used in pharmaceutical industry, chemical industry, food and other industries.
This machine adopts 32 sets imported counting sensor for counting with 32 guiding way .
