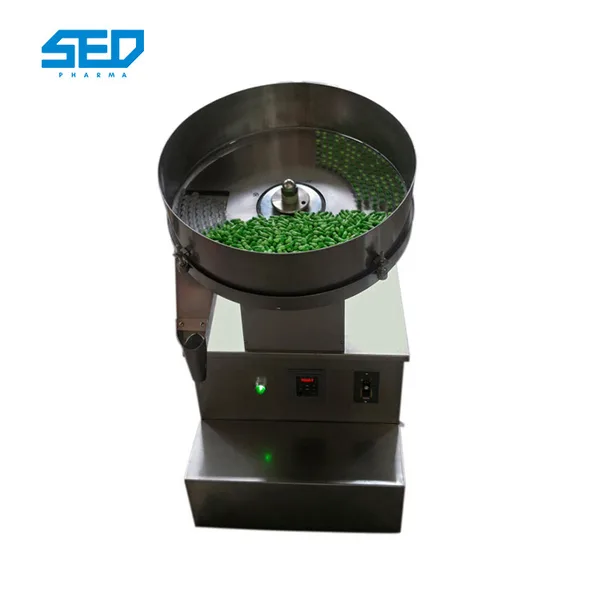

Semi Automatic Vibrating Pharmacy Pill Counter Machine



Product Overview of Pill Counter Machine

The unique counting template ensures that the machine can count and fill regular tablets and pills but also irregular tablets and capsules.



Eccentricity sifting device our company designs and develops independently is a national patented product, which overcomes the problems other companies meet: gear-driven device is high noise, easily damaged and difficult to adjust.

The machine is super-mute and variable frequency controlled. It is controlled through PLC based system, so it runs reliably. The machine makes use of international brand photoelectric controls for inspecting if lacking bottle and if bottle jammed to realize prompt stop once malfunction occurs.



And it also has protective functions against over-load, over-current, under-voltage, over-voltage, etc. Materials in contact with medicament conform to requirements of GMP.



Product Parameters of Pill Counter Machine

Model	SED-1BS
Hole	200pcs
Range	1-200pcs/time
capacity	10-50bottles/minute
Power supply	220V,550W
Machine Weight	130kg
Machine Size L × W × H (mm)	55×65×96(cm)



Feature of Pill Counter Machine​



1)Compatibility, high accuracy, wide application and use of the Company's original anti-dust photoelectric detection of high technology, can count Tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pill count to bottling;



2)Vibratory cutting drugs do not damage;



3)A high degree of intelligence, with no bottle is not the number of self-fault detection alarm and many other control functions;



4)Compact structure, stability and durability, and no regular replacement parts, small footprint, the use of low-cost;



5)To facilitate the replacement of species, can automatically take-off and landing, demolition cleared without any tools, convenient and quick;



6)Chinese dialogue control panel, can store 10 ~ 20 group of species parameters, adjusted to facilitate the use of special;



7)Fully automatic operation, with the Upper and Lower Union Road, intelligent control of processes, coordination, and no special operation, labor-saving devices.



8)Low prices, especially for small-volume, variety and more manufacturers use. Control chip imported to the United States, photoelectric sensors for Taiwan's imports.



Show of Pill Counter Machine

Application of Pill Counter Machine

This machine is designed for laboratory production and small batch production. Tabletop style for tablets and capsules, yet small and lightweight.



Start with one bottle at a time and automatically count the next bottle when finished, making it easy to pick up and put down bottles by hand. Quantity of capsules suitable for filling capsule bottles and capsule packs.



It is the most suitable counting tool with the characteristics of accurate, fast counting, healthy and avoiding touching capsules. According to the shape design of capsules, pills and honey pills, counting boards can be used for counting.
