Tube Filling And Sealing Machine

SED-80RG 12 Stations Automatic Tube Filling Sealing Machine With 70 - 80 Tubes Per Minute Capacity

Name: SED-80RG 12 Stations Automatic Tube Filling Sealing Machine With 70 - 80 Tubes Per Minute Capacity
Brand: SED Pharma

SED-80RG 12 Stations Automatic Tube Filling Sealing Machine With 70 - 80 Tubes Per Minute Capacity Product Description of Tube Filling And Sealing Machine This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date

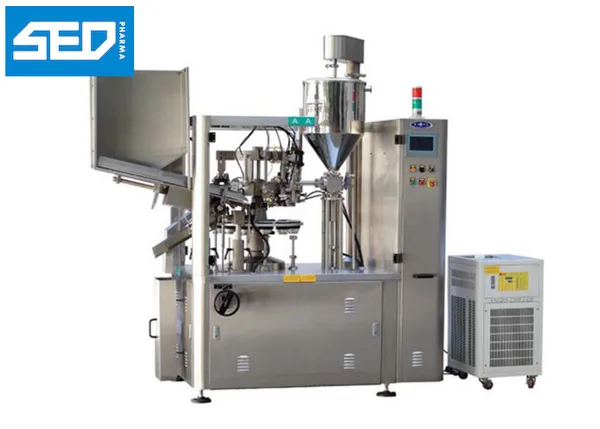

SED-80RG 12 Stations Automatic Tube Filling Sealing Machine With 70 - 80 Tubes Per Minute Capacity, view 1

SED-80RG 12 Stations Automatic Tube Filling Sealing Machine With 70 - 80 Tubes Per Minute Capacity, view 2

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-80RG

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	35 days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: SED-80RG 12 Stations Automatic Tube Filling Sealing Machine With 70 - 80 Tubes Per Minute Capacity
Type: Filling Machine
Warranty: 1 Year
Integrated Structure: Union mode
Body Material: Stainless Steel 304
Power Supply: 50Hz/380V
Main Motor: 1.5KW
Hot Air Generator: 3KW
material: stainless steel
key word: Tube Filling And Sealing Machine

SED-80RG 12 Stations Automatic Tube Filling Sealing Machine With 70 - 80 Tubes Per Minute Capacity

Product Description of Tube Filling And Sealing Machine

This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine.

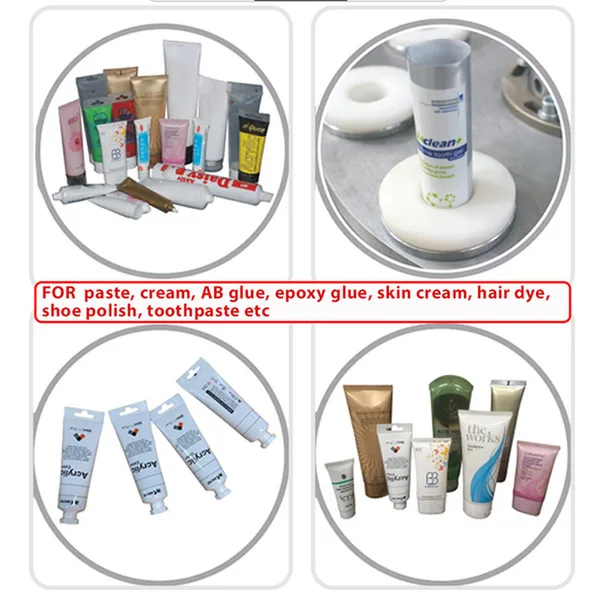

It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically. It’s ideal equipment for aluminum tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.

Product Parameters of Tube Filling And Sealing Machine

Power, Main Motor etc.
	Power Supply	50Hz/380V 3P
	Main Motor	1.5KW
	Hot Air Generator	3KW
	Jacket barrel heating power	3 KW		Optional,needs extra cost
	Jacket barrel blending power	0.18 KW		Optional,needs extra cost
Production Capacity
	Operation Speed		75/min/max
	Filling Range		Plastic tube 3-240ml
	Suitable Tube Length		210mm
	Suitable Tube Diameter		12.5-50mm
Pressing Device
	Pressing Guiding Main Component	SMC
Pneumatic Control System
	Low Voltage Protection	SMC
	Pneumatic Component	AIRTAC
	Working Pressure	0.5-0.6MPa
	Compressed Air Consumption	1.5m³/min

Feature of Tube Filling And Sealing Machine

1. With 12 stations and matching with manipulator, the machine is able to meet different type of tail folding, sealing requirements of Alu tube. It is a multi-purpose machine.

2. Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure).

3. Servo control makes it precise and convenient to adjust the filling amount by touch screen.

4. According to the different length of the tube, height of tube chamber can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy.

Products Show of Tube Filling And Sealing Machine

SED-80RG 12 Stations Automatic Tube Filling Sealing Machine With 70 - 80 Tubes Per Minute Capacity product detail
