Tube Filling And Sealing Machine

SED-60RG Pharmaceutical Use Plastic Tube Filling And Sealing Machine With Water Chiller System

Name: SED-60RG Pharmaceutical Use Plastic Tube Filling And Sealing Machine With Water Chiller System
Brand: SED Pharma

SED-60RG Pharmaceutical Use Plastic Tube Filling And Sealing Machine With Water Chiller System Product Description of Tube Filling And Sealing Machine The machine can automatic orientate eye marks ,filling,sealing ,printing date and cutting the end.This machine is widely used in daily cosmetic medicine and food industries . Characteriestics : A reliable thermo-air heating system composes of high efficient heater and stable flow meter imported from Germany are applied . It adopts touch screen ,PLC control,auto tube feeding and positioning The seal is firm and high e

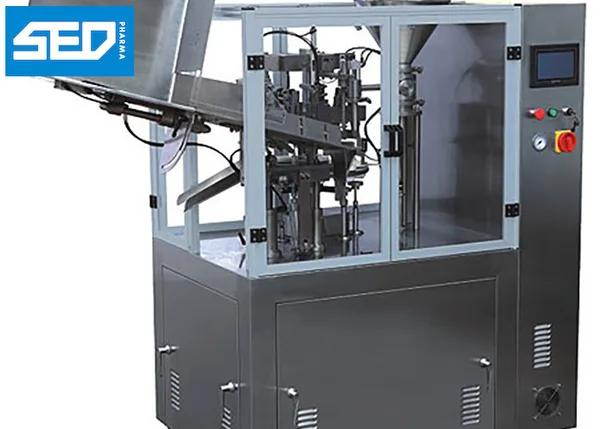

SED-60RG Pharmaceutical Use Plastic Tube Filling And Sealing Machine With Water Chiller System, view 1

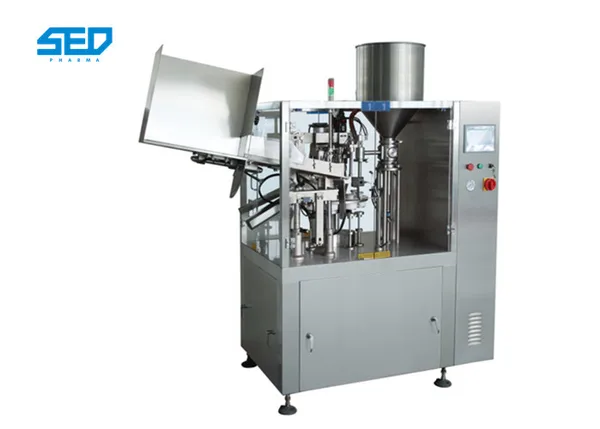

SED-60RG Pharmaceutical Use Plastic Tube Filling And Sealing Machine With Water Chiller System, view 2

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-60RG

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	35 days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: SED-60RG Pharmaceutical Use Plastic Tube Filling And Sealing Machine With Water Chiller System
Capacity: 30-50 tubes/min
Tube Length: 50-300mm (customizable)
Automatic Grade: Automatic
Compressed air consumption: 1.1m³/min
Filling Accuracy: ≤±1%
Air Supply: 0.55-0.65Mpa
Filling Volume: 5-250ml/piece (Adjustable)
material: stainless steel
key word: Tube Filling And Sealing Machine

SED-60RG Pharmaceutical Use Plastic Tube Filling And Sealing Machine With Water Chiller System

Product Description of Tube Filling And Sealing Machine

The machine can automatic orientate eye marks ,filling,sealing ,printing date and cutting the end.This machine is widely used in daily cosmetic medicine and food industries .

Characteriestics : A reliable thermo-air heating system composes of high efficient heater and stable flow meter imported from Germany are applied .

It adopts touch screen ,PLC control,auto tube feeding and positioning The seal is firm and high efficient .The filling heads in different specifications are prepared for materials in different thickness .

Product Parameters of Tube Filling And Sealing Machine

Name	Data
Dimension (L×W×H)	1950×1000×1800mm
Weight	850Kg
Power supply	50Hz/380V 3P
Main motor power	1.1KW
Heating power	3KW
Water chiller power	1.5KW
Speed	30-50/min/max
Filling range	3-250ml
Tube length	50-210mm
Tube diameter	12-50mm

Feature of Tube Filling And Sealing Machine

1) According to the different length of the tube, height of tube chamber can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy.

2) The mechanical linkage photo sensor precision tolerance is less than 0.2mm. The chromatic aberration scope between tube and eye mark is reduced.

3) Photo-electronic, electric, pneumatic integrative control is applied with the machine. No tube, no filling. It gives an alarm when low pressure occurs. The machine stops automatically if tube error or open the safety door.

4) Three-layer jacket instant heater with inside air heating, it won’t damage the pattern on outer wall of tube and achieves firm and beautiful sealing effect.

Products Show of Tube Filling And Sealing Machine

SED-60RG Pharmaceutical Use Plastic Tube Filling And Sealing Machine With Water Chiller System product detail
