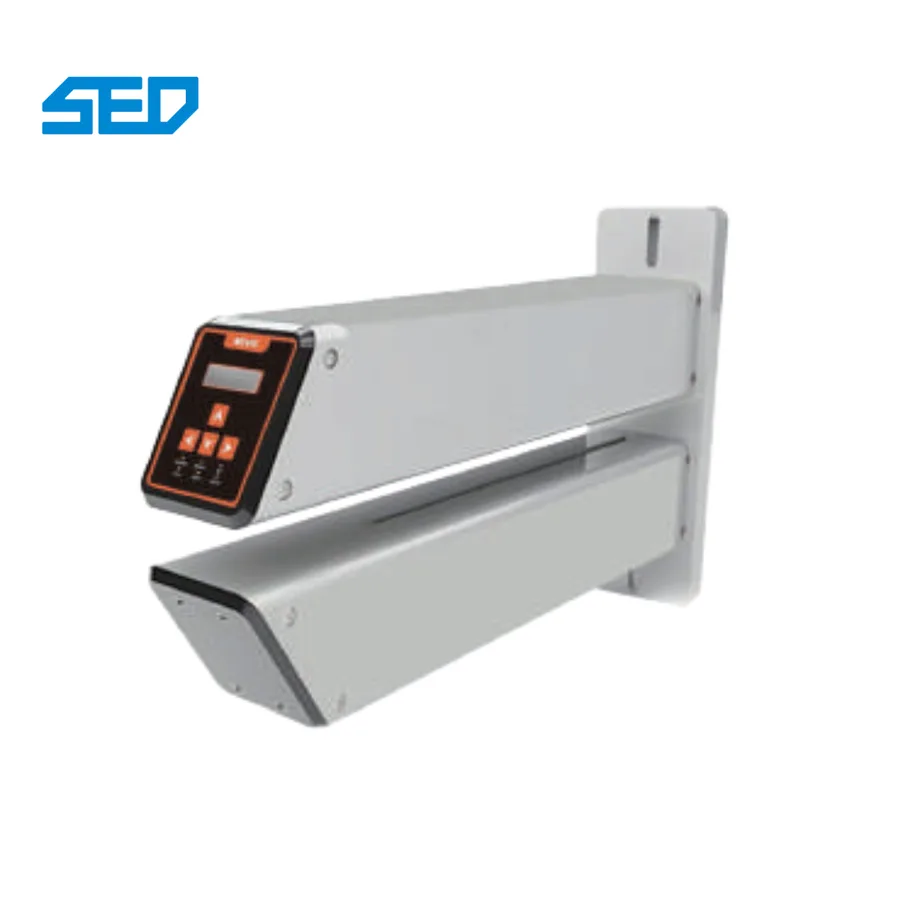

SED-320SJT-F Pinhole Detector Machine
Ensure the integrity of your pharmaceutical packaging with the SED-320SJT-F Pinhole Detecter Machine.
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-320SJT-F |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C,,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- SED-320SJT-F Pinhole Detector Machine
- Inspection Item
- Tearing and micropores
- Detection Principle
- Internationally used gallium arsenide emitter and receiver (receiving infrared and light)
- Accuracy
- 10 μm, 15 μm, 25 μm, 35 μm, 50 μm, 75 μm, and 100 μm (can be adjusted and locked with buttons)
- Working Voltage
- Stable 24VDC
- key word
- pinhole detector machine, Pinhole Detector, pinhole detector for aluminium foil, pinhole detection system
Product Overview of SED-320SJT-F Pinhole Detector Machine
Ensure the integrity of your pharmaceutical packaging with the SED-320SJT-F Pinhole Detecter Machine. Designed for the rigorous demands of the nutraceutical and pharmaceutical industries, this system utilizes advanced Gallium Arsenide (GaAs) emitter and receiver technology to detect even the smallest micropores and tears in foil and film.
Product Parameters of SED-320SJT-F Pinhole Detector Machine
|
Model |
SED-320SJT-F |
|
Detection Principle |
Internationally used gallium arsenide emitter and receiver (receiving infrared and light) |
|
Inspection Item |
Tearing and micropores |
|
Accuracy |
10 μm, 15 μm, 25 μm, 35 μm, 50 μm, 75 μm, and 100 μm |
|
Detect Width |
260 MM, 320 MM or customized according to customer requirements |
|
Rejection System |
If the machine is controlled by PLC, the detection system can use the removal system of the bubble wrap packaging machine. |
|
Working Voltage |
Stable 24VDC |
|
Operating Current |
1.5 A |
Feature of SED-320SJT-F Pinhole Detector Machine
- Micro-Level Accuracy: Adjustable detection sensitivity from 10 μm to 100 μm, ensuring zero-defect packaging.
- Advanced Detection Technology: Uses internationally recognized infrared/light receiving principles for stable, high-speed performance.
- Flexible Integration: Seamlessly connects with PLC-controlled blister machines for automatic rejection, or operates as a standalone unit with a custom rejection system.
