Visual Inspection Equipment
Bottle Body Cap Inspection Machine - High-Speed Vision Inspection System
Product Overview of Bottle Body Cap Inspection Machine - High-Speed Vision Inspection System The SED-300SJT-B is an advanced vision-based inspection system designed for pharmaceutical and packaging industries. With an embedded structure and high-precision imaging technology, it ensures reliable detection of cap sealing defects and bottle quality issues. Equipped with 5 synchronized 2D cameras, the system provides full-angle inspection for bottles and caps, ensuring product integrity before and after filling. Product Parameters of Bottle Body Cap Inspection Machine - High-Sp
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-300SJT-B |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | $150,000~$200,000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C,,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Bottle Body Cap Inspection Machine - High-Speed Vision Inspection System
- Speed
- 18,000 bottles/hour
- Weight
- Approx. 200 kg
- Power Supply
- AC 220V / 50Hz
- key word
- bottle cap inspection machine, vision inspection system for bottles, pharmaceutical bottle inspection equipment
- Inspection Range
- Round bottles (20ml – 50ml)
Product Overview of Bottle Body Cap Inspection Machine - High-Speed Vision Inspection System
The SED-300SJT-B is an advanced vision-based inspection system designed for pharmaceutical and packaging industries. With an embedded structure and high-precision imaging technology, it ensures reliable detection of cap sealing defects and bottle quality issues.
Equipped with 5 synchronized 2D cameras, the system provides full-angle inspection for bottles and caps, ensuring product integrity before and after filling.
Product Parameters of Bottle Body Cap Inspection Machine - High-Speed Vision Inspection System
|
Model |
SED-300SJT-B |
|
Dimensions (L×W×H) |
1000 × 700 × 1700 mm |
|
Inspection Range |
Round bottles (20ml – 50ml) |
|
Inspection Speed |
18,000 bottles/hour |
|
Inspection Content |
Cap Inspection: Tamper ring gap/leakage, tamper ring damage, broken ring, missing cap, high cap, dirty cap, burrs, misaligned cap, scratches, cracks, bottle leakageBottle Inspection: Contamination, black spots, damage, insufficient neck material, poor cutting edge, foreign objects at bottle bottom |
|
Power Supply |
AC 220V / 50Hz |
|
Power Consumption |
0.5 kW |
|
Machine Weight |
Approx. 200 kg |
Feature of Bottle Body Cap Inspection Machine - High-Speed Vision Inspection System
1. Superior Imaging Performance
- Equipped with 5 customized 2D cameras
- Delivers higher resolution and better detail recognition compared to standard industrial cameras at the same resolution
- Waterproof and moisture-resistant design ensures stable performance in demanding environments
2. Comprehensive Bottle Inspection
- Full coverage inspection of bottle cap and shoulder with no blind spots
- Detects leakage at the bottle shoulder
- Supports post-filling cap sealing inspection
3. User-Friendly Design
- Quick and easy adjustment of inspection stations
- Multi-channel design to improve production capacity
- Compatible with multiple bottle specifications
4. Compact & Easy Integration
- Embedded design for seamless installation
- Can be integrated into existing production lines with minimal modification
- No impact on current production capacity
5. Multi-Angle Inspection
- Uses five 2D vision angles combined with advanced image-processing algorithms
- Ensures accurate and reliable defect detection
6. Strong Compatibility
- Compatible with different cap types, including yellow caps and white caps

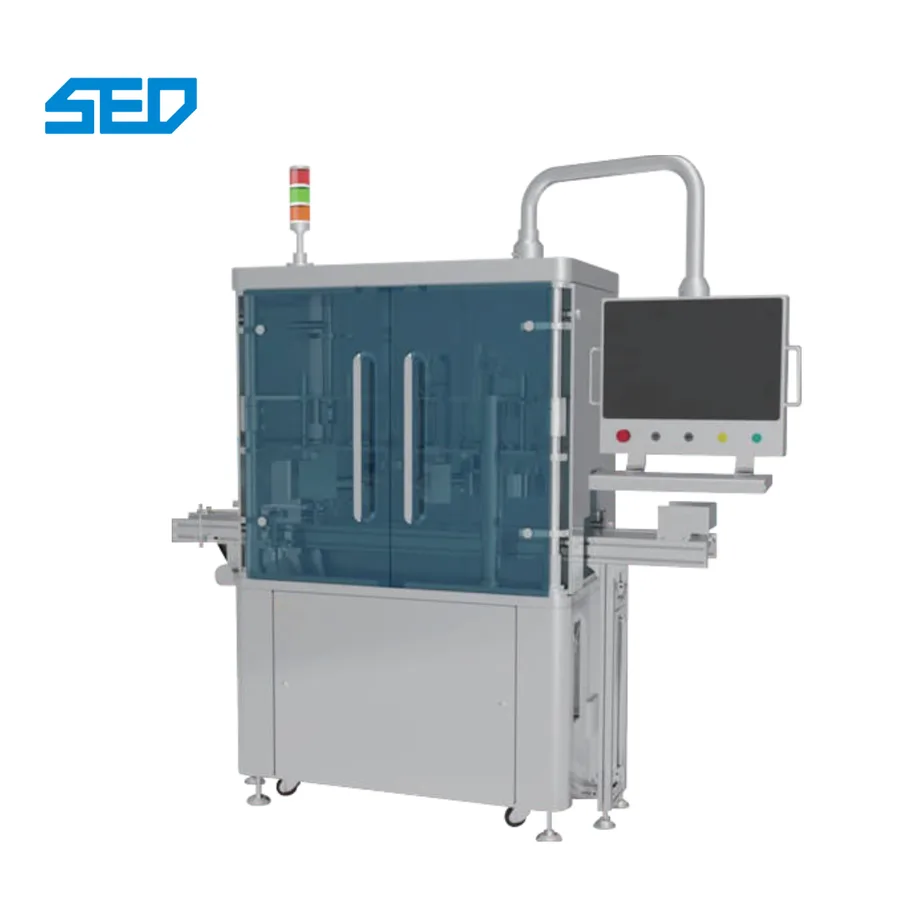

Show of Bottle Body Cap Inspection Machine - High-Speed Vision Inspection System
