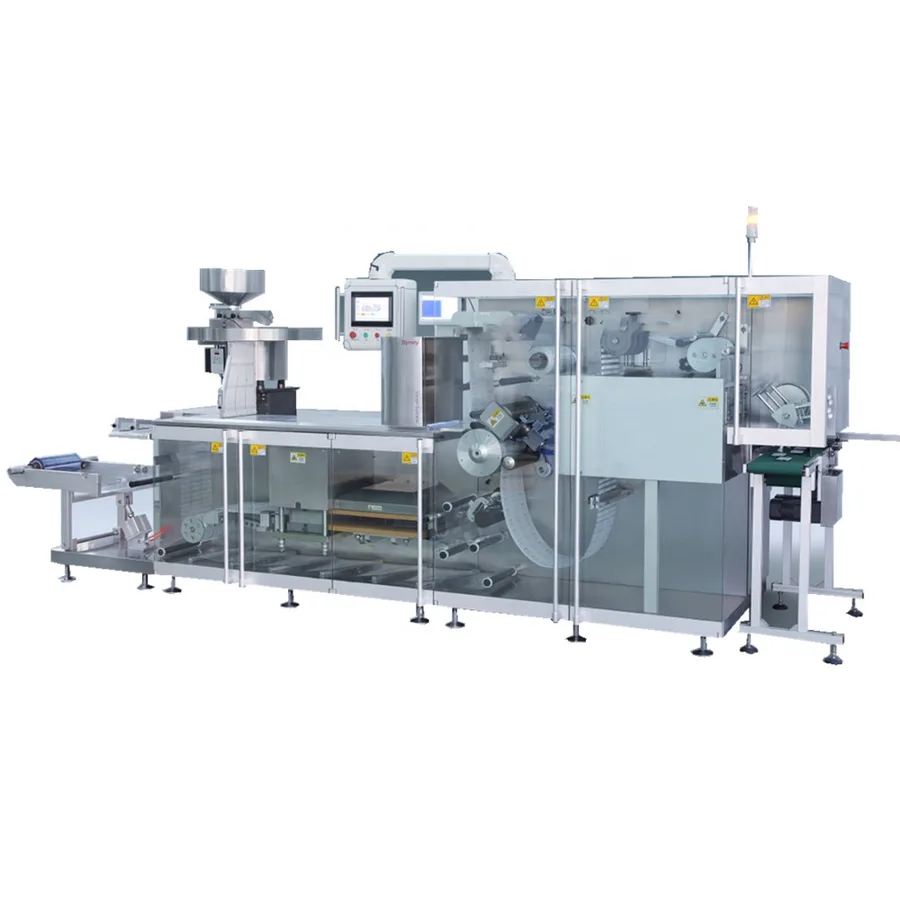

SED-320GP 150 Cuttings Per Minute Automatic Packing Machine 20kw Tablet Blister Packing Machine

SED-320GP 150 Cuttings Per Minute Automatic Packing Machine 20kw Tablet Blister Packing Machine



Product Description of Automatic Packing Machine​

The machine is new product which is improved based on customer's requirements. It's suitable for packaging of all kinds of liquid and solid in medium & small pharmaceutical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc.



It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce small quality and many kinds of products.



Product Parameters of Automatic Packing Machine

Model	SED-320GP
Cutting Speed	240 times/minute
Maximum forming depth	12mm
Max forming area and depth	240×320(L×W)
PVC	<φ700
PTP	<φ250
Dimension	4360×1350×1950mm
Compressed air	0.5-0.7Mpa
weight	3500kg
total power	20kw 380V/ 50Hz



Advantages of Automatic Packing Machine​



1) Travel scope can be adjusted. Mould is located by located groove so that it's easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.



2) The material is fed automatically. The mould and feeding equipment can be designed as user's requirements.



3) The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine's life.



4) The equipment of trace pressing, batch number printing and scrap-collecting can be chose.



5) Manipulator grip and tow wrapper, straight to-and-fro running, synchronize accurately and stably.



6) Speed is shifted by step-less transducer; the operation panel of PC cycle (can be Adopt interface of human-machine).

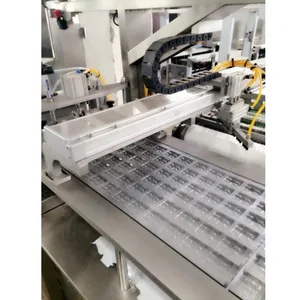

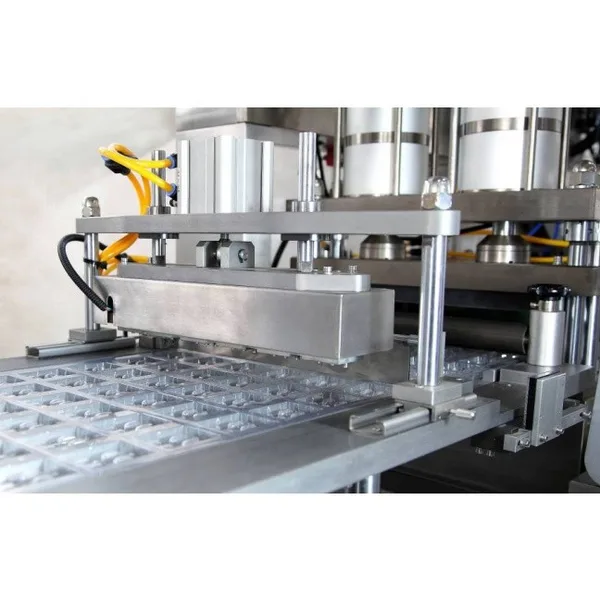

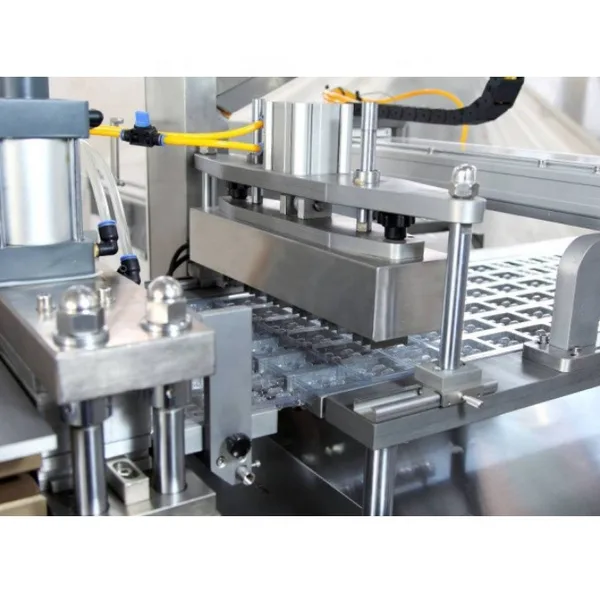

Products Show of Automatic Packing Machine
