Blister Packing Machine

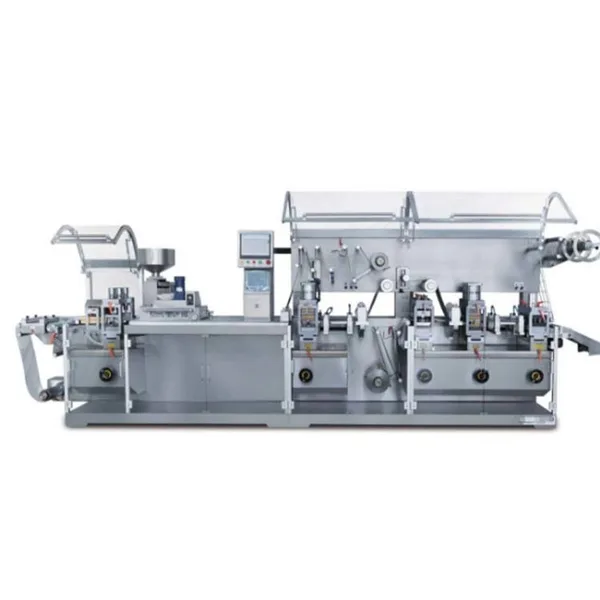

Automatic Tropical Aluminum Tablet Blister Packing Machine 140 Blisters/Min
Automatic Tropical Aluminum Tablet Blister Packing Machine 140 Blisters/Min Product Specifications Attribute Value Name Automatic Tropical Aluminum Tablet Blister Packing Machine Capacity 140 blisters/minute (standard 80×57mm, 4 blisters/circle) Capsule Number per blister Capsule: 10 pcs (#0, #1), 12pcs (#1, #2, #3) Irregular product: special design Packing material Non toxic PVC hard piece 0.15—0.5mm×270mm Adhesive PTP aluminum foil 0.02—0.035mm×270mm Tropical aluminum 0.09—0.15mm×270mm Cool form aluminum foil 0.13-0.015mm×270mm Aperture average 70—76mm Voltage 380V/50Hz 1
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-270TP-B |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C,,Cash |
| Supply Ability: | 20 Set per month |
Configuration and product details
Technical overview- Name
- Atomatic Tropical Aluminum Tablet Blister Packing Machine
- Capacity
- 140 blisters/minute（standard 80×57mm ，4 blisters/circle）
- Capsule Number per blister
- Capsule :10 pcs（#0、#1）12pcs（#1、#2、#3） Irregular product：special design
- Packing material
- Non toxic PVC hard piece 0.15—0.5mm×270mm Adhesive PTP aluminum foil 0.02—0.035mm×270mm Tropical aluminum 0.09—0.15mm×270mm Cool form aluminum foil 0.13-0.015mm×270mm Aperture average 70—76mm
- Voltage:
- 380V/50Hz 10KW
- Weight:
- 4000KG
- material
- stainless steel
- key word
- Blister Packing Machine,Blister Sealing Machine,Tablet Blister Packing Machine
| Attribute | Value |
|---|---|
| Name | Automatic Tropical Aluminum Tablet Blister Packing Machine |
| Capacity | 140 blisters/minute (standard 80×57mm, 4 blisters/circle) |
| Capsule Number per blister | Capsule: 10 pcs (#0, #1), 12pcs (#1, #2, #3) Irregular product: special design |
| Packing material |
Non toxic PVC hard piece 0.15—0.5mm×270mm Adhesive PTP aluminum foil 0.02—0.035mm×270mm Tropical aluminum 0.09—0.15mm×270mm Cool form aluminum foil 0.13-0.015mm×270mm Aperture average 70—76mm |
| Voltage | 380V/50Hz 10KW |
| Weight | 4000KG |
| Material | Stainless steel |
Based on the SED-270TP-B blister packing machine, this equipment features additional tropical aluminum forming and sealing stations. This enhancement improves sealing effectiveness while boosting moisture resistance and light protection capabilities, significantly elevating product quality. Ideal for pharmaceutical, medical, food, and nutraceutical packaging applications.
Reference specifications: 80×57, 95×65, 103×43, 120×43
- Fast mold change capability
- Lathe-style adjustment design
- Siemens brand main electrical components
- Easy-to-clean structure design
- Rear-mounted main motor and mechanical rotating mechanism
- Operating and rotating partition
- Standard servo motor traction
- PVC feeding device with active discharge motor
- Split design of front and rear machine sections
