Blister Packing Machine
SED-260H 380V/220V 50Hz 6.2kw Sus Blister Packaging Machine Pharmaceutical Industry Non Standard Products
SED-260H 380V/220V 50Hz 6.2kw Sus Blister Packaging Machine Pharmaceutical Industry Non Standard Products Product Overview of Blister Packing Machine This packaging machine was innovatively developed by our own company. It is suitable for packaging chocolates, butter, biscuits, perfume, essence, face-mask etc with AL/PL, PL/PL materials. It is equipped with a micro-computer control system and frequency converter, with characterized by higher automation and easy operation. It is popular equipment for the foodstuff and cosmetics, particularly for those who are to make
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-260H |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 Days after receiving the advance payment |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- SED-260H 380V/220V 50Hz 6.2kw Sus Blister Packaging Machine Pharmaceutical Industry Non Standard Products
- Air supply
- ≥0.3 m³/min
- Total Power
- 380V/220V 50Hz 6.2kw
- Main Motor Power (kw)
- 1.5
- Overall Dimensions(mm)
- 2900*720*1550 (L*W*H)
- Dialysis Paper(mm)
- 50-100g*250
- material
- stainless steel
- key word
- Blister Packing Machine
SED-260H 380V/220V 50Hz 6.2kw Sus Blister Packaging Machine Pharmaceutical Industry Non Standard Products
Product Overview of Blister Packing Machine
This packaging machine was innovatively developed by our own company. It is suitable for packaging chocolates, butter, biscuits, perfume, essence, face-mask etc with AL/PL, PL/PL materials.
It is equipped with a micro-computer control system and frequency converter, with characterized by higher automation and easy operation. It is popular equipment for the foodstuff and cosmetics, particularly for those who are to make their own career.
Product Parameters of Blister Packing Machine
| Cutting Frequency (Times/min) | 6-30 |
| Max. Forming Area and Depth(mm) | 240*150*26 |
| Stroke (mm) | 40-160 can be manufactured as user's requirements |
| Standard Plate(mm) | 80*57 can be manufactured as user's requirements |
| Air Pressure (Mpa) | 0.4-0.6 |
| Air supply | ≥0.3 m³/min |
| Total Power | 380V/220V 50Hz 6.2kw |
| Main Motor Power (kw) | 1.5 |
| PVC Hard Pieces(mm) | 0.15-0.5*250 |
| PTP Aluminum Foil(mm) | 0.02-0.035*250 |
| Dialysis Paper(mm) | 50-100g*250 |
| Mould Cooling | tap water or recycling water |
| Overall Dimensions(mm) | 2900*720*1550 (L*W*H) |
| Weight (kg) | 1600 |
Feature of Blister Packing Machine
1. The distance can be adjusted freely in the same flat surface for forming, heat-sealing, perforation, punching parts etc. It is suitable for various sizes of foodstuff packaging, and it has high precision and good Suitability.
2. Adjustable stroke, automatic feeding, register heating, positive pressure forming, up and down net web, cylinder heat-sealing, printing batch number with automatic perforation, mechanic dragging, easy operation, stable running.
3. It is adopted with imported gear reducer with lower noise and long life.
4. Correct location of die pressure plate, convenience of replacement.
5. Combination mechanism, convenient to assemble and disassemble, easy maintenance.
6. Equipped with temperature reserve chocolate feeder, it can ensure the chocolate charged smoothly, freely and accurately.

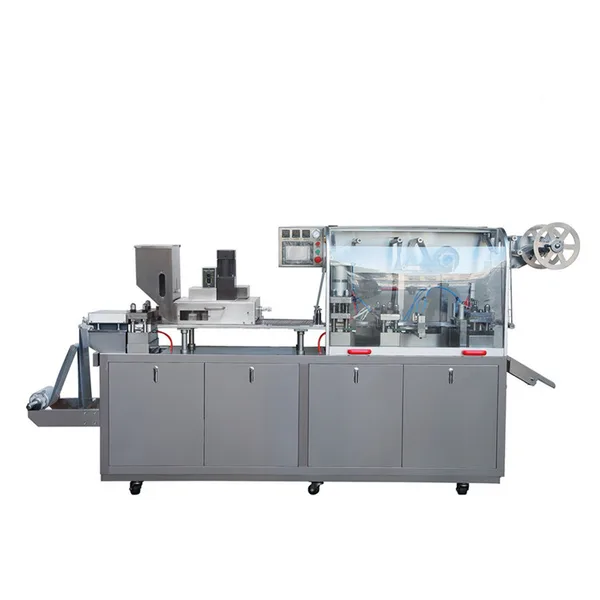

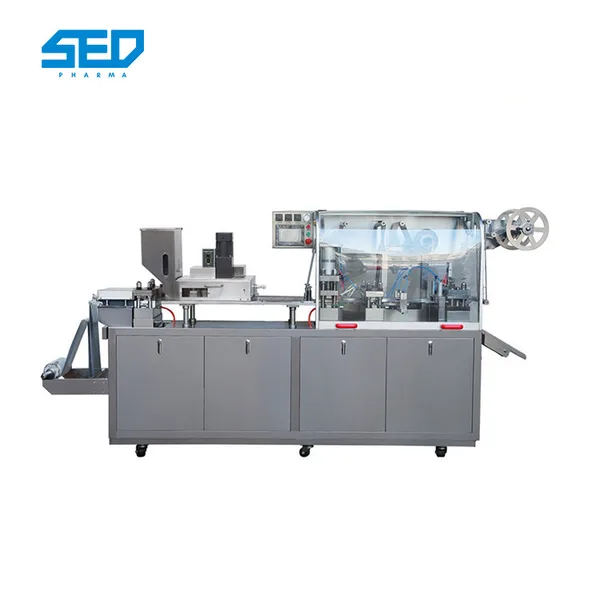

Product Show of Blister Packing Machine
Application of Blister Packing Machine
