SED-14-7000YSJT-F Intelligent Automatic Visual Inspection Machine Tablet Capsule Appearance



Product Overview of SED-14-7000YSJT-F Tablet & Capsule Appearance Inspection Machine

The SED-14-7000YSJT-F Tablet & Capsule Appearance Inspection Machine employs advanced machine vision technology to detect potential morphological defects and color variations in tablets and capsules of different sizes.



This system can automatically identify and reject damaged, stained, or potentially contaminated pharmaceutical products, thereby improving quality control efficiency, supporting compliance with pharmaceutical quality standards, and reducing reliance on manual inspection.



Product Parameters of SED-14-7000YSJT-F Tablet & Capsule Appearance Inspection Machine

Model	SED-14-7000YSJT-F
Applicable	Suitable for tablets and capsules of different colors and specifications
Detection Speed	7,000 PCS/MIn
Inspection Item	Defect Pills: Less than 80% of the good product area, with a defect of no less than 15%
	Surface Stain Pills: not less than 10% surface stains (depending on the specific situation)
	Mixed Medicine/Color Mixing drugs of the same specification but different colors, with a color difference exceeding 20% of the standard color
	Testing Specifications Suitable for tablets and capsules
	Morphological Change Defect or deformation of drug particles
Rejection System	Whole grain exclusion or reserved exclusion signal
Power Supply	AC 220 V ; 50/60 Hz
Power	≤2 KW



Feature of SED-14-7000YSJT-F Tablet & Capsule Appearance Inspection Machine

1. Defect Detection: Automatically identifies and rejects pills with significant integrity loss, typically when the effective area falls below about 80% of the standard (defects ≥15%).
2. Surface Contamination: High-sensitivity detection helps identify surface stains that may cover around 10% or more of the pill area.
3. Anti-Mixing Technology: Designed to help detect foreign particles or mixed medicines of similar size but different colors, particularly when the color difference exceeds approximately 20%.
4. Morphological Analysis: Helps identify potential deformations, chipping, or shape irregularities in tablets as well as hard and soft capsules.

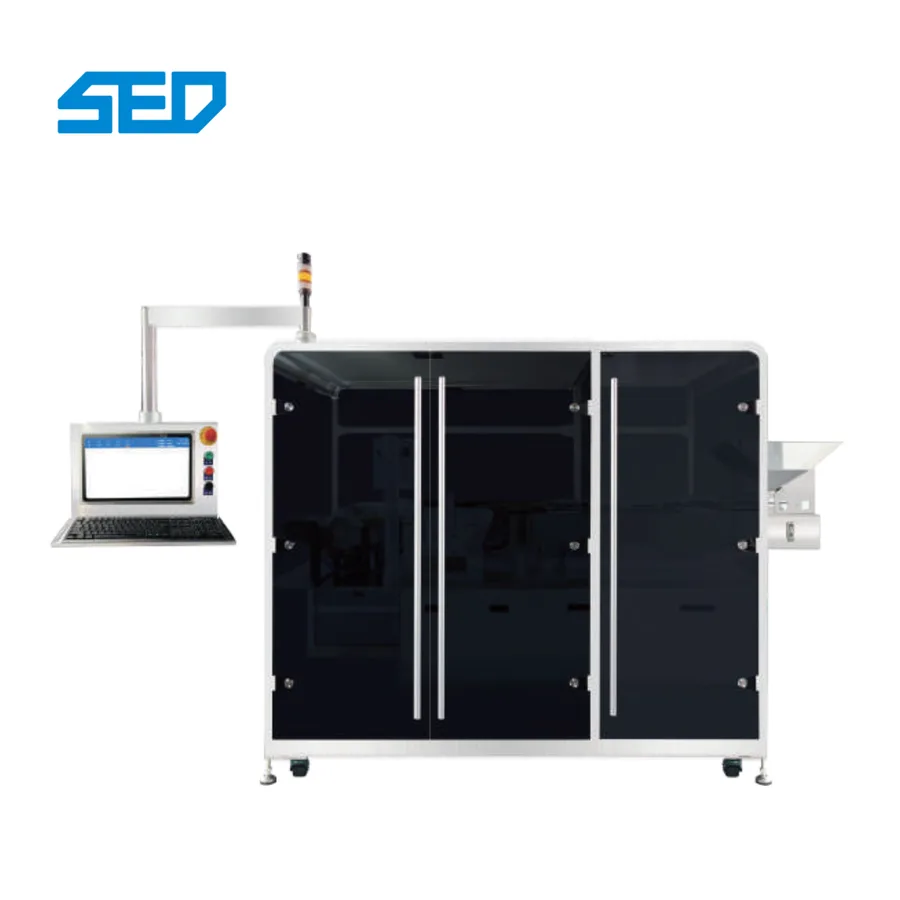

Show of SED-14-7000YSJT-F Tablet & Capsule Appearance Inspection Machine
