Softgel Encapsulation Machine
Pharmaceutical Softgel Encapsulation Machine with Variable Roller Die Speed Φ150 × 300 mm Roller Die Size and 0-2 ml Single Piston Filling Volume
Pharmaceutical Softgel Encapsulation Machine Gelatin Capsule Manufacturing Description of Softgel Encapsulation Machine The SED-300RJ-I is a complete softgel production line integrating encapsulation, gelatin melting, material preparation, drying, gelatin recycling, and inspection processes. The main machine features Φ150×300mm roller dies with variable speed (0-5 r/min) and single piston filling volume of 0-2 ml. It supports a wide range of softgel shapes (round, oval, oblong, tube) and is ideal for large-scale production in pharmaceutical, nutraceutical, and functional fo
Product Details:
Payment & Shipping Terms:
Request configuration
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-300RJ-I |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C,,Cash |
| Supply Ability: | 20 Set per month |
Configuration and product details
Technical overview- Name
- Pharmaceutical Softgel Encapsulation Machine Gelatin Capsule Manufacturing
- Roller Die Speed
- 0 – 5 r/min (variable)
- Roller Die Size
- Φ150 × 300 mm
- Single Piston Filling Volume
- 0 – 2 ml
- Power Supply
- 380V, 50Hz
- Total Power
- 17.6 kW
- Noise Level
- < 75 dBA
- Machine Dimensions (L×W×H)
- 2420 × 1180 × 2210 mm
- Net Weight
- 1900 kg
- key word
- Softgel Encapsulation Machine
Pharmaceutical Softgel Encapsulation Machine Gelatin Capsule Manufacturing
Description of Softgel Encapsulation Machine

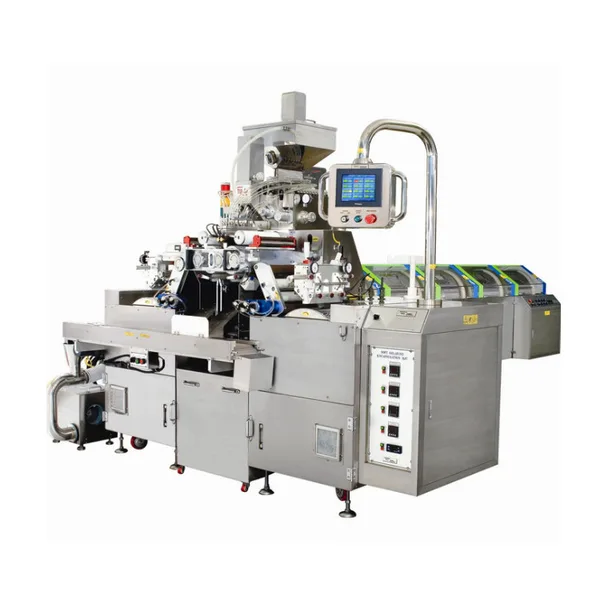

The SED-300RJ-I is a complete softgel production line integrating encapsulation, gelatin melting, material preparation, drying, gelatin recycling, and inspection processes. The main machine features Φ150×300mm roller dies with variable speed (0-5 r/min) and single piston filling volume of 0-2 ml. It supports a wide range of softgel shapes (round, oval, oblong, tube) and is ideal for large-scale production in pharmaceutical, nutraceutical, and functional food industries.
Product Parameters of Softgel Encapsulation Machine
| Model | SED-300RJ-I |
|---|---|
| Roller Die Speed | 0 - 5 r/min (variable) |
| Roller Die Size | Φ150 × 300 mm |
| Single Piston Filling Volume | 0 - 2 ml |
| Power Supply | 380V, 50Hz |
| Total Power | 17.6 kW |
| Noise Level | < 75 dBA |
| Machine Dimensions (L×W×H) | 2420 × 1180 × 2210 mm |
| Net Weight | 1900 kg |
Features of Softgel Encapsulation Machine
- Turnkey solution covering the entire softgel manufacturing process
- Stable roller die operation with flat gelatin ribbon, saving material and oil
- Flexible output for various softgel shapes and sizes
- GMP-compliant, full stainless steel construction in key units
- Premium electrical components: Siemens, Delta, Eaton, etc.
- Suitable for 24/7 continuous production
