Softgel Encapsulation Machine
Automatic Encapsulation Machine Stable Paint Ball Making Machine
Automatic Encapsulation Machine Stable Paint Ball Making Machine Description of Encapsulation Machine: The encapsulation machine is the main device, together with the corresponding auxiliary equipment, component production line.Specific product to prevail in kind, the manufacturers reserve the right to upgrade product design. Main Technical Data of Encapsulation Machine: roll mode speed: 0-5rmp roll mode size: ∮150×250mm capsule production: 100000/h,8#olive,500mg/pill material feeding quanitity: 0-2(ml) load difference: less than ±2% load precision: <=±1% power supply
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-250RJ |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 20 Set per month |
Configuration and product details
Technical overview- Name
- Automatic Encapsulation Machine Stable Paint Ball Making Machine
- Capacity
- 10000-20000 pcs per hour
- Suitable Temperature
- 20-26℃
- Suitable Humidity
- RH50-70%
- Mixing Tank Volume
- 60L
- Colloid mill volume
- 40L
- Noise
- ＜75dBA
- Tumble Dryer Area Needed
- ＞30㎡
- material
- stainless steel
- key word
- Automatic Encapsulation Machine
Automatic Encapsulation Machine Stable Paint Ball Making Machine
Description of Encapsulation Machine:
The encapsulation machine is the main device, together with the corresponding auxiliary equipment, component production line.Specific product to prevail in kind, the manufacturers reserve the right to upgrade product design.
Main Technical Data of Encapsulation Machine:
| roll mode speed: | 0-5rmp |
| roll mode size: | ∮150×250mm |
| capsule production: | 100000/h,8#olive,500mg/pill |
| material feeding quanitity: | 0-2(ml) |
| load difference: | less than ±2% |
| load precision: | <=±1% |
| power supply: | 380V 50HZ |
| motor power: | 1.1Kw |
| total power: | 17Kw |
| dimentions: | 2110X1000X2000mm |
| weight: | 1800KG |
Feature of Encapsulation Machine:
1. Capsule package rate is up to 98%.
2. The gelatin ribbon is lubricated by fine oil supply technology in order to lower the consumption of lubrication oil. The ribbon is lubricated by vegetable oil, so the capsules produced is free of wash.
3. High quality capsule deferent equipment adopts food conveyer belt authorized by American FDA, without poison and adhibition and easy to clean.
4. Optimized designed mould is made of high quality aviation alloy material by high precision numerical control process to insure the mould's service life.
5. Advanced process and assembly technics make the complete appliance quality stabilization , high working rate, and good shape pill.

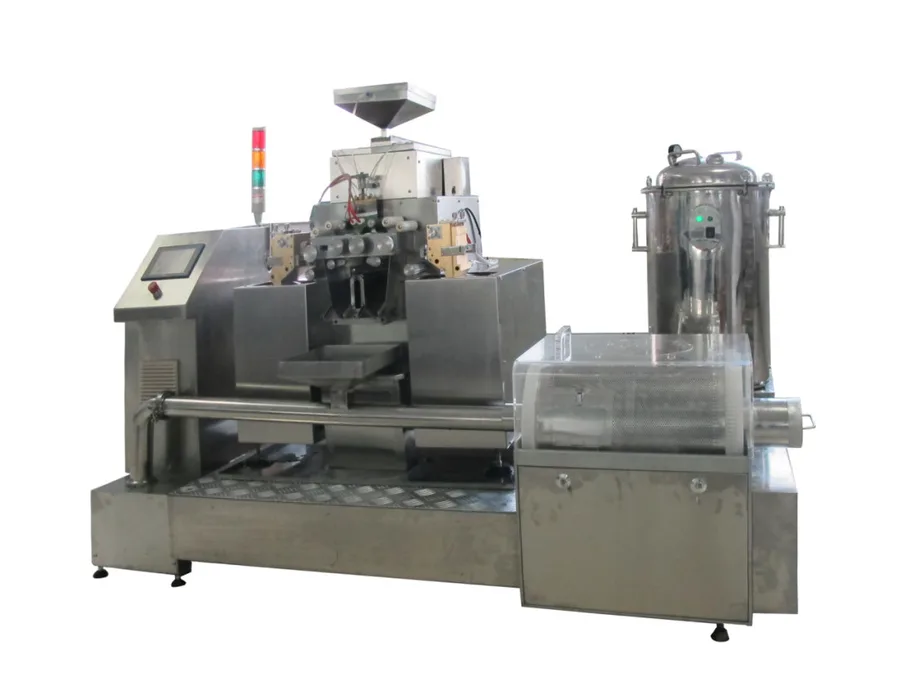

Product Show of Encapsulation Machine
Application and Usage of Encapsulation Machine

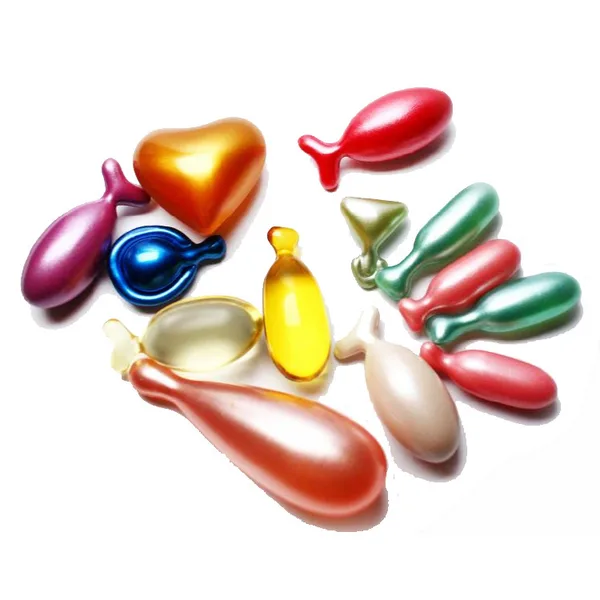

Softgel encapsulation machine can quantificationally inject the oil, mixing suspension and pasty mass into the capsule to form all kinds of softgel encapsulation with different size, shape and color.
Because of the merits of high speed disintegration, easy to oral, hard to oxygenation, easy to store and take, the softgel encapsulation is welcomed by more and more customers.
Owing to the high productivity, charging exactly, quality stabilization, high finished product rate, it is favoured by more and more manufacturers and used in the fields of medicine, health products, cosmetic and game-color ball and so on.
Application of Encapsulation Machine
