Softgel Encapsulation Machine
Pharma Grade Softgel Encapsulation Machine For Vitamin E Capsule Making
Pharma Grade Softgel Encapsulation Machine For Vitamin E Capsule Making Description of Softgel Encapsulation Machine : Softgel encapsulation machine can quantificationally inject the oil, mixing suspension and pasty mass into the capsule to form all kinds of softgel encapsulation with different size, shape and color. Because of the merits of high speed disintegration, easy to oral, hard to oxygenation, easy to store and take, the softgel encapsulation is welcomed by more and more customers. Owing to the high productivity, charging exactly, quality stabilization, hig
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-250RJ |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 20 Set per month |
Configuration and product details
Technical overview- Name
- Pharma Grade Softgel Encapsulation Machine For Vitamin E Capsule Making
- Control Mode
- PLC Control
- Material
- Stainless Steel 304
- Rotary speed of die roll
- 0-5rpm
- Dimension
- 2420×1180×2210mm
- Power Supply
- 380V 50HZ Three Phase
- Noise
- ＜75dBA
- Weight
- 1800kgs
- key word
- Softgel Encapsulation Machine
- total power:
- 17Kw
Pharma Grade Softgel Encapsulation Machine For Vitamin E Capsule Making
Description of Softgel Encapsulation Machine :
Softgel encapsulation machine can quantificationally inject the oil, mixing suspension and pasty mass into the capsule to form all kinds of softgel encapsulation with different size, shape and color.
Because of the merits of high speed disintegration, easy to oral, hard to oxygenation, easy to store and take, the softgel encapsulation is welcomed by more and more customers.
Owing to the high productivity, charging exactly, quality stabilization, high finished product rate, it is favoured by more and more manufacturers and used in the fields of medicine, health products, cosmetic and game-color ball and so on.
This product has passed provincial-level appraisal of new product and the certification of EU adopted two items of patent technology in manufacturing with exquisite workmanship.
Main Technical Data of Softgel Encapsulation Machine :
| roll mode speed: | 0-5rmp |
| roll mode size: | ∮150×250mm |
| capsule production: | 100000/h,8#olive,500mg/pill |
| material feeding quanitity: | 0-2(ml) |
| load difference: | less than ±2% |
| load precision: | <=±1% |
| power supply: | 380V 50HZ |
| motor power: | 1.1Kw |
| total power: | 17Kw |
| dimentions: | 2110X1000X2000mm |
| weight: | 1800KG |
Feature of Softgel Encapsulation Machine:
1. Capsule package rate is up to 98%.
2. The gelatin ribbon is lubricated by fine oil supply technology in order to lower the consumption of lubrication oil. The ribbon is lubricated by vegetable oil, so the capsules produced is free of wash.
3. High quality capsule deferent equipment adopts food conveyer belt authorized by American FDA, without poison and adhibition and easy to clean.
4. Optimized designed mould is made of high quality aviation alloy material by high precision numerical control process to insure the mould's service life.
5. Advanced process and assembly technics make the complete appliance quality stabilization , high working rate, and good shape pill.

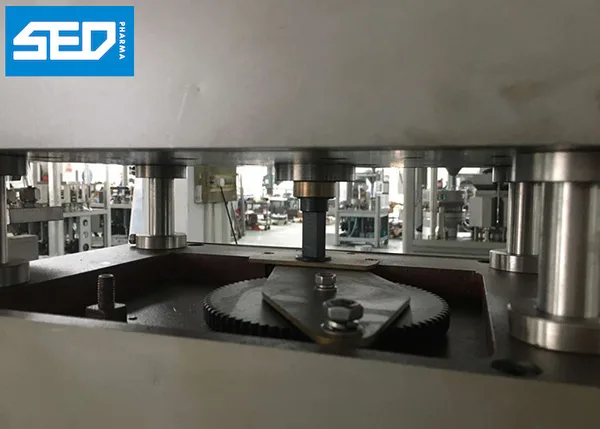

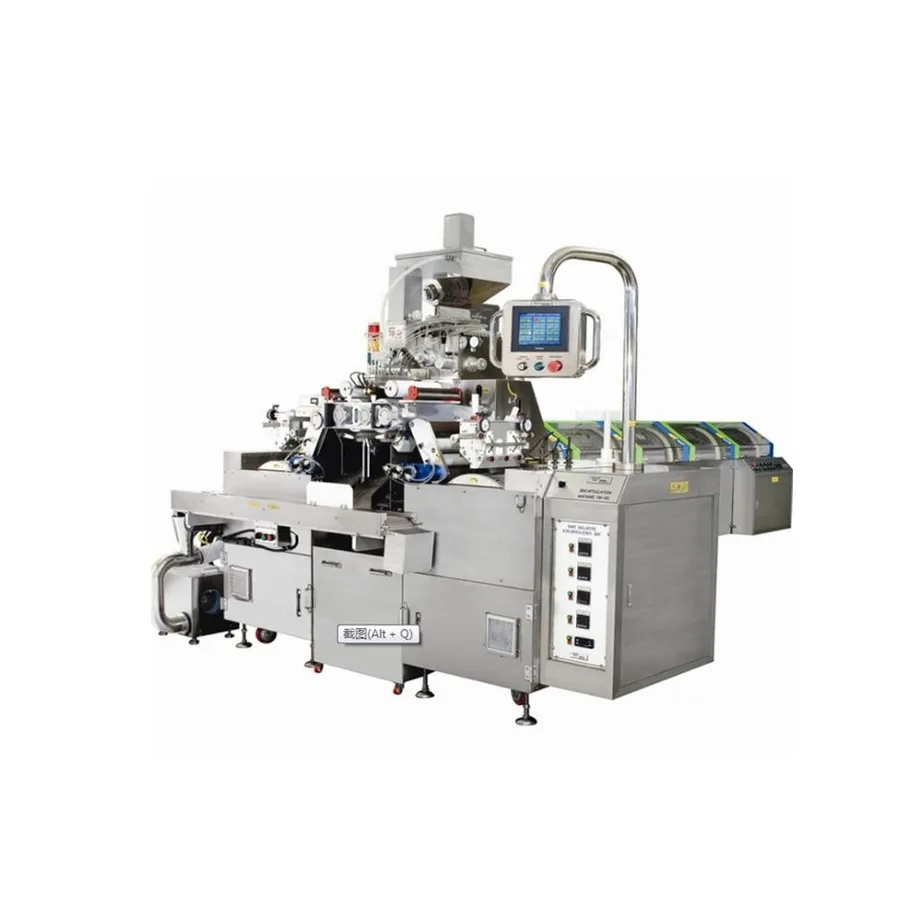

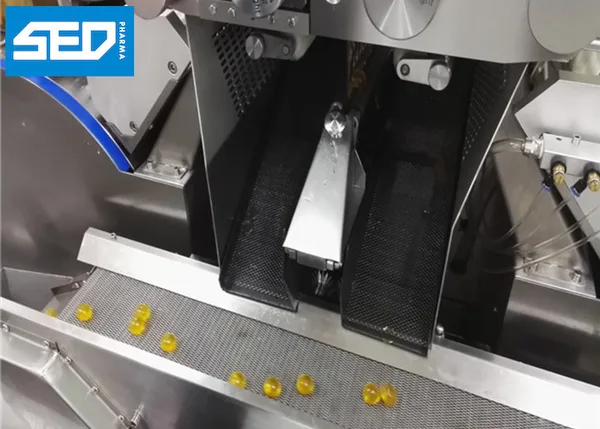

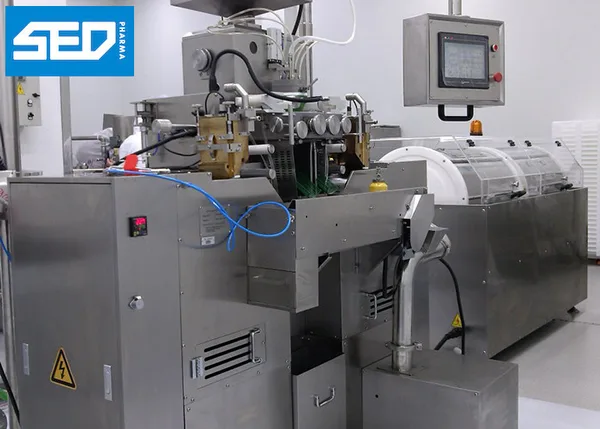

Product Show of Softgel Encapsulation Machine
Application of Softgel Encapsulation Machine
