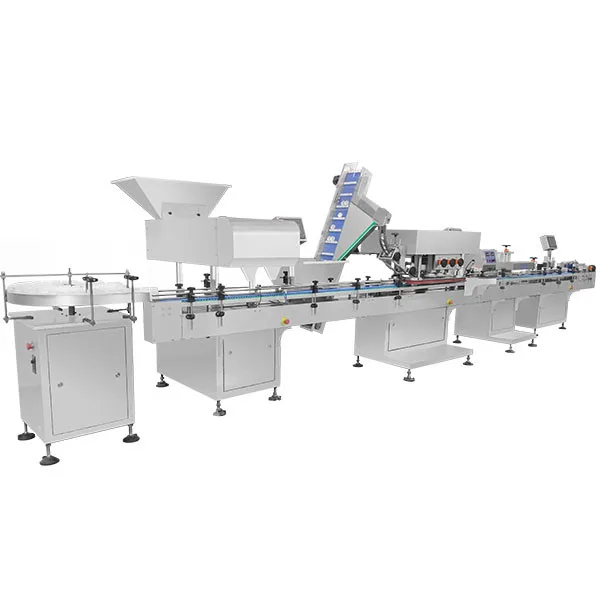

Multi Functional Capsule Counting Machine Electronic Capsule Bottle Counting Line

Multi Functional Capsule Counting Machine Electronic Capsule Bottle Counting Line



Technical Data:



Model name	SED-16S
Product name	Automatic counting machine
Hopper Volume	60L
Capacity	10-80bottles/min
Filling Quantity	1-9999pcs/bottle (adjustable)
Bottle Size	Diameter: 30-100mm Height:40-180mm
Counting Size	Pills with diameter of 22mm or less are compatible with 000-5# capsules soft capsules with diameters of 3.5mm-22mm plain tablets special-shaped tablets sugar-coated tablets
Compressed air	0.6Mpa
Power	220V/50HZ 0.9KW
Machine Weight	480kg
Machine Size L × W × H (mm)	1560 × 1530 × 1700



Main Features:



1.Compatibility, high accuracy, wide application and use of the Company's original anti-dust photoelectric detection of high technology, can count Tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pill count to bottling;


2.Vibration blanking: 16-channel vibration uniform blanking, unique turning plate sub-assembly mechanism blanking and discharging uniformly and smoothly, without damaging tablets;

3.Dust resistance system: Adopting our company's high dust resistance photoelectric sensor technology, it can work stably even under high dust conditions;

4.Accurate counting: the photoelectric sensor automatically counts, and the counting error is less than the national standard;

5.High degree of intelligence, with multiple detection alarm control functions such as no bottles no counting, self-checking, etc.;



Working Principle :

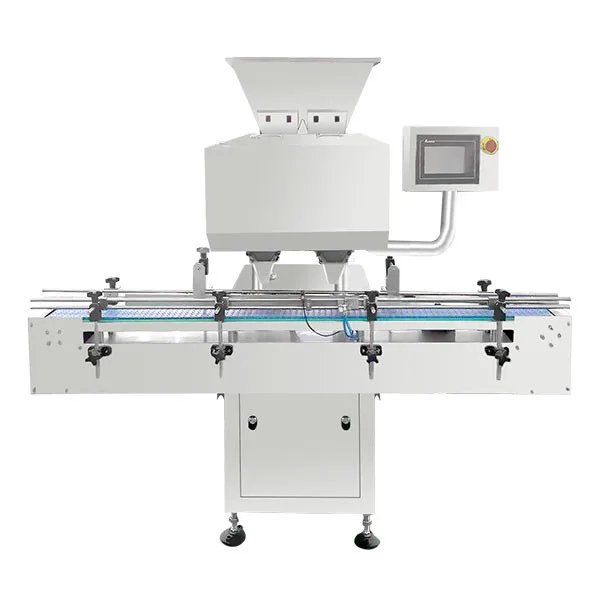

SED-16S Automatic Electronic counting machine is special for counting tablets, soft gelatin, hard capsule and chewing gums, etc. This machine adopts 16 sets imported counting sensor for counting with 16 guiding way and two heads. The advantage of the machine is no need change mould when you change the counting object, only adjusting the counting table height by Easy Adjust wheel. The machine comes with Touch screen for easy operation.
