Powder Mixer Machine

Multi Directional Mini Food Powder Mixer Machine With Automatic

Name: Multi Directional Mini Food Powder Mixer Machine With Automatic
Brand: SED Pharma

Multi Directional Mini Food Powder Mixer Machine With Automatic Product Description of Powder Mixer Machine The machine is widely used in the mixing of dry powder in the pharmaceutical, chemical, food and other industries. It can also mix several materials which are with different specific gravity and different particle sizes quickly and evenly. The machine uses the unique triangular swing and translational rotation principle to produce a strong alternating pulse motion, which continuously pushes the mixture material. The vortex generated by it has a varying energy

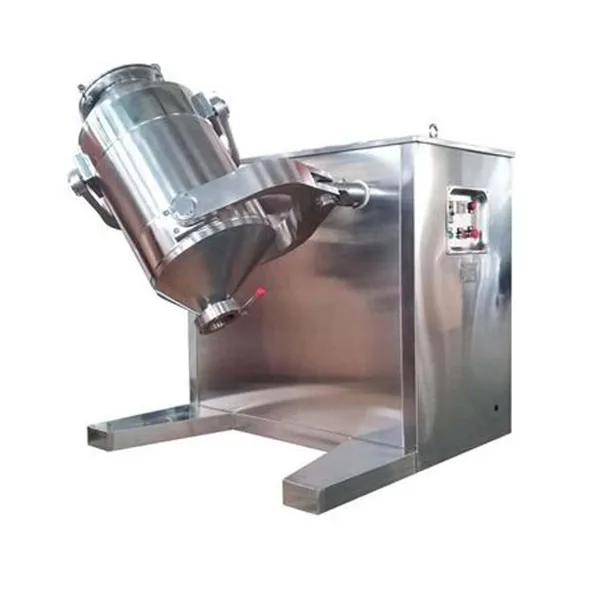

Multi Directional Mini Food Powder Mixer Machine With Automatic, view 1

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-100SH-E

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	35 Days after receiving the advanced payment
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per Month

Request configuration

Configuration and product details

Technical overview

Name: Multi Directional Mini Food Powder Mixer Machine With Automatic
Model: SED-100SH-E
Item Name: Powder Mixing Machine
Barrel Volume: 100L
Max loading weight: 70KGS
Speed of Driving Shaft: 0-10rpm
Motor power: 1.5KW
Dimension: 1650*1400*1700mm
material: stainless steel
key word: Powder Mixer Machine

Multi Directional Mini Food Powder Mixer Machine With Automatic

Product Description of Powder Mixer Machine

The machine is widely used in the mixing of dry powder in the pharmaceutical, chemical, food and other industries. It can also mix several materials which are with different specific gravity and different particle sizes quickly and evenly.

The machine uses the unique triangular swing and translational rotation principle to produce a strong alternating pulse motion, which continuously pushes the mixture material. The vortex generated by it has a varying energy

gradient, which can produce an excellent mixing effect. The machine has the advantages of stable operation, low noise, high loading coefficient, short mixing time, etc.

The machine is composed of a base, a frequency conversion brake motor main shaft, a rotary connecting rod and a cylinder. The loaded cylinder is driven by the driving shaft to move, which promotes the three-way compound

movement of the material along the cylinder in the circumferential, radial and axial directions, so as to realize the mutual flow and diffusion of multiple materials, to achieve the purpose of high uniform mixing.

Parameter of Powder Mixer Machine

Model	SED-100SH-E
Barrel capacity(L)	100
Max loading weight	70KGS
Max loading volume	80L
Speed of driving shaft(r/min)	0-10rpm
Motor power(kw)	1.5KW
overall dimensions(mm)	165014001700mm
Total weight(kg)	526kg

Working Principle of Powder Mixer Machine

With the driving of main shaft, the loading body will parallel move, rotate and roll again and again to make the materials to do the three-direction combined motion (circle, radial and axial direction) along the wall.

So that to realize the mutual flow, diffusion, accumulation and adulteration of many kinds of materials. Finally achieve the purpose of uniform mixing.

Usage and Feature:

It is used for the high uniformity mixing of powder, granular materials in the industries such as pharmacy, chemical, food, light industry, electron, machine, mining and metallurgy, national defense and research units.
The mixing tube is moved with multi-direction. Materials are out of centrifugal force and no gravity segregation and accumulation. Each component can be of intervallic weight ratio and the mixing ratio could be above 99.9%. So it will be the more ideal mixer.
The loading capacity of tube is large which could be largest 80% (ordinary mixer only be 40%). It features high efficiency, short mixing time.
All parts in the tube is circular arc with precision polishing.

Product Show of Powder Mixer Machine

Multi Directional Mini Food Powder Mixer Machine With Automatic product detail
