Capsule Counting Machine

Low Noise Automatic Tablet Capsule Counting Machine

Name: Low Noise Automatic Tablet Capsule Counting Machine
Brand: SED Pharma

Low Noise Automatic Tablet Capsule Counting Machine Product Description of Capsule Counting Machine This Counting Machine can be applied for counting capsules, soft gels, tablets, chewing gum, round pills, and other solid materials without the need for tooling when changing objects. Its part in contact with material is made of superior 304 stainless steel, which totally meets the GMP requirement. The bottle blocking device on the conveyor belt blocks the transferred bottle at the bottling position, waiting for filling. The material falls into the counting device in

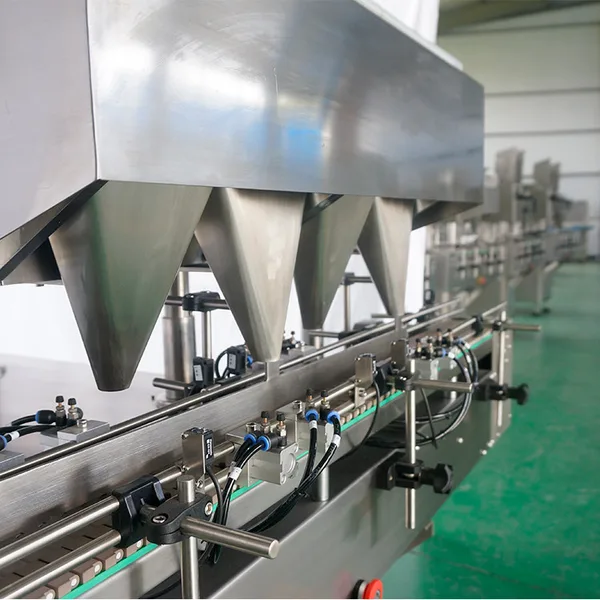

Low Noise Automatic Tablet Capsule Counting Machine, view 1

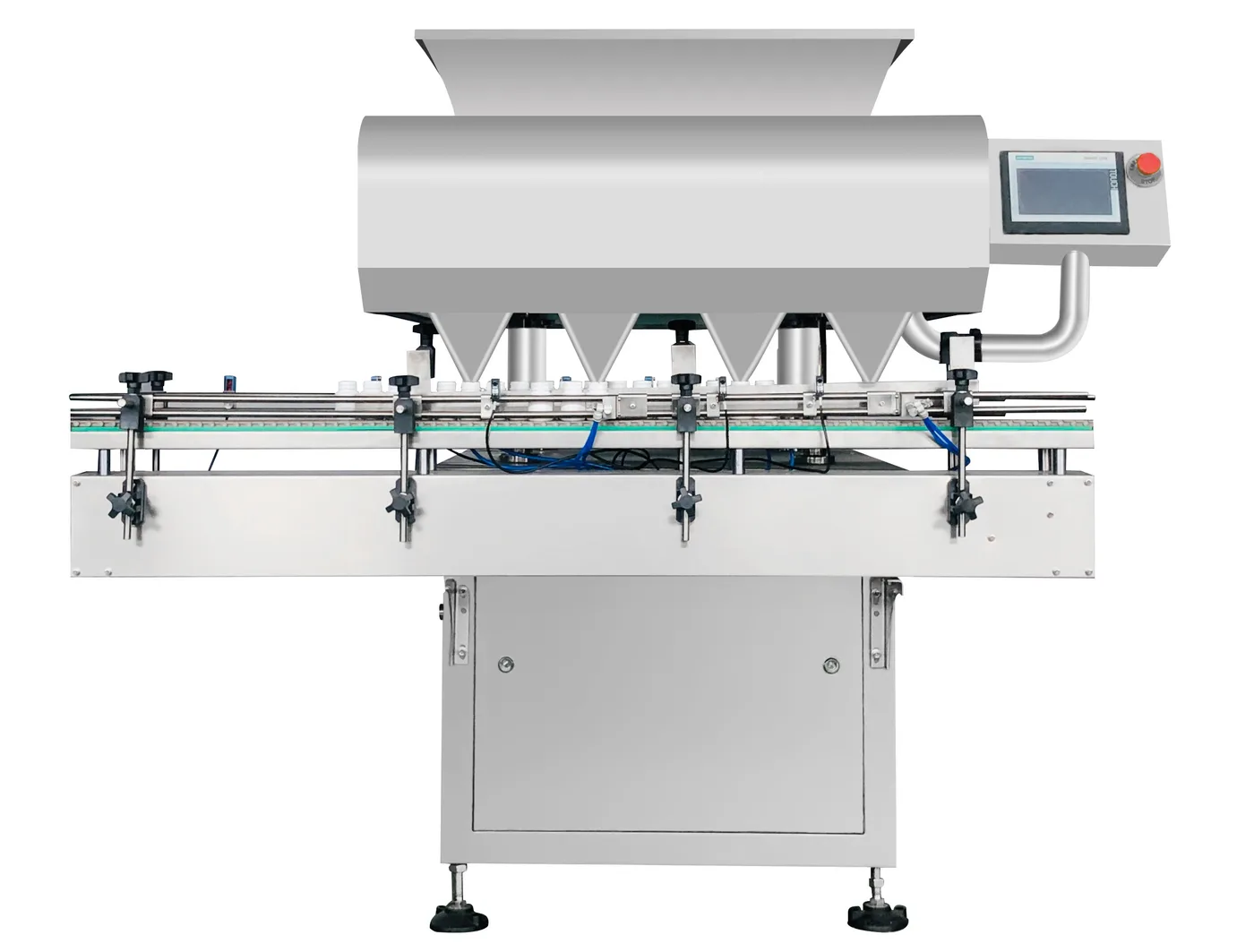

Low Noise Automatic Tablet Capsule Counting Machine, view 2

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-32S

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	35 days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets Per Month

Request configuration

Configuration and product details

Technical overview

Name: Low Noise Automatic Tablet Capsule Counting Machine
Power supply and consumption: 220V/50HZ 2.5kw
Compressed air: 0.6Mpa
Machine Weight: 710KG
Machine Size L × W × H (mm): 2160*1530*1700mm
Work Range: Adjustable from 2-9999 per bottle
material: stainless steel
key word: Capsule Counting Machine Tablet bottling machine

Low Noise Automatic Tablet Capsule Counting Machine

Product Description of Capsule Counting Machine

This Counting Machine can be applied for counting capsules, soft gels, tablets, chewing gum, round pills, and other solid materials without the need for tooling when changing objects. Its part in contact with material is made of superior 304 stainless steel, which totally meets the GMP requirement.

The bottle blocking device on the conveyor belt blocks the transferred bottle at the bottling position, waiting for filling. The material falls into the counting device in an orderly manner through the vibration of the feeding corrugated plate, and is counted by the photoelectric counting sensor and then loaded into the bottle at the bottling position.

Detailed Parameters of Capsule Counting Machine

Model Name	SED-32S
Application	Hard capsule(000-5#) Soft Gelatin capsule Pills, tablets Chewing gum, other solid object (Diameter: 5.5-22mm)
Hopper Volume	82L
Capacity	10-100 bottles/min
Filling Quantity	2-9999pcs/bottle (adjustable)
Bottle Size	Diameter ≤50mm Height ≤180mm
Conveyor Belt Width	114mm
Compressed Air	0.6Mpa 5L/min
Voltage	220V 50HZ Single Phase
Power	1.3KW
Weight	710kg
*Overall Dimension (LWH)*	216015301700mm

Characteristic of Capsule Counting Machine

Compatibility, high accuracy, wide application and use of the Company's original anti-dust photoelectric detection of high technology, can count Tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pill count to bottling;

Vibratory cutting drugs do not damage;

A high degree of intelligence, with no bottle is not the number of self-fault detection alarm and many other control functions;

Compact structure, stability and durability, and no regular replacement parts, small footprint, the use of low-cost;

To facilitate the replacement of species, can automatically take-off and landing, demolition cleared without any tools, convenient and quick;

Chinese dialogue control panel, can store 10 ~ 20 group of species parameters, adjusted to facilitate the use of special;

Fully automatic operation, with the Upper and Lower Union Road, intelligent control of processes, coordination, and no special operation, labor-saving devices.

Low prices, especially for small-volume, variety and more manufacturers use.

Control chip imported to the United States, photoelectric sensors for Taiwan's imports.
