Low Noise Automatic Cartoning Machine For Tissue

Product Description of Cartoning Machine​



The high speed automatic packing machine is an integrated high-tech product of light, electricity, gas and machinery.



This product is suitable for aluminum plate, medicine bottle, cosmetics, electronic cards, and other daily necessities and similar goods packing, with automatic medicine board or transfer goods (a plate plate accounted for more adjustable), and manual transmission and folding (automatic folding 1-4 can be folded). And open the carton, goods box, printing, box sealing etc..



The machine can be used alone or in conjunction with other equipment to form a packaging flow line.



Feature of Cartoning Machine​

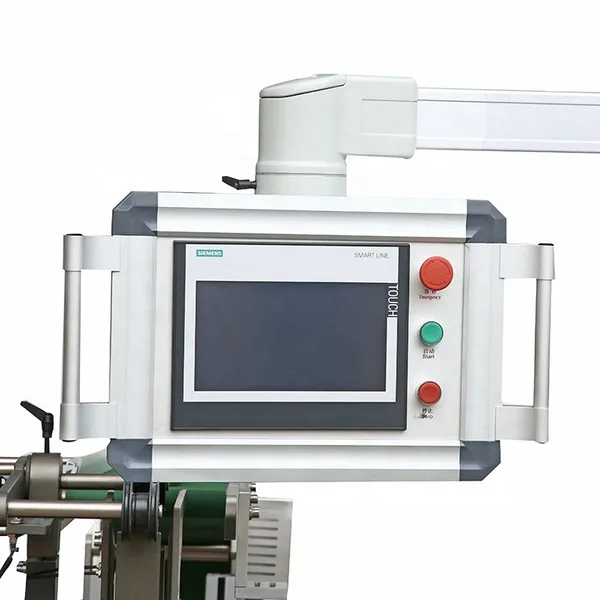

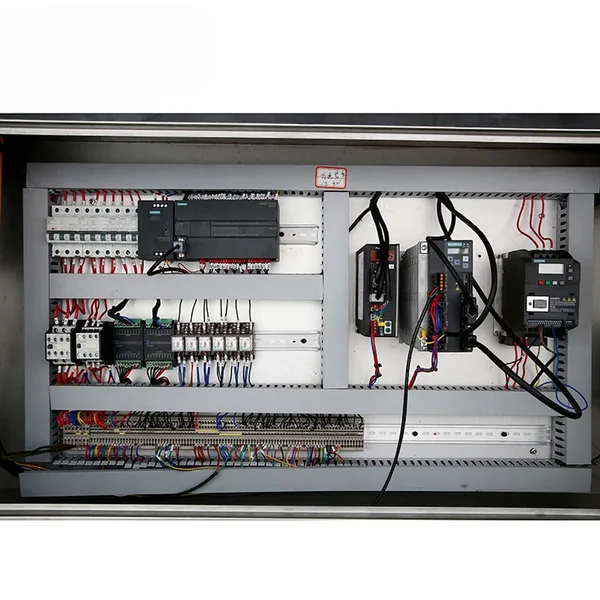

1.The host adopts PLC automatic control system, stepless variable frequency speed regulation. Wide range of adjustment, electrical components are internationally renowned brands, to ensure the reliability of operation.



2.Photoelectric monitoring of each part of the action, abnormal operation, can display a part, and can automatically stop, so as to exclude.



3.Can automatically remove the lack of packaging or lack of instructions of the packaging.



4.If the missing object version, manual, carton will not automatically cut.



5.The performance is stable and the operation is simple and convenient.



Product Parameters of Cartoning Machine​

Model		SED-260
Production capacity		50-260box/min
Plate Min size		50*30*10mm
Bottle Min size		Φ25*60
Unfold leaflet size		(90-250)mm*(80-190)mm
Folded leaflet size		(80-190)mm*(20-40)mm
Main motor power		2.2Kw
Total power		5Kw
Power supply		380V 50Hz
Air pressure	Pressure	0.5-0.7Mpa
	Consumption	40NL/min
Air Consumption		≥0.9m³/h
Outline demesion		3990mm×1645mm×1335mm
Weight		3000Kg
Working noise		<75dB

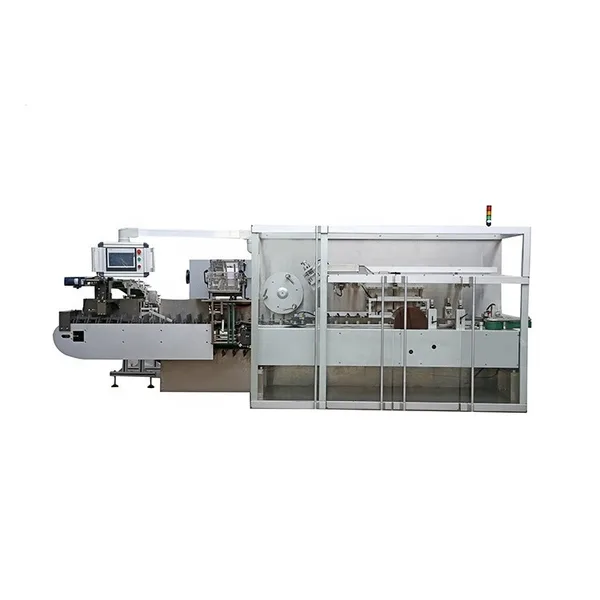

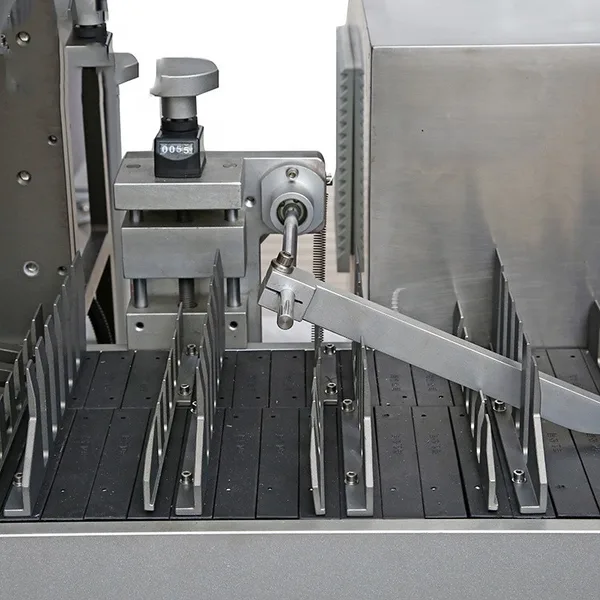

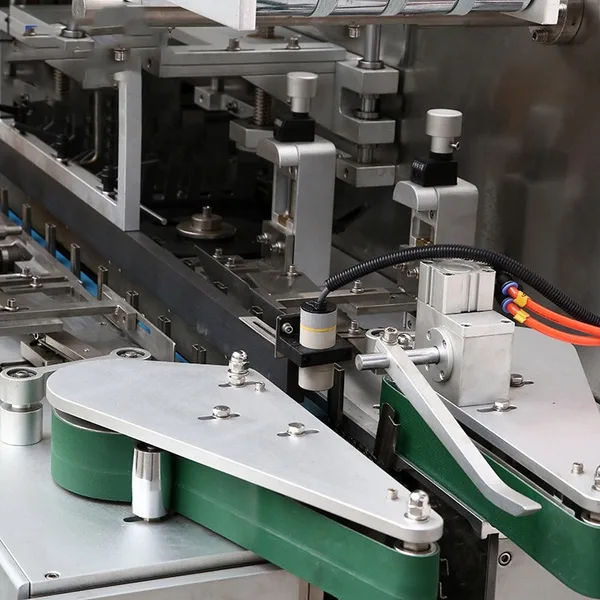

Show of Cartoning Machine

.



Application of Cartoning Machine
