Horizontal Ribbon Cosmetic Dry Powder Mixer Machine With Automatic

Horizontal Ribbon Cosmetic Dry Powder Mixer Machine With Automatic



Simple Instruction of Powder Mixer Machine



The machine is full stainless steel mixer, horizontal ribbon mixer shaft is arranged on the transmission screw blade, the internal spiral material from the discharge port conveying direction, the external spiral material to the discharge



port conveying direction. Under the convective motion of the double helix belt, a low power and high efficiency mixing environment is formed.



Installed on the stirring shaft of the spiral drive inside and outside diameter of the material in the cylinder, the stirrer in the cylinder maximum range of turning materials. When the stirring device works, the inner screw drives the



material which is close to the center of the shaft to be rotated in an axial direction, the axial direction is pushed away from the discharge port, and the outer screw drives the material close to the wall of the cylinder to rotate in an axial



direction, and is pushed forward to the discharge port. The mixed material can be mixed in a short time.



Main Technical Data of Powder Mixer Machine

Product name	SED-300LD-H
Overall Size	2030*630*980mm
Motor Power(kw)	4
All Volume	300L
Load efficienc	0.4-0.8
Weight (kg)	720



Working Principle of Powder Mixer Machine



The working principle of the horizontal mixer is that under the movement of the spiral belt of the stirring shaft, the inner and outer spiral belts turn the material in a large range, the inner spiral belt moves the material to both sides, and the outer spiral



belt moves the material from both sides to the inside. , so that the material is mixed back and forth, and the other part of the material is pushed by the spiral belt and moves along the axial and radial directions, thereby forming a convection cycle. Due to



the agitation of the above-mentioned movements, the materials are quickly and uniformly mixed in a relatively short period of time.



Features of Powder Mixer Machine



1. Wide range of application. Horizontal mixers are widely used today and are used in all walks of life. Mixers are mainly used to mix different materials, such as cement, yellow sand, gravel, etc.;


2. Strong practicability. The horizontal mixer accelerates the surface contact between two or more objects when mixing materials, which can promote chemical reactions between the two materials, and there are also physical changes;


3. Superiority. The horizontal mixer can mix and mix two different materials, and can fuse two completely different materials, so that the two materials can depend on each other and increase the availability of the materials.

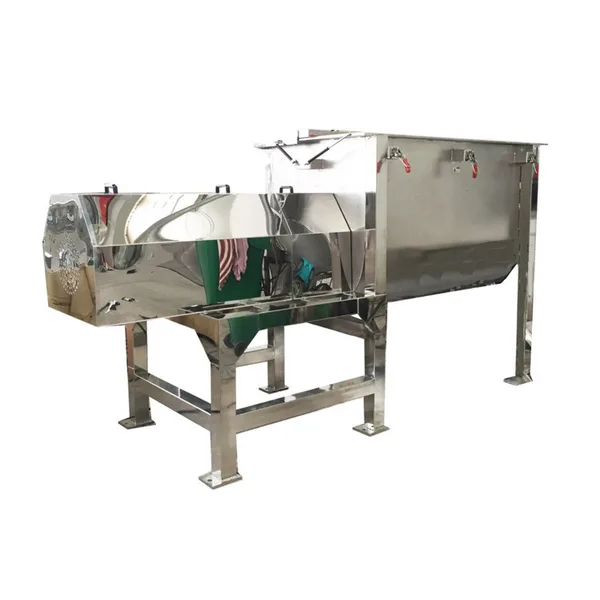

Product Show of Powder Mixer Machine

Application of Powder Mixer Machine
