High Speed Fully Automatic Electronic Tablet Capsule Counting Machine With 32 Passageway



Product Description of Counting Machine



The machine delivers medicine smoothly and evenly in three classes of bibration. It adopts the most advanced international CCD sensitive technology, which has high resolution to make up for the disadvantages of common photoelectricity many domestic manufactureres use.



CCD can counteract dust accumulated on the fluorescent screen and adjust work state automatically to ensure accuracy of counting. Its air-storing and pressure regulator unit ensures reliability and stablility of pneumatic components. The machine also has self-diagnosis system which can monitor the whole running process to ensure correctness of counting.



The device runs reliably. It is easy to change the specification of medicine. All kinds of medicl parameters can be stored in the control system of the machine. Its compatible and humanized interface is beneficial to be operators’ perfectly grasping. The machine conforms to requirements of GMP



Detailed Parameters of Counting Machine

Suitable bottles	Round square
Product	0 capsule
Suitable bottles	Round square
Product	0 capsule
Quantity	2-9999capsule/bottle
Capacity	70-90b/min
Power and voltage	AC220V 50Hz 0.8kw
Accuracy	>99.5%
Dimension	2160*1530*1700mm
Weight	710kg



Trait of Counting Machine



1. It has strong compatibility and can count and bottle solid preparations or solid particles such as tablets (including shaped tablets), capsules, soft capsules (transparent, opaque), pills



2. vibration feeding capsules: The 12-tunnel vibration is evenly cut, and the special patented flap-packing mechanism is unloaded and evenly discharged without damaging the medicine;



3. Dust-proof: adopts high dust-proof photoelectric sensor technology, which can work stably under the condition of high dust;



4. Accurate counting: photoelectric sensor automatically counts, bottling error is less than national standards;



5. The special structure of the filling nozzle can prevent the drug from being blocked, and the small bottle with the bottle mouth can also be quickly bottled (optional);



6. High intelligence, with no bottle no counting, detection alarm control functions;



7. Function matching: automatic detection of lack of bottle photoelectric sensor, automatic shutdown;



8. Simple operation: intelligent design, various operating parameters are set as needed, and 10 sets of setting parameters can be stored;



9. Easy maintenance: the operator can operate with simple training, and it is simple and convenient to disassemble, clean and replace parts without tools;



10. Sealed and dust-proof: Configure the dust box to reduce dust pollution (optional).

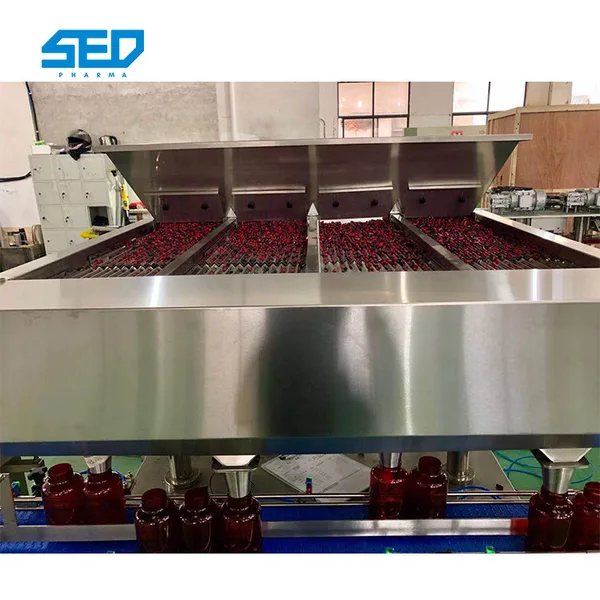

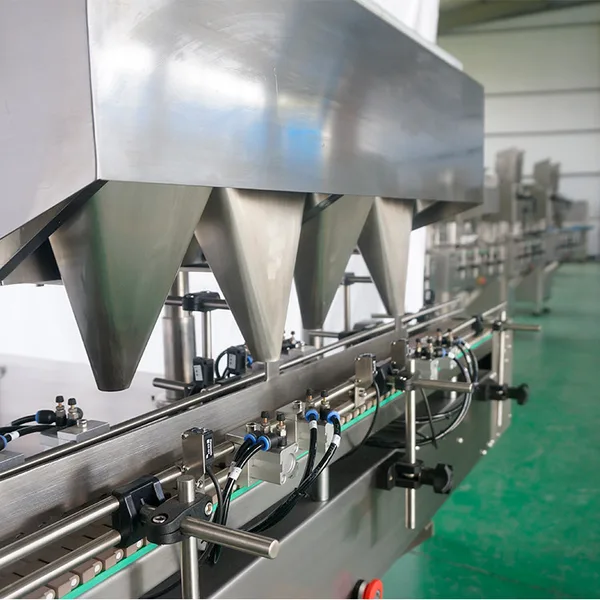

Photo show of Counting Machine



Application of Counting Machine



Counting machine is suitable for pharmaceutical, hospital, food and other industries, counting, bottling and bagging capsules, tablets, granules and other drugs or food. It is also suitable for counting, bottling, bagging and canning of other solid objects with regular shapes.
