Capsule Counting Machine
High Speed Automatic Electronic Capsule Bottling Production Line CE Certified
High Speed Automatic Electronic Capsule Bottling Production Line CE Certified Advantages of Capsule Bottling Machine 1. Wide applicability. With our original anti-dust technology, it can be used for tablets( including abnormal tablets), capsules, gels( including abnormal gels,transparent gels and opaque gels) pearls and most kind of tabloids. 2. High-intelligentce: intelligent design of each machine with interactive operating multi-language panel. 3. Can save 10~20 kinds of different operating parameters and easy to load for different products. Self-diagnose ,displ
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-32SX |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets Per Month |
Configuration and product details
Technical overview- Name
- High Speed Automatic Electronic Capsule Bottling Production Line CE Certified
- Bottle Unscrambler
- High Speed
- Counting Channel
- 32 Channels
- Desiccant Inserter Power
- 0.85KW
- Cotton Inserter Weight
- 180KGS
- Warranty
- 1 Yesr
- Capacity
- 30-80 Bottles Per Minute
- Material
- Stainless Steel
High Speed Automatic Electronic Capsule Bottling Production Line CE Certified
Advantages of Capsule Bottling Machine
1. Wide applicability. With our original anti-dust technology, it can be used for tablets( including abnormal tablets), capsules, gels( including abnormal gels,transparent gels and opaque gels) pearls and most kind of tabloids.
2. High-intelligentce: intelligent design of each machine with interactive operating multi-language panel.
3. Can save 10~20 kinds of different operating parameters and easy to load for different products. Self-diagnose ,displays errors and make alarms. Well cooperation between each machine and in the whole line.
4. High efficiency. Take purposed to operate, easy to operate, to adjust, to clean and to maintain.
5. Low working cost, low maintain cost. 3 workers will be enough to operate.
Machine Parameters of Capsule Bottling Machine
| Hopper Volume | 60L |
| Capacity | 30-80 bottles/min |
| Filling Quantity | 30-60 pcs/bottle (adjustable) |
| Bottle Size |
Diameter: 30-90mm Height:40-250mm |
| Counting Size |
Thickness: 3.5-10mm Diameter: 3.5-15mm Length: 3.5-30mm |
| Compressed air | 0.5Mpa |
| Conveyor Belt Length | 3000mm |
| Machine Weight | 1000kg |
| Machine Size L × W × H (mm) | 2200 × 1400 × 1680 |
Working Principle of Capsule Bottling Machine

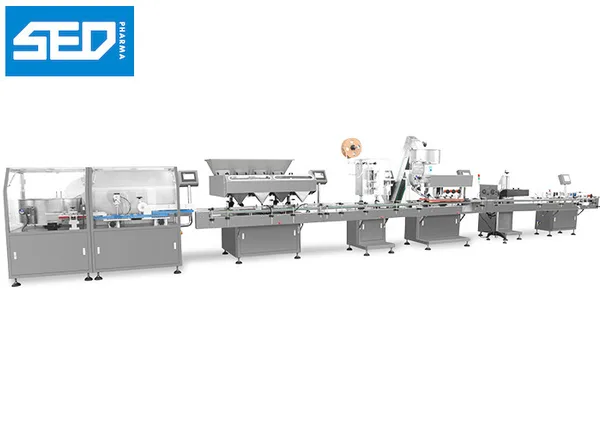

SED-32SX Electronic Pill Counting Line is the production line for tablets,capsules,soft gelatin capsules counting.
It consists High speed bottle unscrambler,electronic counting machine,desiccant inserting machine,cotton inserting machine,induction sealing machine,labeling machine,etc.The machines can be modified according to your requirements.
Products Show of Capsule Bottling Machine
