Automatic Cartoning Machine
High Speed Automatic Cartoning Machine For Cake Wheat Oats Packing
High Speed Automatic Cartoning Machine For Cake Wheat Oats Packing Product Parameters of Cartoning Machine Item Technical parameters Encasing speed 260 boxes/min Box Quality requirement 250-350g/M2[Base on carton size] Dimension range(L×W×H) (70-180)mm×(35-80)mm×(14-50)mm Leaflet Quality requirement 60-70g/M2 Unfolded leaflet specification(L×W) (80-250)mm×(90-170)mm Fold range(L×W) [1-4]Fold Compressed air Working pressure ≥0.6mpa Air consumption 160-200L/min Power supply 380V 50HZ Motor power 5kw Machine dimension(L×W×H) 6800mm×1600mm×1860mm Machine weight 3400kg Feat
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-260GZH |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 40 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets Per Month |
Configuration and product details
Technical overview- Name
- High Speed Automatic Cartoning Machine For Cake Wheat Oats Packing
- Application
- Cakes,Wheat,Oatmeal,etc
- Warranty
- 1 Year
- Voltage
- 380v/50hz
- Speed
- 260 Boxes Per Minute
- Suitable Carton Size
- (65-120)mm×(30-60)mm×(30-60)mm
- Power
- 5kw
- Dimension
- 6800mm×1600mm×1860mm
- material
- stainless steel
- key word
- Automatic Cartoning Machine
High Speed Automatic Cartoning Machine For Cake Wheat Oats Packing
Product Parameters of Cartoning Machine
| Item | Technical parameters | |
| Encasing speed | 260 boxes/min | |
| Box | Quality requirement | 250-350g/M2[Base on carton size] |
| Dimension range(L×W×H) | (70-180)mm×(35-80)mm×(14-50)mm | |
| Leaflet | Quality requirement | 60-70g/M2 |
| Unfolded leaflet specification(L×W) | (80-250)mm×(90-170)mm | |
| Fold range(L×W) | [1-4]Fold | |
| Compressed air | Working pressure | ≥0.6mpa |
| Air consumption | 160-200L/min | |
| Power supply | 380V 50HZ | |
| Motor power | 5kw | |
| Machine dimension(L×W×H) | 6800mm×1600mm×1860mm | |
| Machine weight | 3400kg | |
Feature of Cartoning Machine
1. Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.
2. No products not suction leaflet, no leaflet not suction carton.
3. Automatic detection and rejection device for lacking blister goods and leaflets.
4. Protecting automatically for overloading.
5. Stable performance , operation is easy.

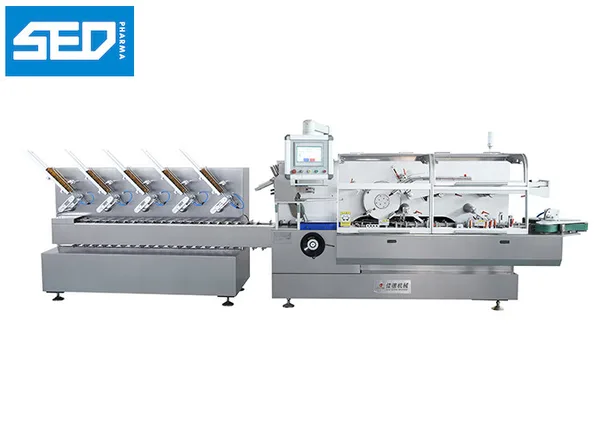

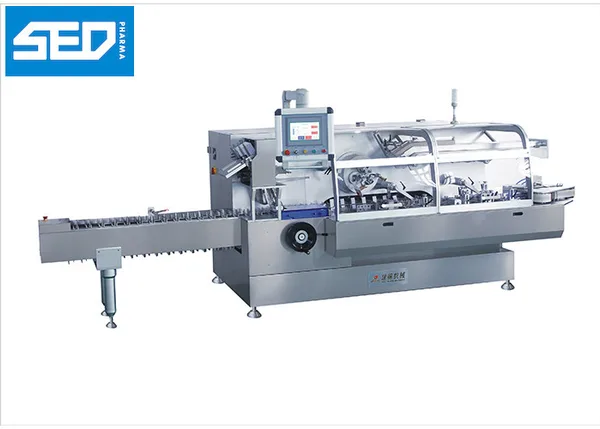

Show of Cartoning Machine
Application of Cartoning Machine
Automatic High speed continuous cartoning machine is new model which innovation design base on bringing in foreign advanced technology, also strictly according to pharmaceutical industry “GMP “standard to manufacture.
With high efficiency, high performance production capacity, leaflet folding and conveying, carton opening and forming, posterior pushing structure and related technology all reach Europe and USA standards.
